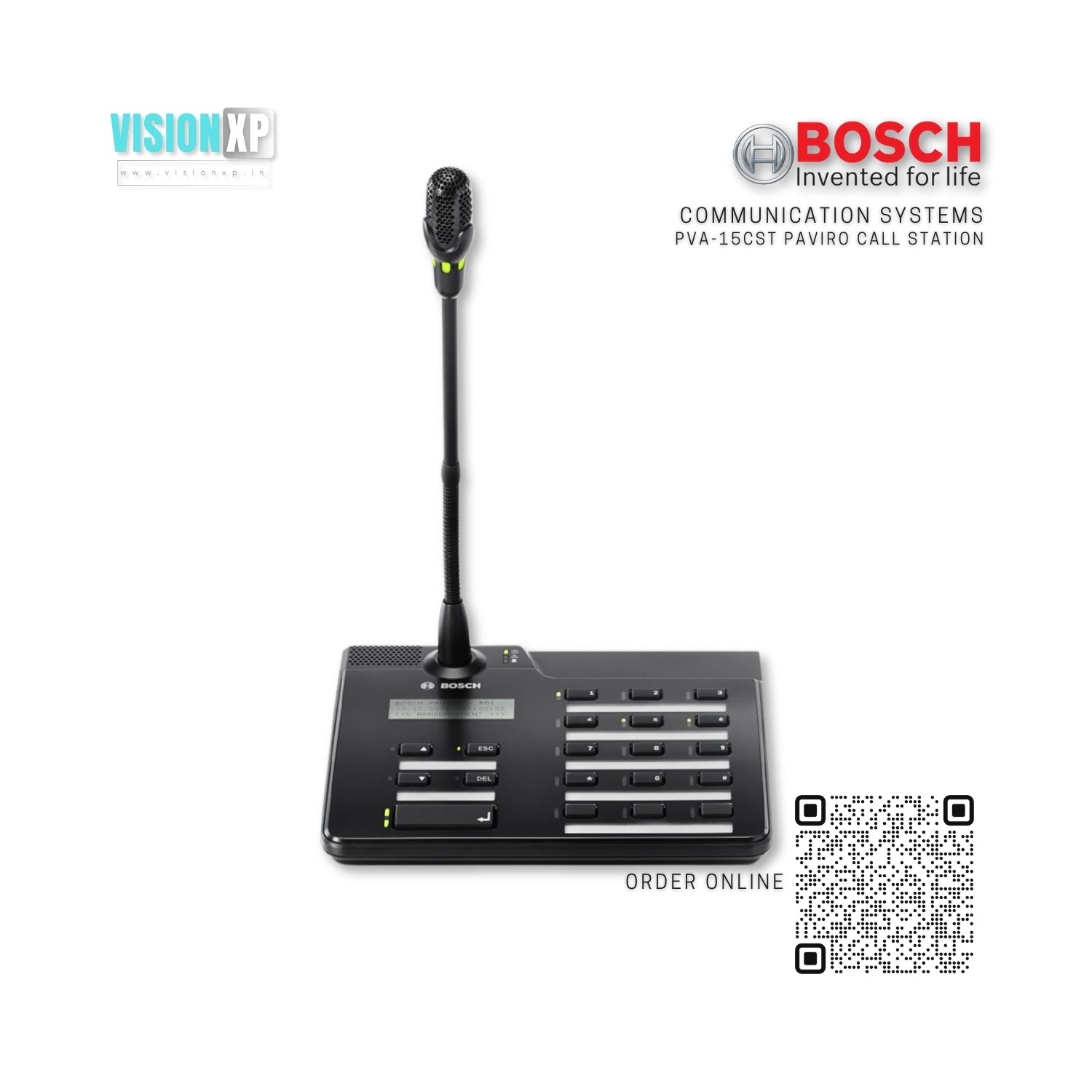

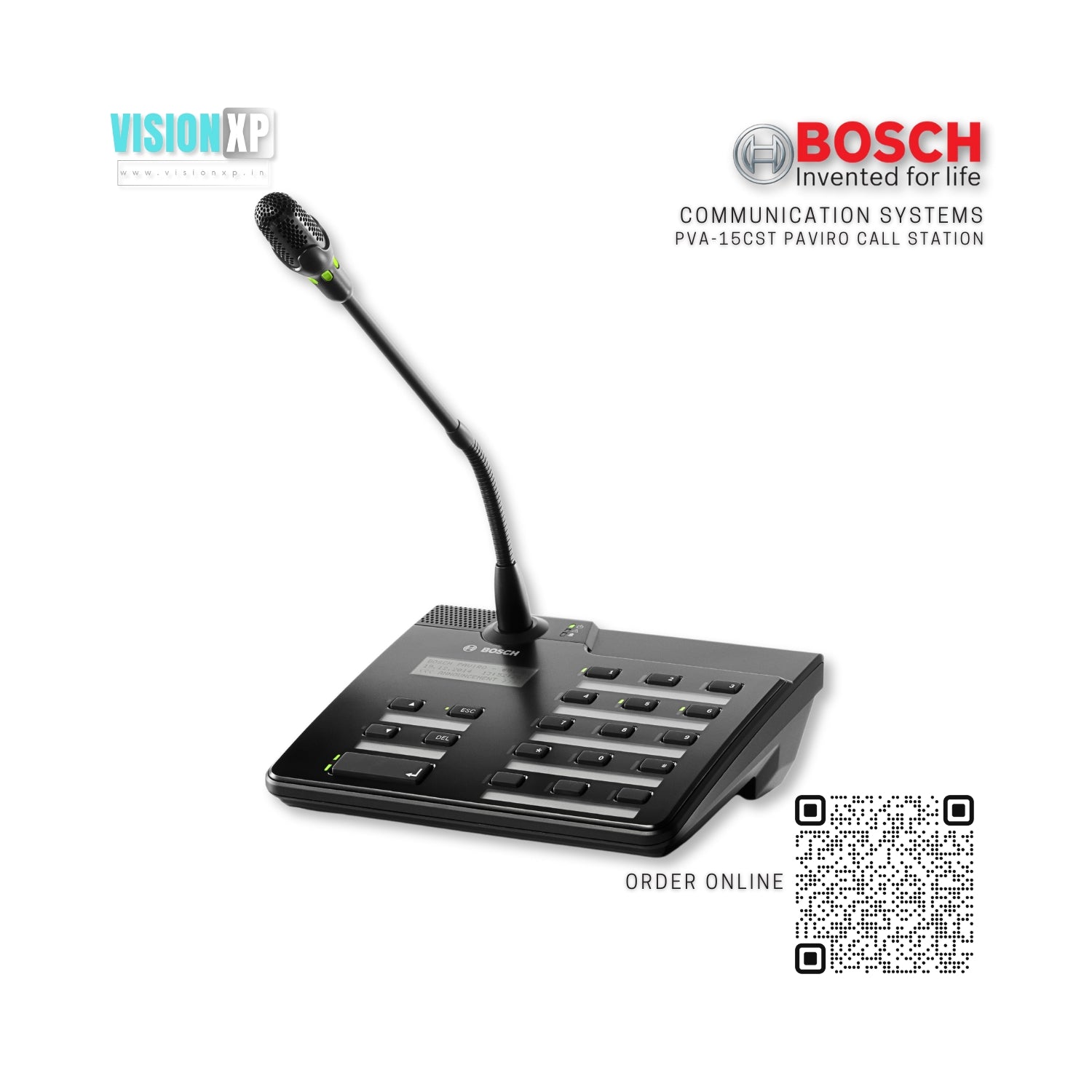

Bosch PVA-15CST Paviro Call Station
The PVA-15CST is a call station for the PAVIRO system. As standard, the call station has a gooseneck microphone with pop shield and permanent monitoring, a total of 20 buttons, an illuminated LC display, and an integrated loudspeaker. The call station can be modified to suit the user’s requirements by connecting up to five PVA-20CSE call station extensions, each with 20 customizable selection buttons.
Other properties:
- Five menu/function keys (pre-programmed) – one green or one yellow indicator light per button
- 15 selection buttons (customizable) – two indicator lights (green/red) per button
- Label with transparent covering – the label can be changed at any time
- Can be used as a standing or desk/rack flush- mounted device
- Internal monitoring with error logging – complying with all relevant national and international standards
- Easy configuration – use of the Configuration Wizard or IRIS-Net software
- For more information (particularly regarding commissioning), see the PVA-15CST operating instructions and the IRIS-Net documentation.
- Announcement LED indication on microphone cap
- 15 free programmable function keys
- Integrated numeric keypad
- Soft touch selection buttons
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
System Overview
- Selection buttons
- Button installation slots
- Voice alarm indicator light
PAVIRO Call Station
- General fault warning indicator light
- Power indicator light
- Microphone
- Loudspeaker
- Display
- ESC button
- ↑ button
- DEL button
- ↓ button
- ↵ button
|
Quantity |
Component |
|
2 |
Screws for strain relief |
|
1 |
Cover release tool |
|
1 |
Operation manual |
|
1 |
Important safety instructions |
Technical specifications
|
CAN BUS port |
10, 20, or 62.5 kbit/s, 1 ✕ RJ-45, max. length 1000 m |
|
Maximum mic input level |
-21 dBu |
|
Maximum line input level |
+4 dBu |
|
Maximum NF output level |
+12 dBu |
|
Buttons |
5 pre-programmed, 15 programmable zone/function keys |
|
Color |
RAL 9017 (traffic black) |
|
Indicator lights |
Power (green), Fault (yellow), Alarm (red) Green or yellow LED per pre- programmed menu button Green and red LED per programmable zone/function key |
|
LC display |
Back-lit LC display (122 ✕ 32 pixel) |
|
Ports |
1 CST BUS port (Control data + Audio + Power supply, RJ-45) 1 audio source (line level, phone jack) 1 microphone port (phone jack) 1 EXT OUT port (call station extension, RJ-12) |
|
DC power input |
15–58 V |
|
Maximum supply current (without call station extensions) |
Standby/Idle/Announcement/ Alert: 24 V / 80 mA / 1.92 W |
|
Maximum supply current (with 5 call station extensions) |
Standby/Idle/Announcement/ Alert: 24 V / 190 mA / 4.56 W |
|
Operating temperature |
-5 °C to 45 °C |
|
Electromagnetic environment |
E1, E2, E3 |
|
Product dimensions (Width ✕ Height ✕ Depth) |
200 ✕ 166 ✕ 66 mm (without microphone) |
|
Net weight |
0.6 kg |
|
Shipping weight |
1.1 kg |
Certifications and approvals
- IEC 60065
- EN 61000-6-3
- EN 50130-4
Parts included
|
Quantity |
Component |
|
1 |
PVA-15CST |
|
1 |
Patch cable (3 meters) |
|
7 |
Blank paper strips |
|
1 |
Strain relief (bracket) |
Ordering information
- PAVIRO Call Station
Order number PVA-15CST
Accessories
- PVA-20CSE PAVIRO Call Station Extension
Order number PVA-20CSE
- PVA-1EB PAVIRO Emergency button
Order number PVA-1EB
- PVA-1KS PAVIRO Key Switch
Order number PVA-1KS
