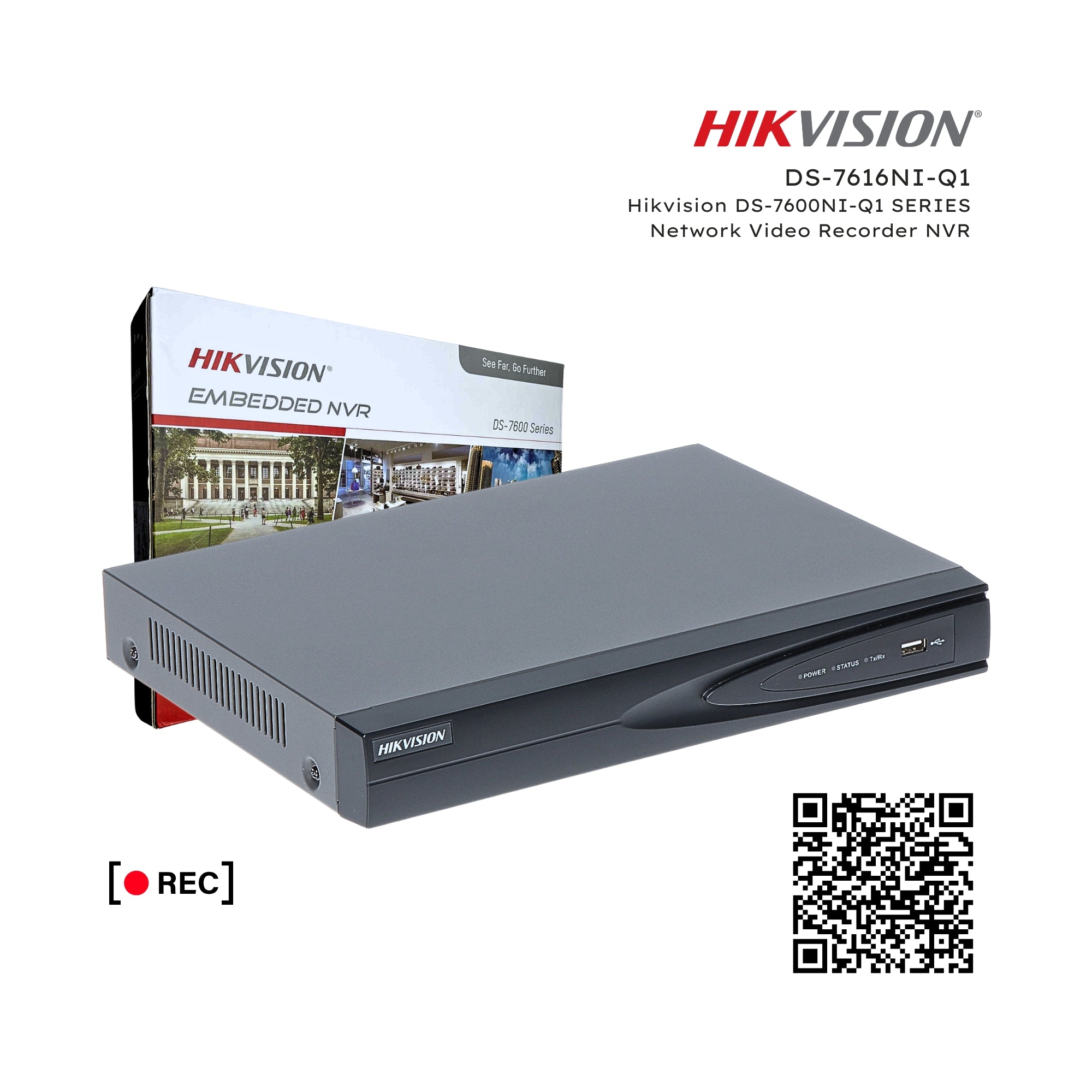

Hikvision DS-7616NI-Q1 Series 16ch 4k Nvr
Hikvision DS-7600NI-Q1 SERIES Network Video Recorder NVR
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
|
Model |
|
DS-7604NI-Q1 |
DS-7608NI-Q1 |
DS-7616NI-Q1 |
|
Video/Audio input |
IP video input |
4-ch |
8-ch |
16-ch |
|
Up to 8 MP resolution |
||||
|
Two-way audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|||
|
Network |
Incoming bandwidth |
40 Mbps |
80 Mbps |
160 Mbps |
|
Outgoing bandwidth |
80 Mbps |
|||
|
Video/Audio output |
Recording resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
||
|
HDMI output resolution |
1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output |
1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
||
|
VGA output resolution |
1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output |
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
||
|
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
|||
|
Decoding |
Decoding format |
H.265/H.265+/H.264/H.264+/MPEG4 |
||
|
Live view / Playback resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
|||
|
Synchronous playback |
4-ch |
8-ch |
16-ch |
|
|
Capability |
1-ch @ 8 MP / 4-ch @ 1080p |
|||
|
Network management |
Network protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
||
|
Hard disk |
SATA |
1 SATA interface |
||
|
Capacity |
Up to 6TB capacity for each disk |
|||
|
External interface |
Network interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
||
|
USB interface |
2 × USB 2.0 |
|||
|
General |
Power supply |
12 VDC |
||
|
Power |
≤ 18W |
|||
|
Consumption (without hard disk) |
≤ 10 W |
|||
|
Working temperature |
-10 to +55º C (+14 to +131º F) |
|||
|
Working humidity |
10 to 90 % |
|||
|
Chassis |
1U chassis |
|||
|
Dimensions (W × D × H) |
315 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
|||
|
Weight(without hard disk) |
≤ 1 kg (2.2 lb) |
|||
Features and Functions
HD Input
- H.265+/H.265/H.264/H.264+ video formats
- Connectable to the third-party network cameras
- Up to 16 IP cameras can be connected
- Recording at up to 8 MP resolution
-
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output - HDMI/VGA simultaneous output (DS-7604NI-Q1)
- HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1)
-
HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage - 1 SATA interface connectable for recording and backup
-
H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission -
1 self-adaptive 10/100/1000 Mbps network interface
Various Applications - Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Hik-Connect for easy network management
Hikvision DS-7616NI-Q1Series 16ch 4k Network Video Recorder
Specification
Hikvision Model No. : DS-7616NI-Q1
Video/Audio input
- IP video input : 16-ch, Up to 8 MP resolution
- Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
- Incoming bandwidth : 160 Mbps
- Outgoing bandwidth : 80 Mbps
Video/Audio output
- HDMI output resolution : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA output resolution : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio output : 1-ch, RCA (Linear, 1 KΩ)
Decoding
- Decoding format : H.265/H.265+/H.264/H.264+/MPEG4
- Live view / Playback resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous playback : 16-ch
- Capability : 1-ch @ 8 MP / 4-ch @ 1080p
Network management
- Network protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPTM, HTTPS
Hard disk
- SATA : 1 SATA interface
- Capacity : Up to 6TB capacity for each disk
External interface
- Network interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- USB interface : 2 × USB 2.0
General
- Power supply : 12 VDC
- Power : ≤ 18W
- Consumption (without hard disk) : ≤ 10 W
- Working temperature : -10 to +55o C (+14 to +131o F)
- Working humidity : 10 to 90 %
- Chassis : 1U chassis
- Dimensions (W × D × H) : 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
- Weight (without hard disk) : ≤ 1 kg (2.2 lb)
