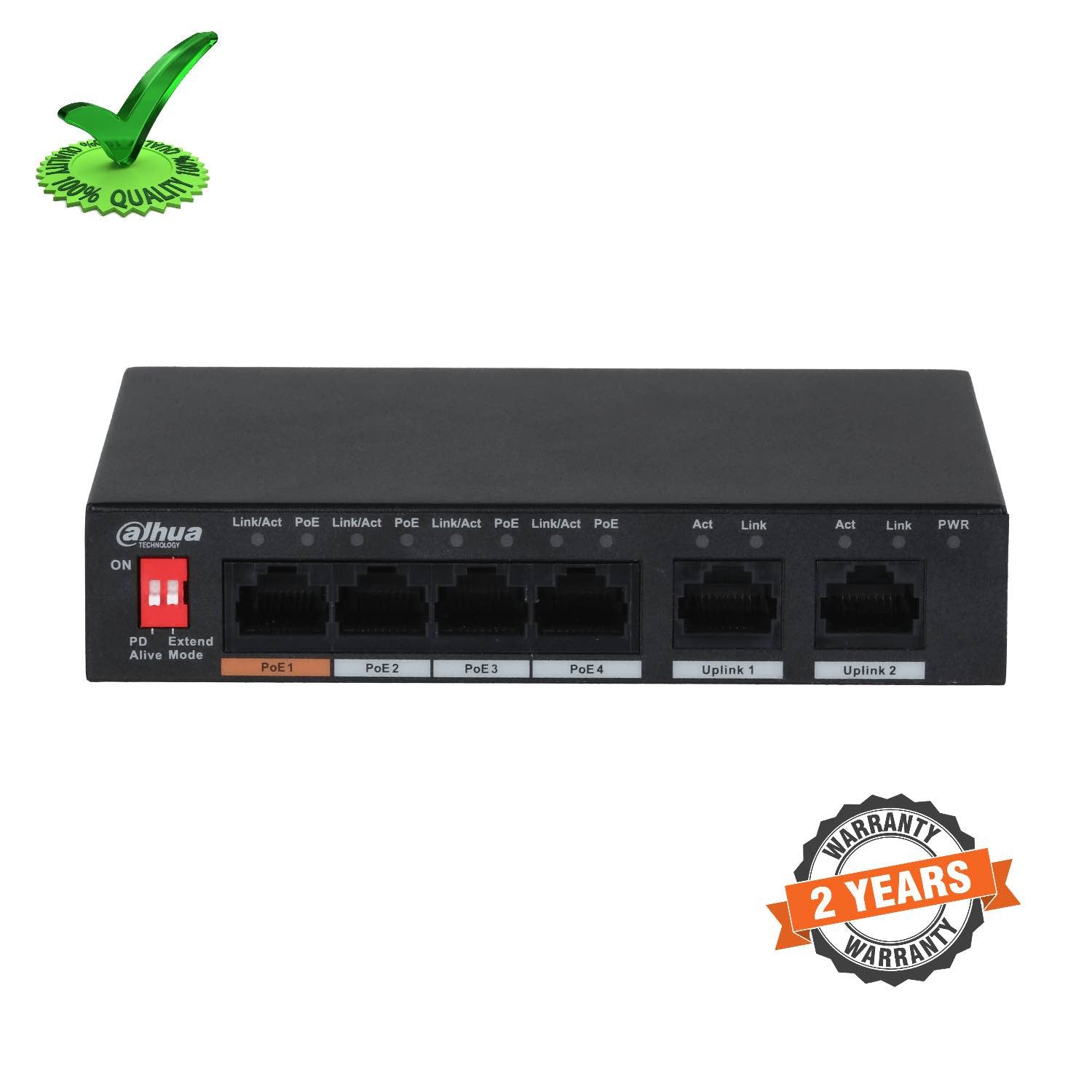

Dahua DH-PFS3006-4ET-60 6-Port 10/100Mbps Switch with 4 Poe Port

Dahua DH-PFS3006-4ET-60 6-Port 10/100Mbps Unmanaged Switch with 4 Poe Port

System Overview

• 6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports is a type of layer two commercial switch. It provides 4 10/100 Mbps Ethernet ports and 2 10/100 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.

Functions

Intelligent PoE

• Adopt PoE power consumption management strategy, and supply power to important ports first. When total power consumption exceeds the set threshold value of the system, power down the ports from large port number to small port number. Adopt smart detection to prevent outage. Supply power with ultra-wide power range, and adapt to IPC power consumption fluctuations in severe environment.

Hi-PoE 60W (Orange Port)

• Besides IEEE802.3af and IEEE802.3at, orange port also supports maximum 60W output.

Long Distance PoE

• Breaking the IEEE 100 m transmission limit, the device supports 250 m long distance PoE transmission with a more flexible networking.

All Metal Design

• With all metal design, the device has good heat dissipation, and can work in severe environments.

POE Watchdog

• Adopt the PoE watchdog function to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.

Scene

• Suitable for supermarkets, hotels, shops, corridors and other small monitoring places.

Technical Specification

Hardware

• Ethernet Port : 4
• Optical Port : 0
• Ethernet Port Rate : 100 Mbps
• Number of Business Card Slots : Port 1–4: 4 × RJ-45 10/100 M (PoE), Port 5–6: 2 × RJ-45 10/100 M (uplink)
• Power Supply : 53V DC
• Operating Temperature : –10°C to +55°C (+14°F to +131°F)
• Operating Humidity : 5%–95%
• Storage Temperature : –20°C to +70°C (–4°F to +158°F)
• Storage Humidity : 5%–95%
• Power Consumption : Idling: 1.5W, Full load: 60W

Performance

• Switching Capacity : 1.80 Gbps
• Packet Forwarding Rate : 0.89 Mpps
• Packet Buffer Size : 1 Mbit
• MAC Table Size : 2K
• Communication Standard : IEEE802.3, IEEE802.3u, IEEE802.3x

PoE

• PoE Standard : IEEE802.3af/IEEE802.3at/Hi-PoE
• PoE Power : 60W
• PoE Power Consumption Management : Yes
• PoE Pin Assignment : PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• Far Distance Mode : 250 m @10 Mbps

General

• ESD : Air discharge: 8kV, Contact discharge: 6kV
• Thunderproof : Common mode: 2kV, Differential mode: 1kV
• Net Weight : 0.3 kg (0.66 lb)
• Gross Weight : 0.9 kg (1.98 lb)
• Product Dimensions : 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")
• Packaging Dimensions : 267 mm × 239 mm × 77 mm (10.51" × 9.41" × 3.03")

Extra Information

• SKU: DHPFS30064ET60
• Warranty: 2 Years
• Brand: Dahua
• Product Type: POE
• PDF: View PDF
