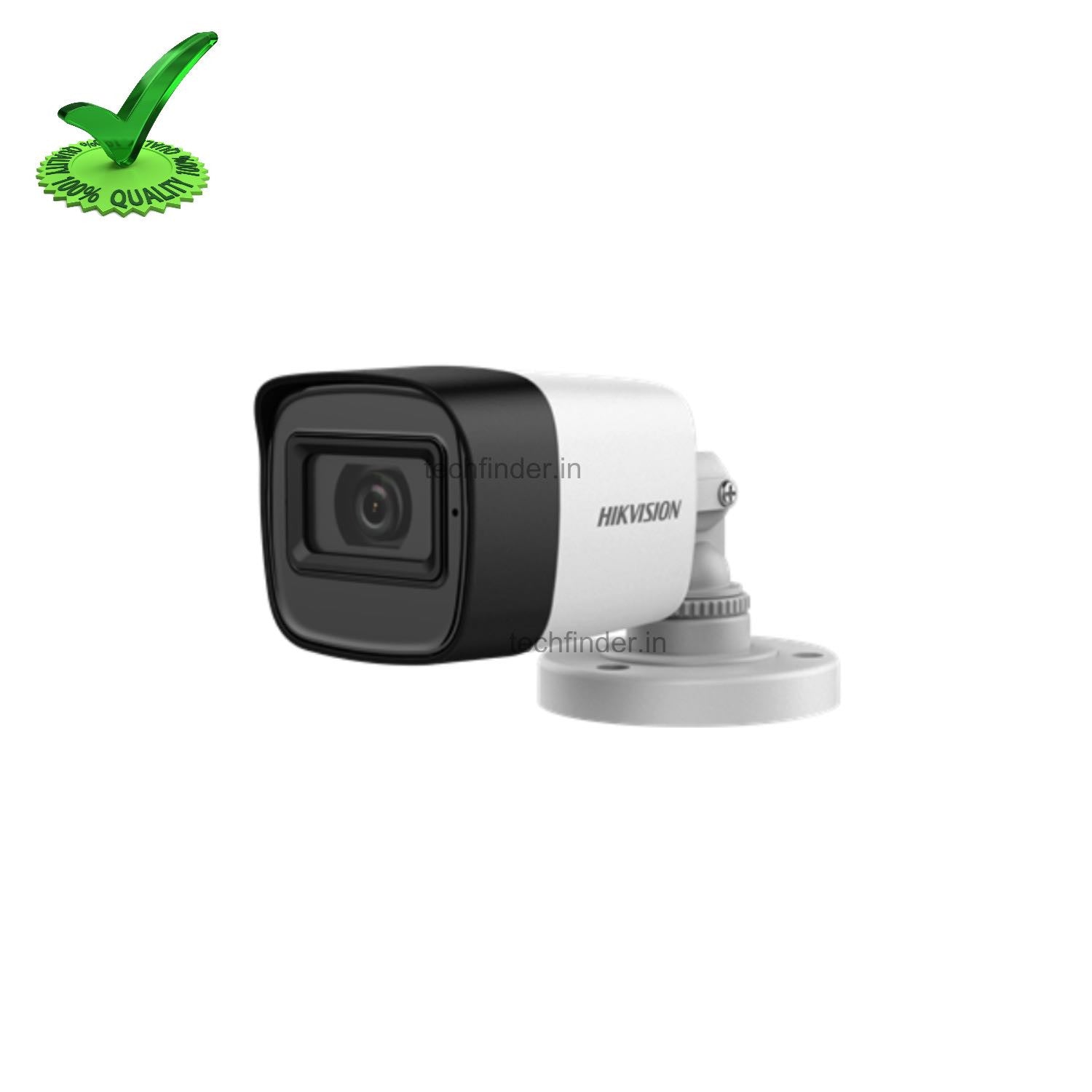

Hikvision DS-2CE16H0T-ITPFS 5MP HD Bullet Camera

Camera Specification

• Image Sensor : 5 MP CMOS
• Signal System : PAL/NTSC
• resolution: 2560 (H) × 1944 (V)
• Frame Rate : TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps, CVI: 4MP@30fps, 4MP@25fps, AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, CVBS: PAL/NTSC
• Min. illumination : 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time : PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s
• Lens : 2.8 mm, 3.6 mm, 6 mm fixed lens
• Field of View : 2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7°, 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°, 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
• Lens Mount : M12
• Day & Night : ICR
• WDR (Wide Dynamic Range) : Digital WDR
• Audio : Built-in mic
• Angle Adjustment : Pan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355°

Menu

• Image Mode : STD/HIGH-SAT
• AGC : Yes
• Day/Night Mode : Auto/Color/BW (Black and White)
• White Balance : Auto/Manual
• AE (Auto Exposure) Mode : DWDR/BLC/HLC/Global
• Noise Reduction: 2D DNR
• Language : English
• Function : Brightness, Sharpness, Mirror, Smart IR

Interface

• Video Output : Switchable TVI/AHD/CVI/CVBS

General

• Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera.
• Power Consumption: Max. 3.7 W
• Protection Level : IP67
• Material : plastic
• IR Range : Up to 25 m
• Communications : HIKVISION-C
• Dimensions : 58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
• Weight : Approx. 160 g (0.35 lb.)

Extra Information

• SKU: DS2CE16HOTITPFS
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 5 Megapixel
• Technology: Analogue
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
