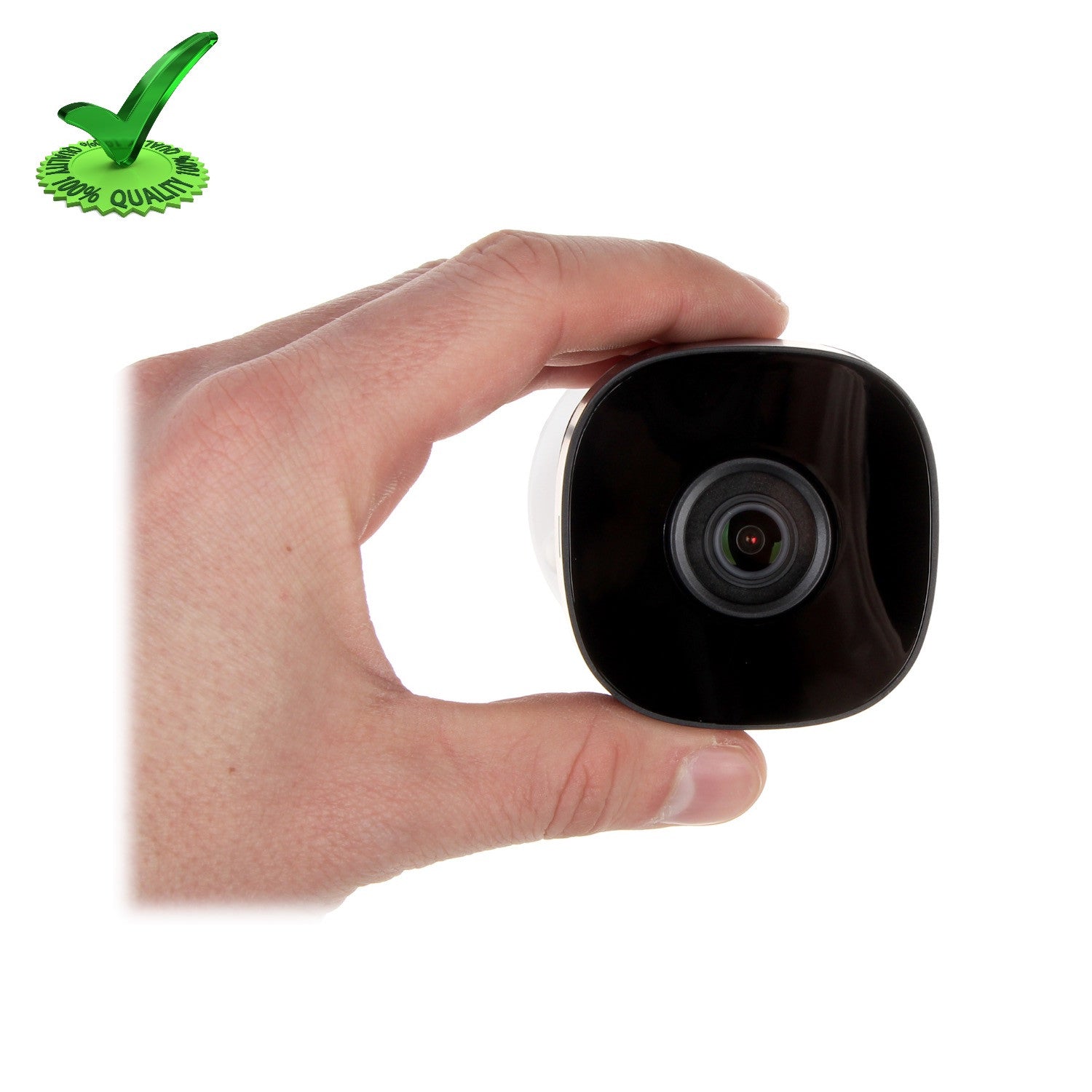

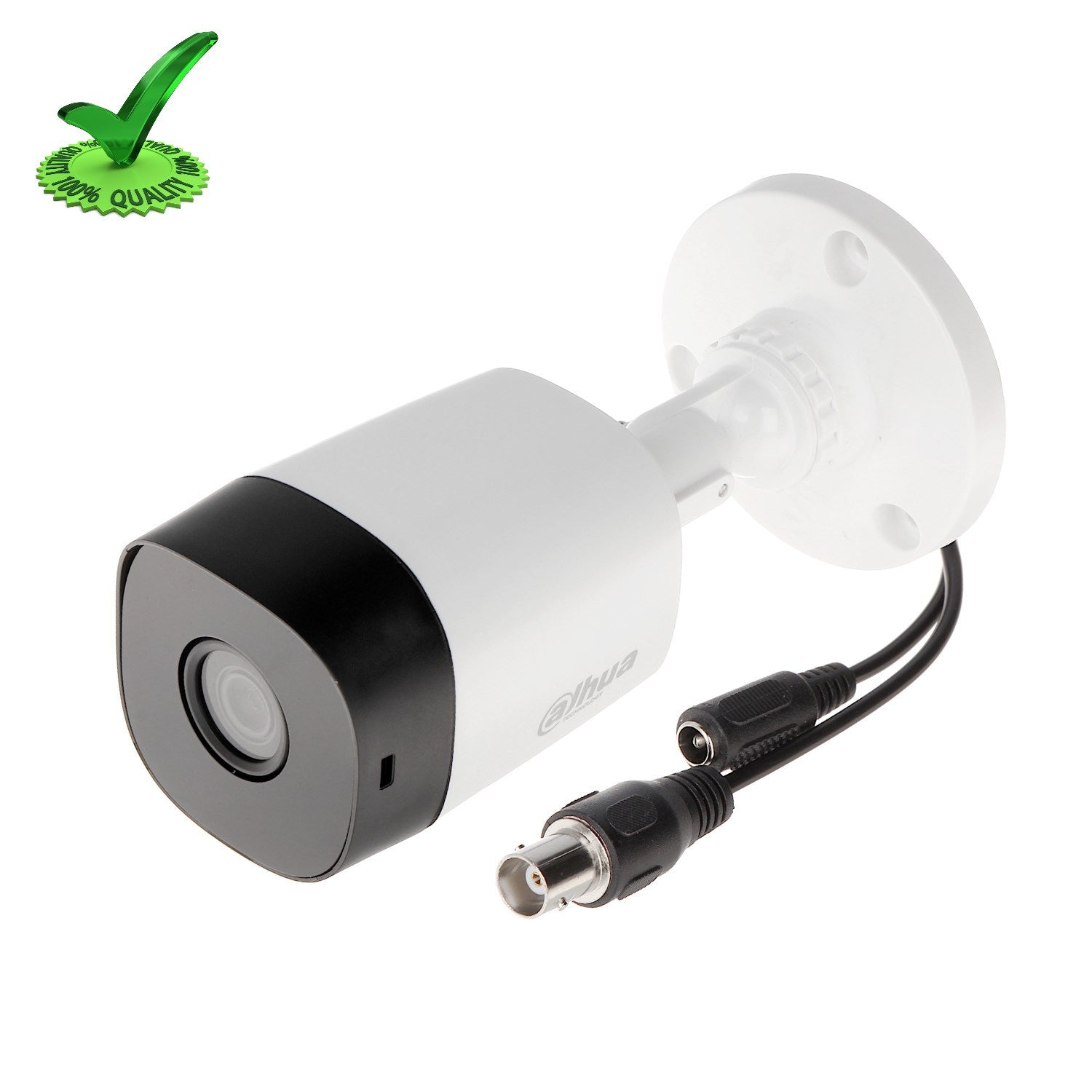

Dahua DH-HAC-B1A51-A 5MP HDCVI IR Eyeball Audio Bullet Camera

Dahua Outdoor Bullet Camera with built in Microphone

• System Overview

Cooper Series offers simple and highly cost-effective HDCVI solutions. It offers 24/7 reliable monitoring with high-quality image performance, saving both product and labor costs. It is also highly guaranteed by Dahua quality standard.

• Functions
• 4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.

• Broadcast-quality Audio

Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.

• Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700m for 5MP HD video via coaxial cable, and up to 300m via UTP cable.
*Actual results verified by real-scene testing in Dahua's test laboratory.

• Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables high definition video surveillance without the hassle of configuring a network.

• Smart Illumination

The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

• Multi-formats

The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu. This feature makes the camera to be compatible with not only XVRs but also most end users’ existing HD/SD DVRs.

• Multi-language OSD

OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

• Protection

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies)
input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Technical Specification

Camera

• Image Sensor : 1/2.7" CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Pixel : 5MP
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25–1/100000 s, NTSC: 1/30–1/100000 s
• Min. Illumination : 0.02 Lux/F2.0, 30IRE, 0 Lux IR on
• S/N Ratio : More than 65 dB
• Illumination Distance : 20 m (66 feet)
• Illuminator On/Off Control : Auto;manual

Lens

• Lens Type : Fixed lens / Fixed iris
• Mount Type : M12
• Focal Length : 3.6mm (2.8mm Optional)
• Max Aperture : F2.0
• Angle of View : 2.8 mm: 125° × 106° × 56°, 3.6 mm: 104° × 88° × 46°
• Focus Control : N/A
• Close Focus Distance : 2.8 mm: 0.8 m (2.6 ft), 3.6 mm: 1.2 m (3.9 ft)

Video

• Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080);960H (960 × 576/960 × 480)
• Frame Rate : CVI: PAL:5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC:5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL:4M@25 fps; NTSC:4M@30 fps; TVI: PAL:4M@25 fps; NTSC:4M@30 fps; CVBS: 960H;
• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Day/Night : Auto (ICR) / Manual
• OSD Menu : Multi-language
• BLC Mode : BLC / HLC / DWDR
• WDR : DWDR
• Gain Control : AGC
• Noise Reduction : 2D
• White Balance : Auto;manual
• Smart IR : Yes
• Mirror : Off/On
• Privacy Masking : Off / On (8 area, rectangle)

Audio

• Sound over Co-Oxial Cable
• Built in Mic

Certifications

• Certifications : CE (EN55032, EN55024, EN50130-4,EN60950-1, EN 62368 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Interface

• Audio Interface : N/A

Eelectrical

• Power Supply : 12V DC ±30%
• Power Consumption : Max. 2.7W (12V DC, IR on)

Environmental

• Operating Conditions : –40°C to +55°C (–40°F to +131°F) /Less than 95% RH *Start up should be done at above –40°C (–40°F)
• Storage Conditions : –40°C to +55°C (–40°F to +131°F) /Less than 95% RH
• Ingress Protection & Vandal Resistance : N/a

Construction

• Casing : Plastic
• Dimensions : φ85.4 mm × 68.8 mm (φ3.36 × 2.71")
• Net Weight : 0.09 kg (0.20 lb)
• Gross Weight : 0.14 kg (0.31 lb)

Extra Information

• SKU: DHHACB1A51A
• Warranty: 2 Years
• Brand: Dahua
• Megapixel: 2
• Technology: Analogue
• Camera Type: Bullet
• Product Type: Camera
