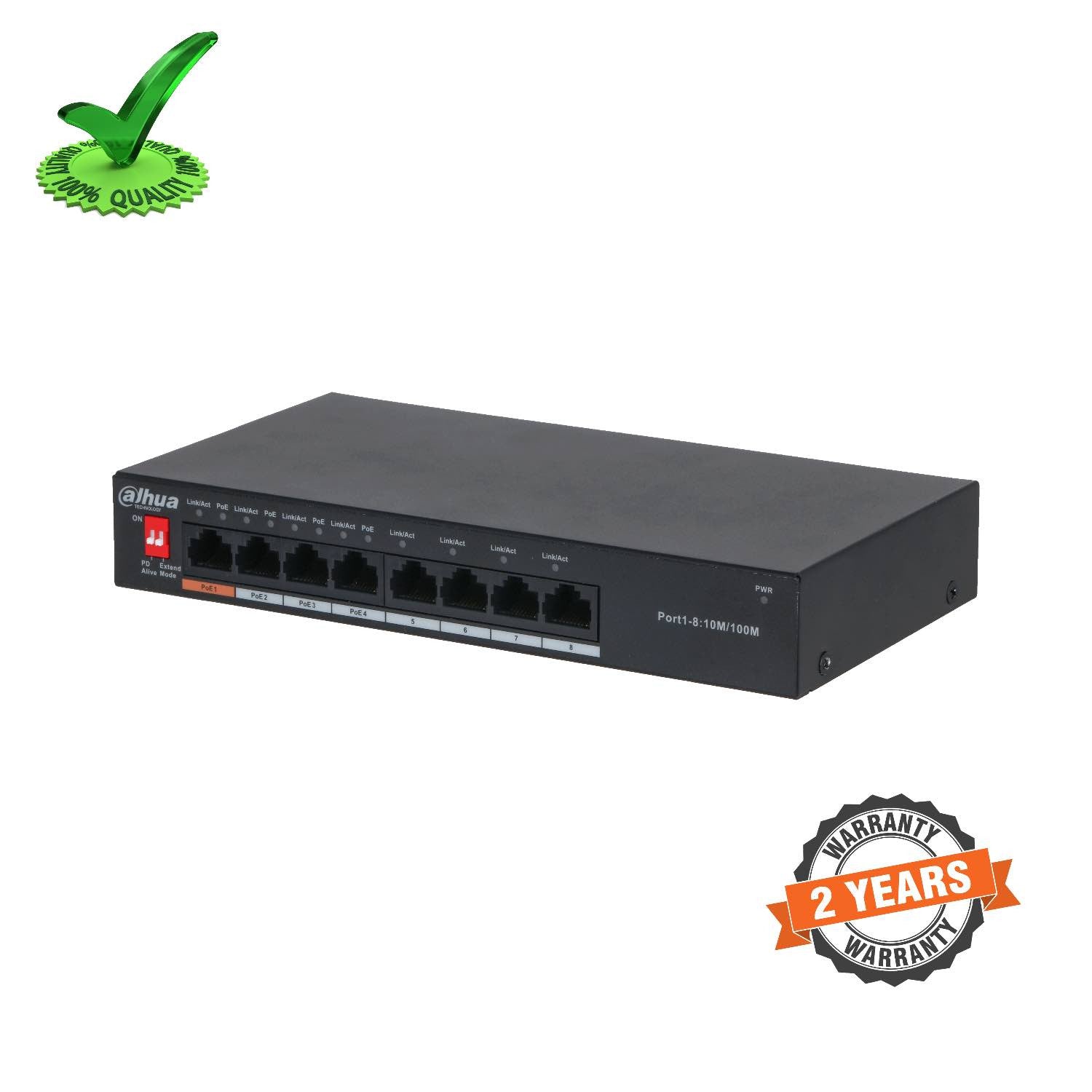

Dahua DH-PFS3008-8ET-60 8-Port Switch with 4-Port PoE

Dahua DH-PFS3008-8ET-60 8-Port Switch with 4-Port PoE

System Overview

• DH-PFS3008-8ET-60 is an unmanaged Desktop Switch with 4 × 10/100 Mbps PoE Ports. It provides 8 × 10/100 Mbps Ethernet ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). The Orange port supports the Hi-PoE standards. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.

Functions

Intelligent PoE

• Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.

Hi-PoE 60W (Orange Port)

• In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering highpower devices.

PoE Watchdog

• Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.

Long Distance PoE

• By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10 Mbps).

8-pin Assignment PoE Power Supply

• Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.

Scene

• The device is applicable for use in different scenarios, including home, office, server farm, and small mall.

Technical Specification

Hardware

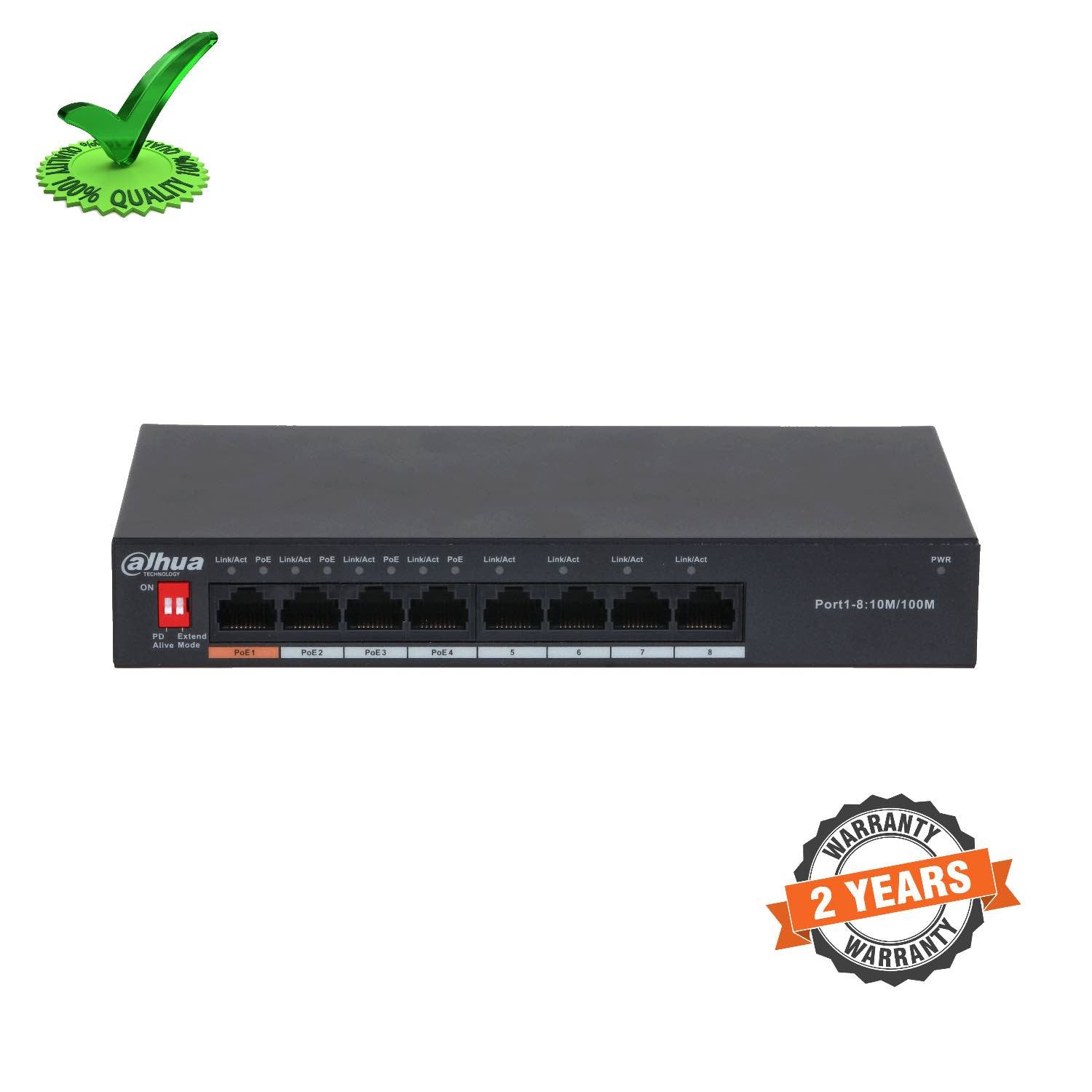

• Data Transmission Port : Port 1-4: 4 × RJ-45 10/100 Mbps (PoE), Port 5-8: 4 × RJ-45 10/100 Mbps

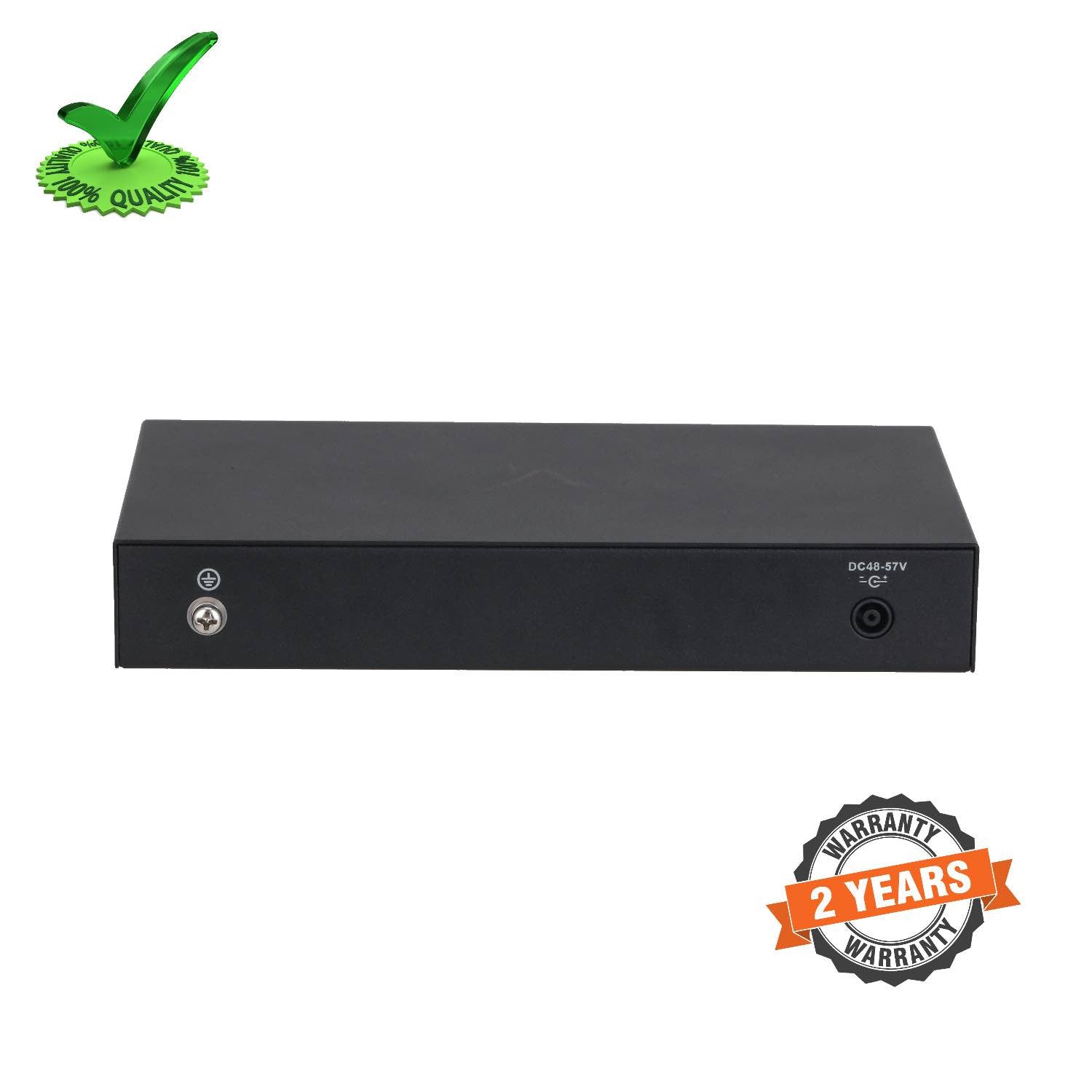

• Power Supply : 48 V–57 V DC
• Operaing Temperature : –10 °C to +55 °C (+14 °F to + 131 °F)
• Operating Humidity : 5%–95% (RH)
• Storage Temperature : –20 °C to + 70 °C (–4° F to + 158 °F)
• Storage Humidity : 5%–95% (RH)
• Power Consumption : Idling: 0.8 W
• Full load: : 60 W

Performance

• Capacity : 1.8 Gbps
• Packet Forwarding Rate : 1.19 Mpps
• Packet Buffer Memory : 768 Kbit
• MAC Table Size : 2K
• Communication Standard : IEEE802.3; IEEE802.3u; IEEE802.3x

PoE

• PoE Standard : IEEE802.3af; IEEE802.3at; Hi-PoE
• PoE Power : 60 W
• Power Consumption Management : Yes
• PoE Pin Assignment : 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• Long Distance PoE : Supports 250 m (820.21 ft)

General

• Statics Protection : Air discharge: 8 kV, Contact discharge: 6 kV
• Thunder-proof : Common mode: 4 kV, Differential mode: 2 kV
• Net Weight : 490g(1.08 lb)
• Product Dimensions : 190mm×100mm×30mm(7.48"×3.93"×1.18")(W×L×H)

Similier Model

• DH-PFS3008-8ET-60
• PFS3008-8ET-60

Extra Information

• SKU: DHPFS30088ET60
• Warranty: 2 Years
• Brand: Dahua
• Technology: IP
• Product Type: POE
• PDF: View PDF
