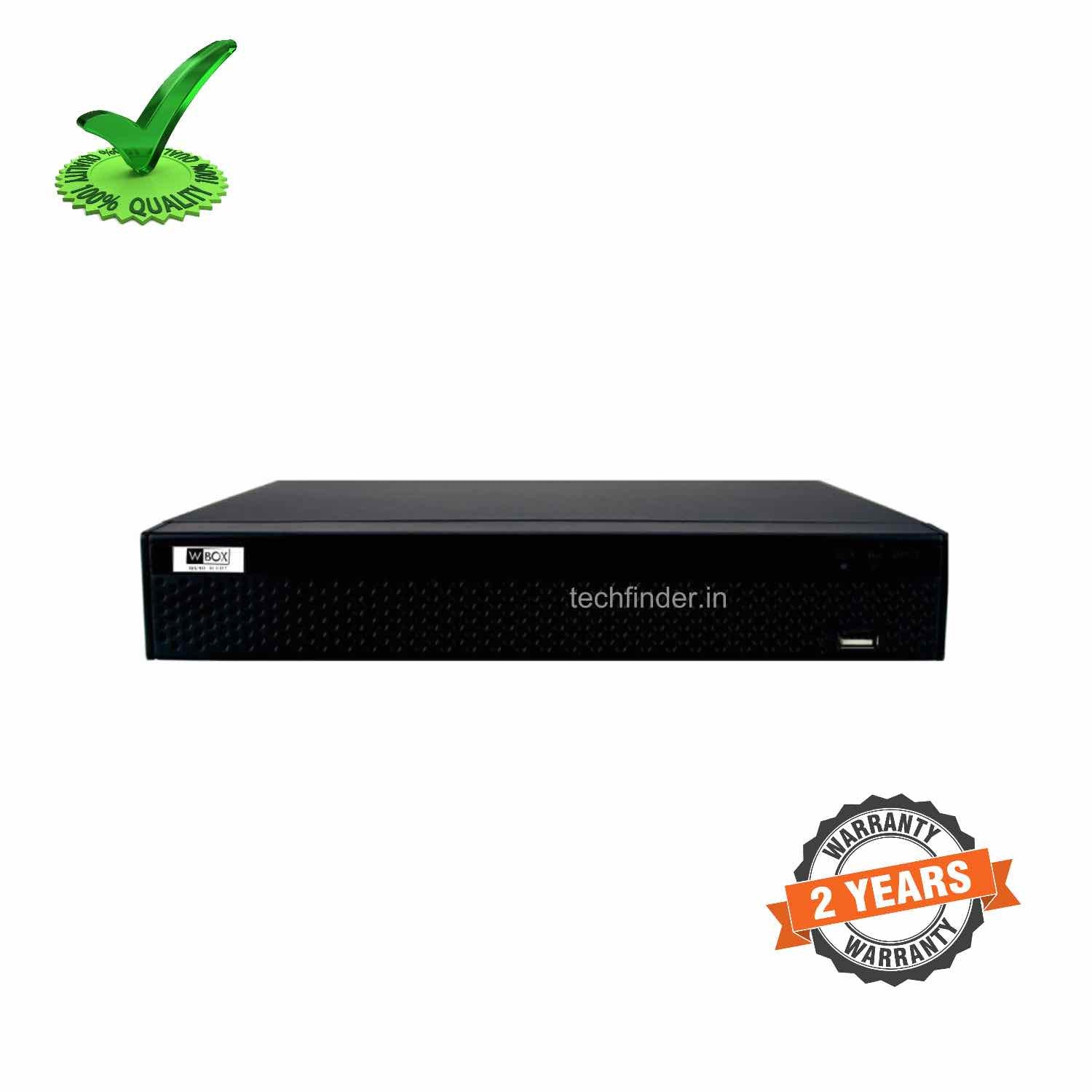

W Box WBC0E-CLDM016Y1 16Channel 2mp 720p AHD DVR

W box DVR supports multiple connectivity technology such as HDCVI, AHD, TVI, CVBS and IP to effortlessly integrate multiple cameras. WBC0E-CLDM16Y1 model supports up to 16 channels of HDCVI/AHD/TVI/CVBS inputs and maximum 16 channels IP camera, there is a mixed mode to have multiple analog and IP cameras in one 16 channel DVR. It has 16 channels split screen for local live-view and maximum 8 playback channels in pure analog. Designed as a full compatible product, W Box DVR can provide end user the simplicity of analog system, low in cost, simple installation and use of existing coaxial cable. DVR supports P2P connectivity and can be accessible from Android and I Phone app. It is ideal for a wide range of applications such as public safety, retail store, residential and education.

Specifications

• Model : WBC0E-CLDM16Y1
• Operating system : Embedded LINUX

Video

• Input : Analog: 16*2MP Analog+Network:14*Analog(2MP)+2*network(Max 8MP),12*Analog (2MP)+4*network(Max 8MP),10*Analog(2MP)+6*network(Max 8MP), 8*Analog(2MP)+8*network(Max 8MP),6*Analog(2MP)+10*network (Max 8MP),4*Analog(2MP)+12*network(Max 8MP),2*Analog(2MP)+ 14*network(Max 8MP) Network: 16*network(Max 8MP)(Total incoming bandwidth ≤80M)
• Input : 16CH BNC
• Signal Type : Analog/AHD/CVI/TVI 2.0/Network
• Output : 1 HDMI,1 VGA

Audio

• Input : 2Channel, RCA
• Output : 1 Channel, RCA

Digital Alarm

• Motion Detection : 16 Channel(max 16 Channel in pure network mode)
• Trigger Events : Recording, Email, Screen tips, Buzzer
• Email Alarm : Send Image to The Designated E-mail

PTZ

• Interface : Rs485
• Protocol : Pelco-D, Pelco-P
• Baud Rate : 110~921600
• Address : 0~255

Display

• VGA : Resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz ,1024 × 768 /60Hz
• HDMI : Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
• Display Split : 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
• Privacy Masking : 3 Rectangular Zones (Each camera)
• OSD : Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

• Video Compression : H.265+/H.265/H.264+/H.264
• Audio Compression : G711u
• Encode Resolution : Half 1080P(960×1080);720P(1280×720);960H(P:960×576/N:960×480)
• Video Quality : worst/worse/ordinary/well/best
• Record Rate : Pure IP(H.265): PAL :4k@8x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps NTSC:4k@8x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps
• Record Mode : ManualTimerMotion Detectionalarm

Playback & Backup

• Decode Capability : 4CH 1080P@25fps
• Sync Playback : Pure Analog: 16CH 1080N@15fps Mixture mode: Anolog(4*1080N@15fps, 4*1080P15fps, 4*720P@15fps , 4*960H@22fps); IPC(4*1080N@25fps, 2*2560*1440@25fps, 1*2560*1920@25fps+1*1080N@25fps, 1*1080P@25fps+1*5M@25fps, 1*3840*2160@25fps) Pure Network: 1CH 4K@25fps, 1CH 5MP@25fps, 2CH 4MP@25fps, 3CH 3M@25fps, 4CH 1080P@25fps, 4CH 960P@25fps, 4CH 720P@25fps
• Remote Playback : 4 Channel / 1Channel
• Search Mode : ALL, Channel, Manual, Time, Date, Motion Detection
• Playback Functions : Play, Pause, Stop, Fast play, Rewind
• Smart Phone Playback : 4 Channel
• Backup Mode : USB Device/Network

Network

• Interface : 1 RJ45 10M/100 Adaptive Ethernet Interface
• Network Functions : TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
• DDNS : Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
• Web Browser : IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
• CMS Software : Support Windows 7/ Windows 8/Windows 10
• Extra Stream : CIF(1~25fps)
• Smart Phone : iPhone & Android

Hard Disk Driver

• Interface Type : 1 SATA Interface
• Capacity : 1 SATA Hard Disk Interface (3.5" SATA, Up to 8TB)

General

• Language : Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
• UTC Control : YES
• USB Interface : 2 USB 2.0 Interfaces
• Power consumption : DC 12V ≤6W (Without Hard Disk)
• Working Environment : -10~55°C/10~90%
• Dimension (W×D×H) : 260 x 215 x 43(mm)
• Weight : 2kg (Without HDD)

Extra Information

• SKU: WBC0ECLDM016Y1
• Warranty: 3 Years
• Brand: W Box
• Technology: Analogue
• Product Type: DVR/XVR
