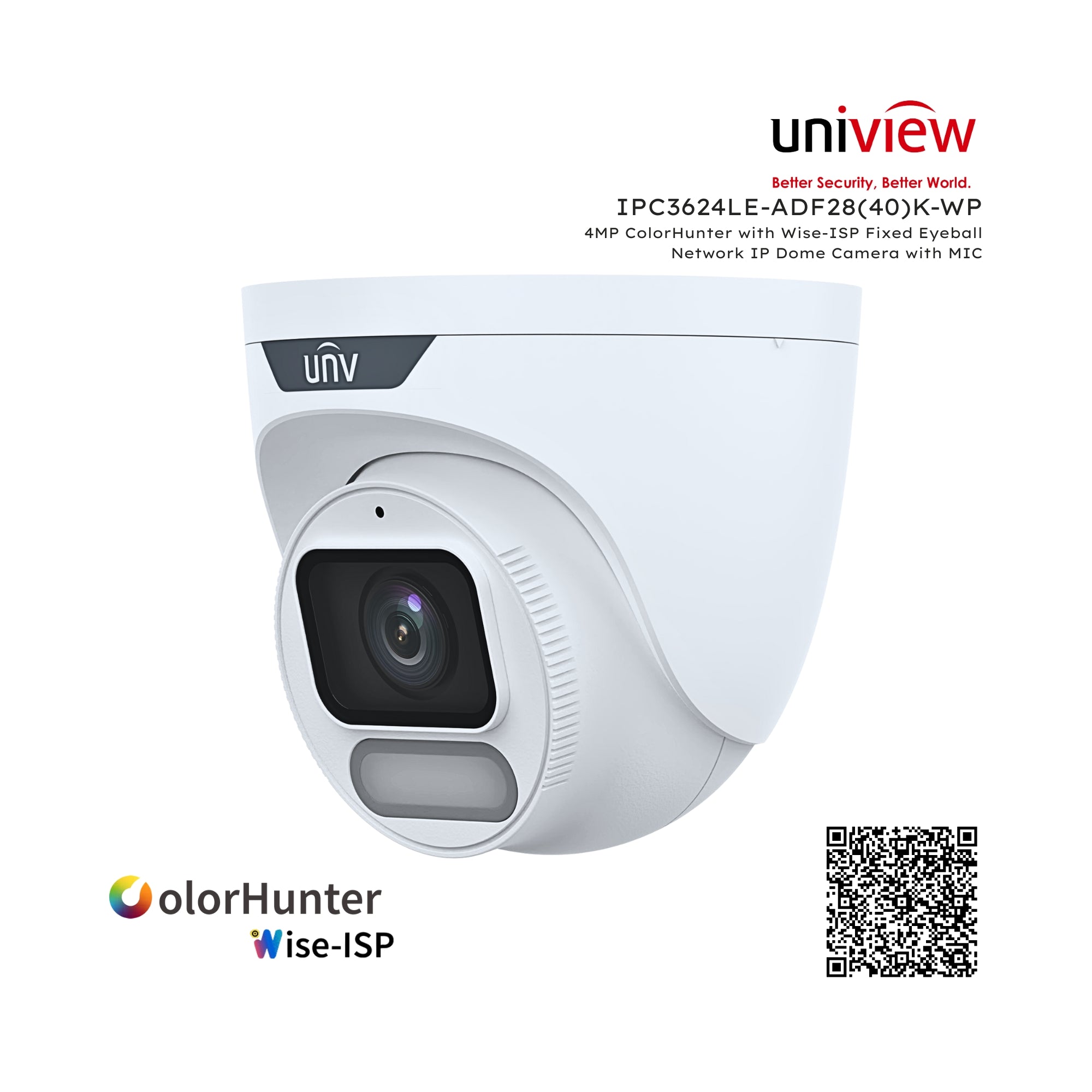

UNV Uniview IPC3624LE-ADF28(40)K-WP 4MP ColorHunter with Wise-ISP Fixed Eyeball 30mtr IR Network IP Dome Camera Built in MIC
- IPC3624LE-ADF40K-WP > 4mm Lens
- IPC3624LE-ADF28K-WP > 2.8mm Lens
Key Features
- High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
- 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter with Wise-ISP technology ensures 24-hour full-color images
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- White Light, up to 30m (98ft) warm light distance
- Supports 512 GB Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
Video
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
|
IPC3624LE-ADF28K-WP |
IPC3624LE-ADF40K-WP |
||||
|
Camera |
|||||
|
Sensor |
1/1.8 <4.0Umegapixel, progressive scan, CMOS |
||||
|
Minimum Illumination |
Colour: 0.0003lux (F1.0, AGC ON) |
||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||
|
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 75° |
Rotate: 0° ~ 360° |
||
|
WDR |
120dB |
||||
|
S/N |
>52dB |
||||
|
Lens |
|||||
|
Lens |
|||||
|
Iris |
Fixed |
||||
|
Field of View (H) |
110.4 |
89.4?Ñ |
|||
|
Field of View (V) |
60.5 |
48.2 |
|||
|
Field of View (D) |
115.2 |
94.7 |
|||
|
DORI |
|||||
|
DORI Distance |
Lens (mm) |
Detect?…m? |
Observe m ˚ |
Recognize m ˚ |
Identify m ˚ |
|
2.8 |
43.4(142.5ft) |
17.4(57.0ft) |
8.7(28.5ft) |
4.3(14.3ft) |
|
|
4.0 |
62.1(203.6ft) |
24.8(81.5ft) |
12.4(40.7ft) |
6.2(20.4ft) |
|
|
Illuminator |
|||||
|
Warm Light Range |
Up to 30m (98ft) |
||||
|
Light On/Off Control |
Auto/Manual |
||||
|
Video |
|||||
|
Video Compression |
Ultra265, H.265, H.264, MJPEG |
||||
|
H.264 code profile |
Baseline profile, Main profile, High profile |
||||
|
Frame Rate |
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
|
Video Bit Rate |
128 Kbps~6144Kbps |
||||
|
U-code |
Support |
||||
|
OSD |
Up to 4 OSDs |
||||
|
Privacy Mask |
Up to 4 areas |
||||
|
ROI |
Up to 8 areas |
||||
|
Video Stream |
Dual streams |
||||
|
Image |
|||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
|
Digital noise reduction |
2D/3D DNR |
||||
|
Smart Illumination |
Support |
||||
|
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
||||
|
Dewarping |
N/A |
||||
|
HLC |
Support |
||||
|
BLC |
Support |
||||
|
Defog |
Digital Defog |
|
Events |
|
|
Basic Detection |
Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection |
|
General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication |
|
Audio |
|
|
Audio Compression |
G.711U, G.711A |
|
Audio Bitrate |
64 Kbps |
|
Two-way audio |
N/A |
|
Suppression |
Support |
|
Sampling Rate |
8KHZ |
|
Storage |
|
|
Edge Storage |
Micro SD, up to 512GB |
|
Network Storage |
ANR, NAS(NFS) |
|
Network |
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, 802.1x, QoS, RTMP,SSL/TLS |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
|
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
|
Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
|
Client |
EZStation EZView EZLive |
|
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
|
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|
|
Interface |
|
|
Audio I/O |
N/A |
|
Alarm I/O |
N/A |
|
Serial Port |
N/A |
|
Built-in Mic |
Support |
|
Built-in Speaker |
N/A |
|
WIFI |
N/A |
|
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
|
Video Output |
N/A |
|
Certifications |
|
|
EMC |
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
|
Safety |
CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
|
Protection |
IP67 (IEC 60529) |
|
General |
|
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
|
Power consumption: Max 2.8W |
|
|
Power Interface |
Ø 5.5mm coaxial power plug |
|
Dimensions (Ø x H) |
1⁄ 18x106mm ~ T 4.2 X_ _ ˘ |
|
Weight |
0.48kg(1.06lb) |
|
Material |
Metal + Plastic |
|
Working Environment |
-30°C ~ 60°C (-22 £ & £-co&ndensingU) , u ] ] ˙ W G ı æ 9 |
|
Strorage Environment |
-30°C ~ 60°C (-22°F ~ £ & U -co,ndensiung) ] ] ˙ W G ı æ 9 Z , |
|
surge protection |
4KV |
|
Reset Button |
Support |
