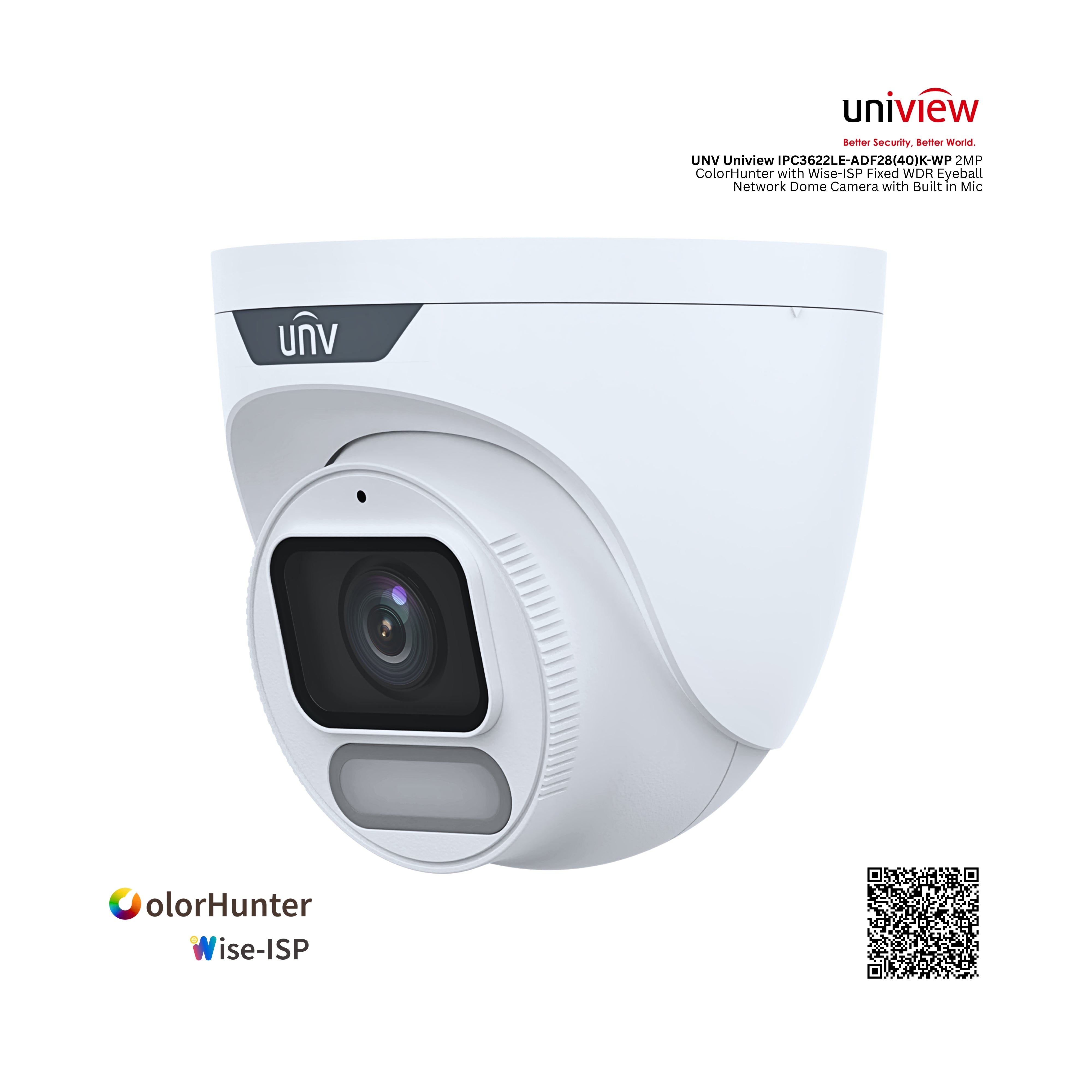

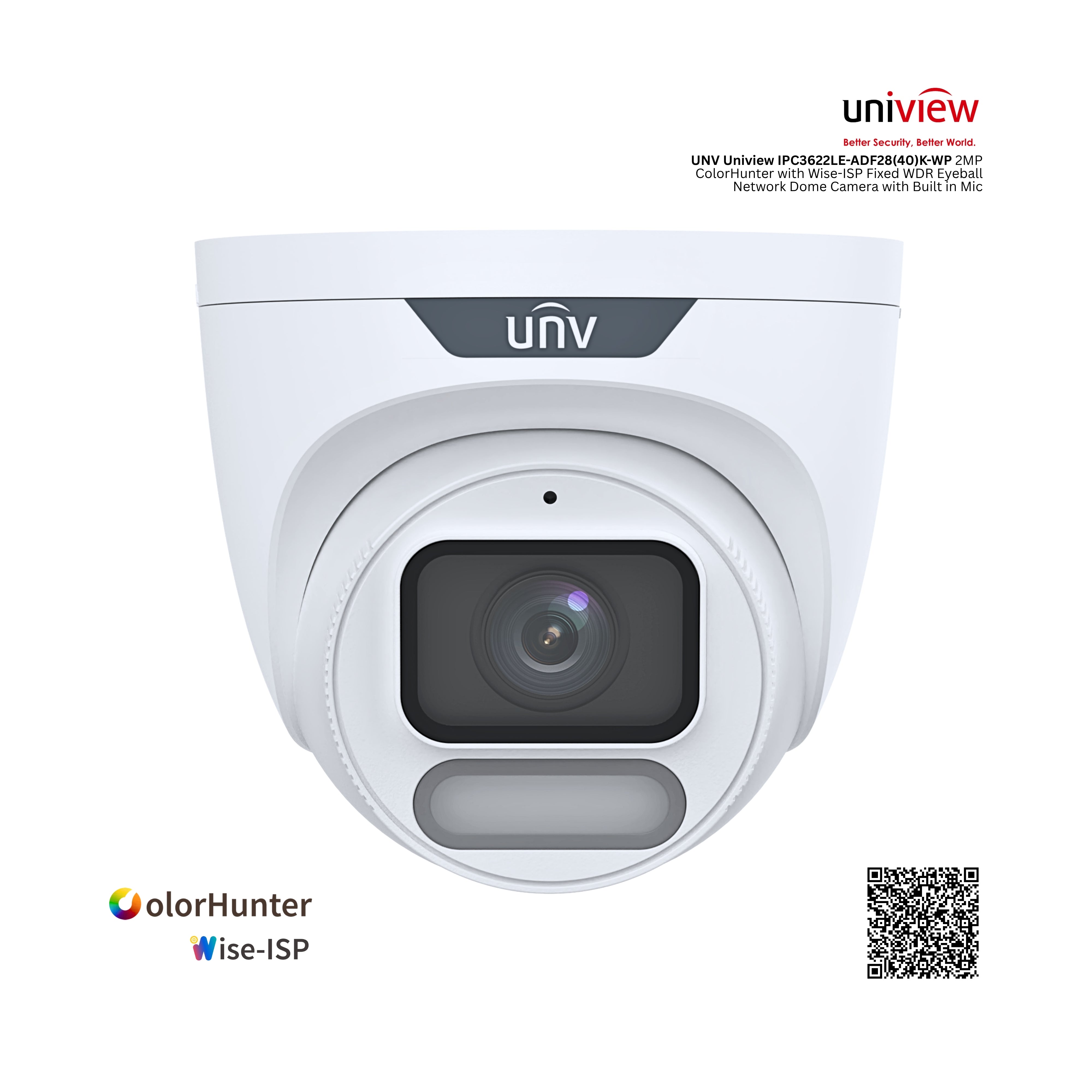

UNV Uniview IPC3622LE-ADF28(40)K-WP 2MP ColorHunter with Wise-ISP Fixed WDR Eyeball Network Dome Camera with Built in Mic
- 2.8mm Lens : UNV Uniview IPC3622LE-ADF28K-WP 2MP ColorHunter with Wise-ISP Fixed WDR Eyeball Network Dome Camera with Built in Mic
- 4mm Lens : UNV Uniview IPC3622LE-ADF40K-WP 2MP ColorHunter with Wise-ISP Fixed WDR Eyeball Network Dome Camera with Built in Mic
Key Features
- High quality image with 1080P, 1/2.7" CMOS sensor and F1.0 large aperture lens
- 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
- Ultra 265, H.265, H.264, MJPEG
- Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
- 120 dB true WDR technology enables clear image in strong light scene
- Supports 9:16 corridor mode
- Built-in mic
- White light, up to 30 m (98.4 ft.) warm light distance
- MicroSD, up to 512 GB
- IP67 protection
- Supports PoE power supply
- 3-axis
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
|
Model |
IPC3622LE-ADF28K-WP |
IPC3622LE-ADF40K-WP |
|
Camera |
||
|
Max Resolution |
2 MP |
|
|
Sensor |
1/2.7" CMOS |
|
|
Min. Illumination |
Color: 0.0003 Lux (F1.0, AGC ON) |
|
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
|
Adjustment Angle |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
|
|
S/N |
>52 dB |
|
|
WDR |
120 dB |
|
|
Lens |
||
|
Focal Length |
2.8 mm |
4.0 mm |
|
Iris Type |
Fixed |
|
|
Iris |
F1.0 |
|
|
Field of View (H) |
99.0° |
85.4° |
|
Field of View (V) |
53.0° |
47.5° |
|
Field of View (D) |
118.0° |
98.5° |
|
Lens Type |
Fixed |
|
|
DORI |
||
|
DORI Distance (Lens) |
2.8 mm |
4 mm |
|
DORI Distance (Detect) |
45.0 m (147.6 ft.) |
64.3 m (211.0 ft.) |
|
DORI Distance (Observe) |
18.0 m (59.1 ft.) |
25.7 m (84.3 ft.) |
|
DORI Distance (Recognize) |
9.0 m (29.5 ft.) |
12.9 m (42.3 ft.) |
|
DORI Distance (Identify) |
4.5 m (14.8 ft.) |
6.4 m (21.0 ft.) |
|
Illuminator |
||
|
Supplemental Light |
Warm light |
|
|
Illumination Distance (Warm Light) |
30 m (98.4 ft.) |
|
|
Light On/Off Control |
Auto/Manual |
|
|
Video |
||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
|
H.264 Code Profile |
Baseline profile, Main profile, High profile |
|
|
Frame Rate |
Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
|
|
Video Bit Rate |
128 Kbps to 6144 Kbps |
|
|
U-code |
Support |
|
|
OSD |
Up to 4 OSDs |
|
|
Privacy Mask |
Up to 4 areas |
|
|
ROI |
Support |
|
|
Video Stream |
Dual streams |
|
|
Image |
||
|
White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
|
Digital Noise Reduction |
2D/3D DNR |
|
Smart Illumination |
Support |
|
Flip |
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
|
Dewarping |
N/A |
|
HLC |
Support |
|
BLC |
Support |
|
Defog |
Digital defog |
|
Events |
|
|
Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
|
General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
|
Intelligent |
|
|
Smart Intrusion Prevention (Lite) |
Intrusion, crossline detection (both detection are based on human body and vehicle detection) |
|
Audio |
|
|
Audio Compression |
G.711U, G.711A |
|
Audio Bitrate |
64 Kbps |
|
Two-way Audio |
N/A |
|
Suppression |
Support |
|
Sampling Rate |
8 kHz |
|
Storage |
|
|
Edge Storage |
MicroSD, up to 512 GB |
|
Network Storage |
ANR, NAS (NFS) |
|
Network |
|
|
Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
|
User/Host |
Up to 32 users, 2 user levels: administrator and common user |
|
Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
|
Client |
EZStation, APP |
|
Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
|
Interface |
|
|
Audio I/O |
N/A |
|
Alarm I/O |
N/A |
|
Serial Port |
N/A |
|
Built-in Mic |
Support |
|
Built-in Speaker |
N/A |
|
WIFI |
N/A |
|
Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
|
Video Output |
N/A |
|
Certification |
|
|
EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
|
Safety |
CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
|
Protection |
IP67 (IEC 60529) |
|
General |
|
|
Power |
DC 12 V±25%, PoE (IEEE 802.3af) |
|
Power Consumption |
Max. 2.6 W |
|
Power Interface |
Ø5.5 mm coaxial power plug |
|
Dimensions |
Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H) |
|
Weight |
0.47 kg (1.04 lb.) |
|
Material |
Metal + Plastic |
|
Working Environment |
-30 to 60 (-22 to 140 ), Humidity: 95% RH (non-condensing) |
|
Storage Environment |
-30 to 60 (-22 to 140 ), Humidity: 95% RH (non-condensing) |
|
Surge Protection |
4 KV |
|
Reset Button |
Support |
|
Web Client Language |
13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
