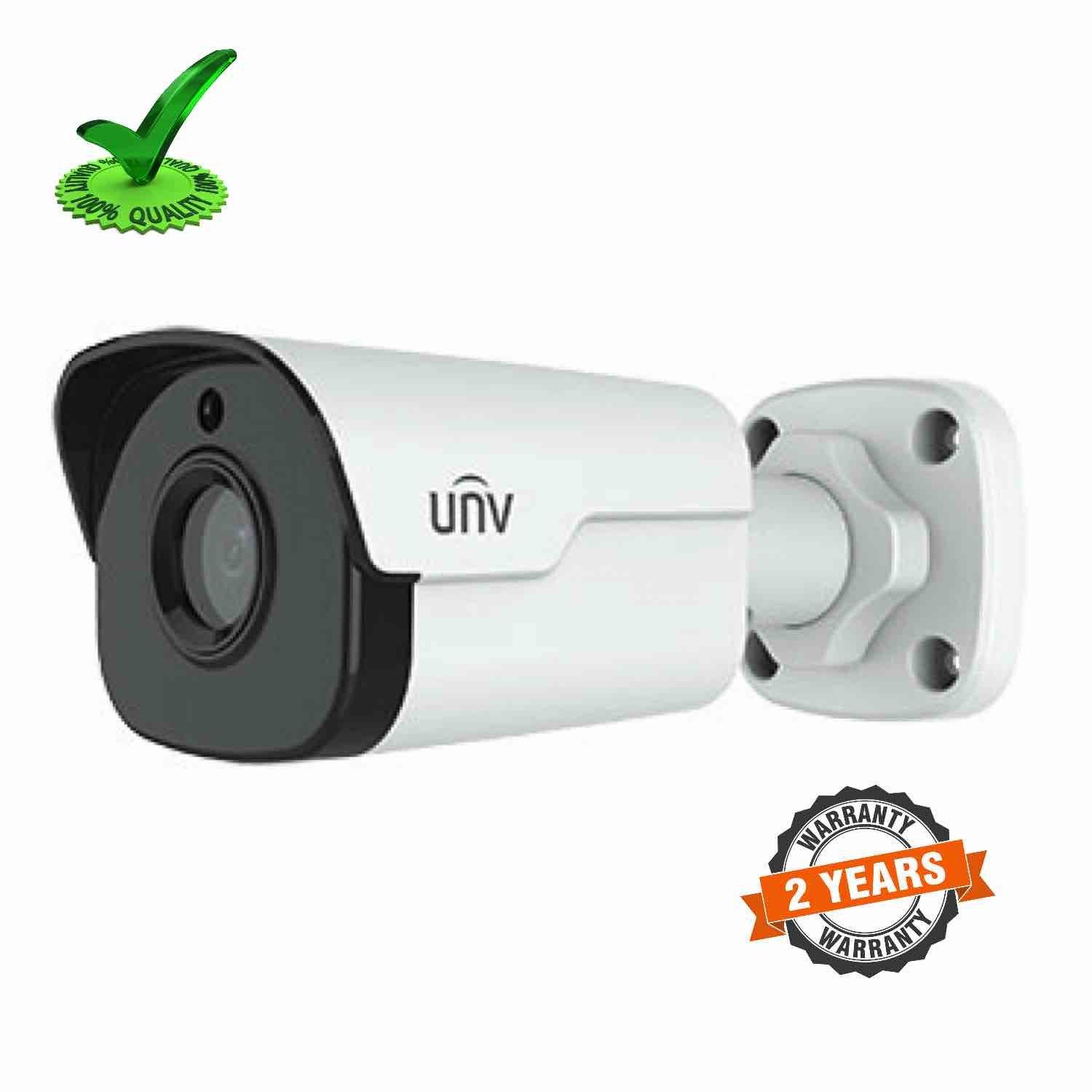

Uniview IPC2124SR3-DPF36(60) 4MP Network Bullet Camera

IPC2124SR3-DPF36 : 3.6mm@F2.0 / Angle of View (H) :  86.4°

IPC2124SR3-DPF60 : 6.0mm@F2.0 / Angle of View (H) :  49.9°

Camera

• Sensor : 1/3", 4.0 megapixel, progressive scan, CMOS
• Lens : 3.6mm@F2.0
• Angle of View (H) : 86.4°
• Adjustment angle : Pan: 0°~ 360° | Tilt: 0°~ 90° | Rotate: 0°~ 360°
• Shutter : Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination : Colour: 0.03Lux (F2.0, AGC ON) 0Lux with IR on
• Day/Night : IR-cut filter with auto switch (ICR)
• S/N : >55dB
• IR Range : Up to 30m (98ft) IR range
• wavelength : 850nm
• IR On/Off Control : Auto/Manual
• Defog : Digital Defog
• WDR : 120dB

Video

• Video Compression : Ultra 265, H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main Profile, High Profile
• Frame Rate : Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps
• Video Bit Rate : 128 Kbps~16 Mbps
• 9:16 Corridor Mode : Supported
• OSD : Upto8OSDs
• Privacy Mask : Up to 8 areas
• ROI : Up to 8 areas
• Motion Detection : Up to 4 areas


• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction : 2D/3D DNR
• Smart IR : Support
• Flip : Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping : Support
• HLC : Support
• BLC : Support

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration : ONVIF (Profile S, Profile T), API
• Client : EZStation | EZView | EZLive
• Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Network : 1 RJ45 10M/100M Base-TX Ethernet
• Certifications : CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15

General

• Power : DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 6W
• Dimensions (L × W × H) : 157.3 × 62.4 × 63mm (6.2” × 2.5” × 2.5”)
• Net Weight : 0.45kg (0.99lb)
• Material : Front cover:plastic Body:metal Bracket:metal Bottom plate:metal
• Working Environment : -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment : -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• surge protection : 2KV
• Ingress Protection : IP67
• Reset Button : Supported

Extra Information

• SKU: IPC2124SR3DPF36
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 4
• Technology: IP
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
