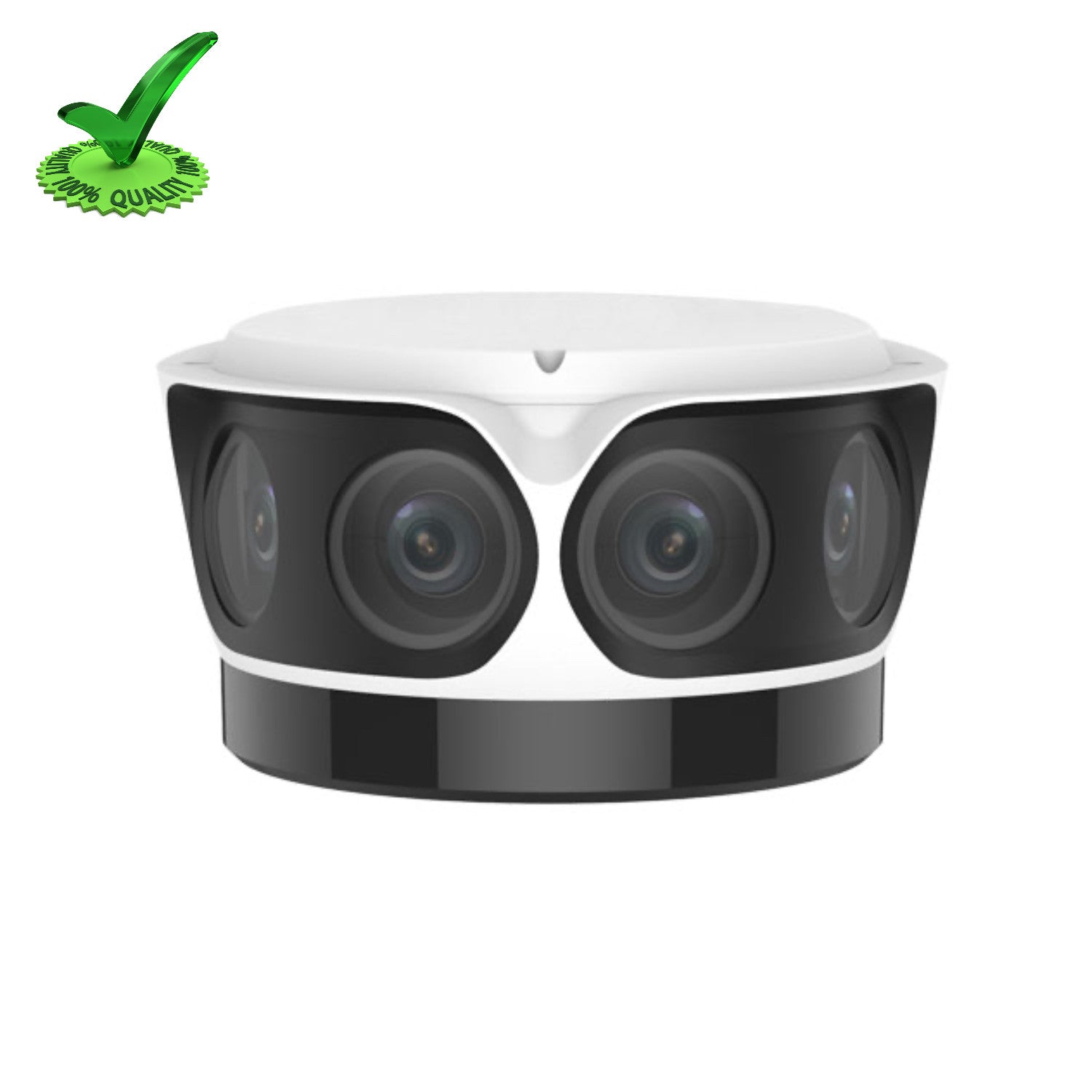

Uniview IPC8542ER5-DUG 4K IP Camera

Specifications

Camera

• Sensor : 1/1.8" progressive scan, 2.0 megapixel, CMOS
• Lens : 4×4.2mm lens
• Adjustment angle : Pan: -90°~90° Tilt: -45°~60°
• Shutter : Auto/Manual, shutter time: 1 s ~ 1/100000 s
• Minimum Illumination : Colour: 0.002lux (F1.8,AGC ON) 0lux with IR
• Iris : F1.8
• Day/Night : IR-cut filter with auto switch (ICR)
• S/N : >55 dB
• IR Range : UP to 50m (164ft)
• Defog : Digital Defog
• WDR : 120dB

Video

• Video Compression : Ultra H.265,H.265, H.264, MJPEG
• Frame Rate : Main Stream: 4096×1800:Max. 30 fps;  Sub Stream: 1920×832:Max. 30 fps;  Third Stream: 1280×560: Max. 30 fps
• HLC : Supported
• BLC : Supported
• OSD : Up to 8 OSDs
• Privacy Mask : Up to 8 areas
• ROI : Up to 8 areas

Smart

• General Function : Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP  Authentication, User Authentication

Audio

• Audio Compression : G.711
• Two-way Audio : Supported
• Suppression : Supported
• Sampling Rate : 8KHz

Storage

• Edge Storage : Micro SD, up to 256 GB
• Network Storage : ANR

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,  SNMP,QoS
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API

Interface

• Audio I/O : 1 Input: impedance 35 kΩ; amplitude 2 V *p-p] 1 Output: impedance 600 Ω; amplitude 2 V [p-p]
• Alarm I/O : 2/1
• Network : 1*100M/1000M Base-FX SFP + 2*10M/100M/1000M Base-TX Ethernet

General

• Power : AC24V±25%/DC24V support 18V-48V Power consumption: 45W MAX
• Dimensions : 259mmx211mmx115mm（(10.2”×8.3”×4.5”)）
• Weight : 2.4kg(5.3lb)
• Working Environment : –40°C ~ +70°C (-40°F ~ 158°F), Humidity:10%~95% RH(non-condensing)
• Ingress Protection : IP67
• Reset Button : Supported

Extra Information

• SKU: IPC8542ER5DUG
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 4K
• Technology: IP
• Camera Type: Special Camera
• Product Type: Camera
• PDF: View PDF
