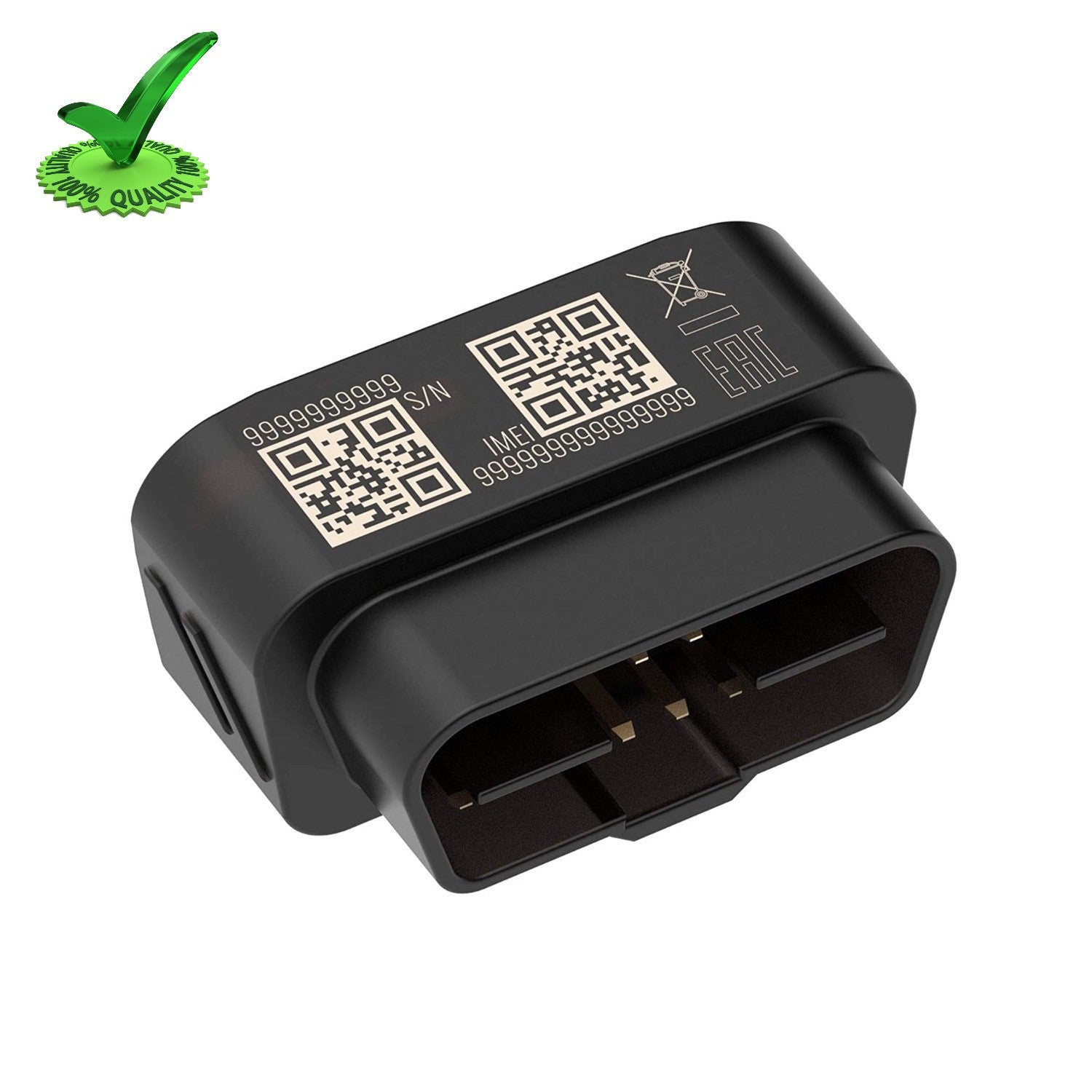

Teltonika FMB003 GPS Plug Vehicle Tracker with Bluetooth

• FMB003
• ADVANCED PLUG AND TRACK DEVICE WITH BLUETOOTH

FMB003 is ultra-small plug and play device dedicated to OBD applications of next generation. Main feature of FMB003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. More to that, device comes with supported vehicles and data list, so you need to guess no more, now you know what data you can read from specific vehicle.It is a perfect tracker for a wide range of use cases - including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and others.

• Device supports various BLE 4.0 sensors, beacons, hands-free headset, firmware and configuration update via Bluetooth, expanding its already rich set of features.

FMB003 - setting new standard in OBD tracking!

• Our smallest GNSS tracker for rich connected car applications
• List of vehicles with available OEM parameters to be read
• Crash detection according to accelerometer data
• Supported vehicles and data list
• Bluetooth for external devices and Low Energy sensors
• Standard OBDII data reading from vehicle ECU

Module

• Name : Teltonika TM2500
• Technology : GSM/GPRS/GNSS/BLUETOOTH

GNSS

• GNSS : GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver : 33 channel
• Tracking sensitivity : -165 dBM
• Position accuracy : < 2.5 CEP
• Velocity accuracy : < 0.1m/s (within +/- 15% error)
• Hot start : < 1 s
• Warm start : < 25 s
• Cold start : < 35 s

Cellular

• Technology : GSM
• 2G bands : Quad-band 850/900/1800/1900 MHz
• Data transfer : GPRS Multi-Slot Class 12(up to 240 kbps)
• Data support : SMS (text/data)

Power

• Input voltage range : 12 – 30 V DC with overvoltage protection
• Back-up battery : 3.7 V 45 mAh

Bluetooth

• Specification : 4.0 + LE
• Supported peripherals : Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support

Physical specification

• Dimensions : 52.6 x 29.1 x 26 mm (L x W x H)

Interface

• Connection : OBDII Socket
• GNSS antenna : Internal High Gain
• GSM antenna : Internal High Gain
• USB : 2.0 Micro-USB

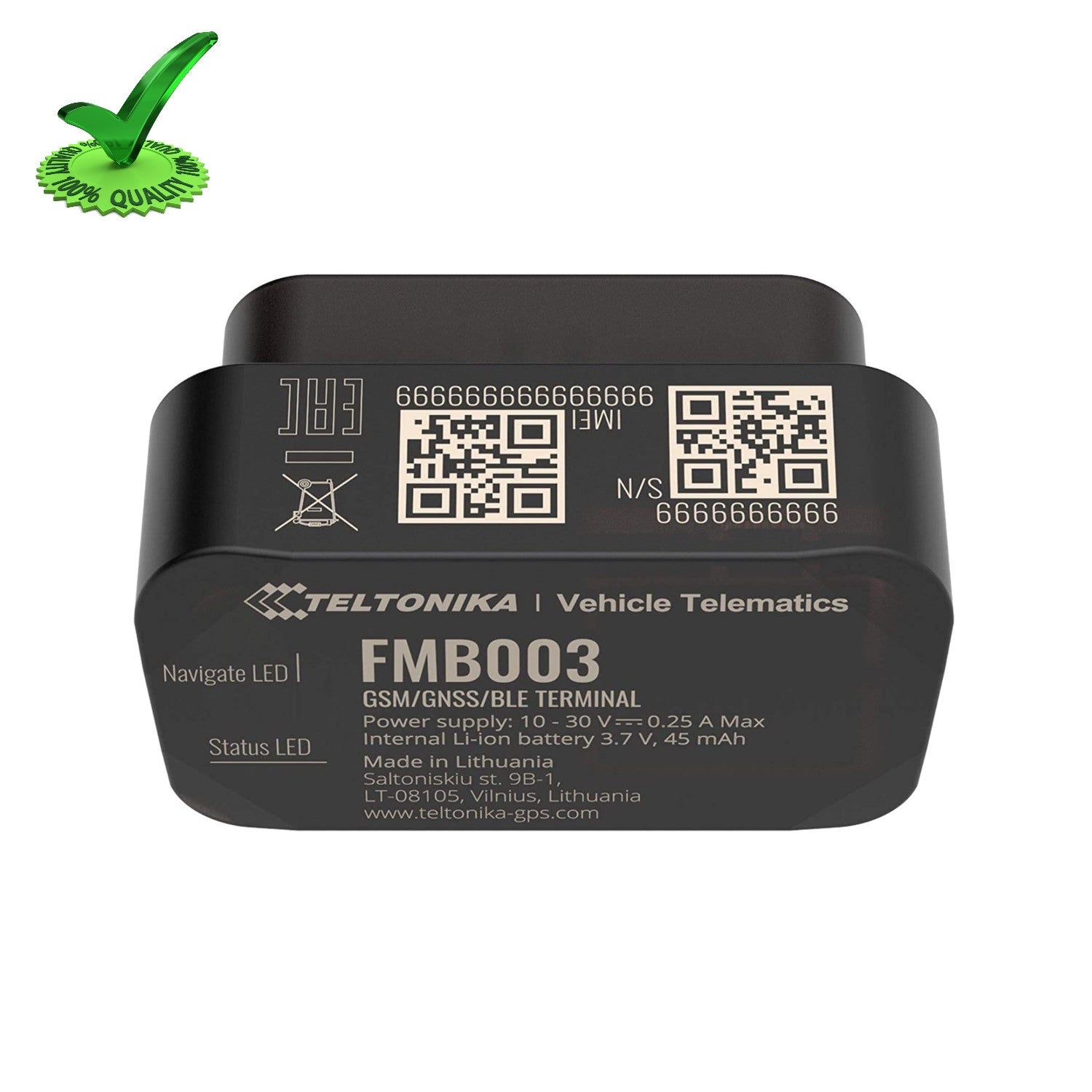

• LED indication : 2 status LED lights
• SIM : Nano-SIM

OBD Interface

• Data : HS CAN, MS CAN, SW CAN, K-line
• Data reading : OEM Fuel level, odometer and up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (fast init, 10.4 kbaud)
• ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) ISO 14229 (UDS)
• J2819 (VW TP2.0)

Operating environment

• Operating temperature (without battery) : -40 °C to +85 °C
• Storage temperature (without battery) : -40 °C to +85 °C
• Operating humidity : 5% to 95% non-condensing
• Ingress Protection Rating : IP41
• Battery charge temperature : +10 °C to +45 °C
• Battery discharge temperature : -20 °C to +60 °C
• Battery storage temperature : -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months

Features

• Sensors : Accelerometer
• Scenarios : Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
• Sleep modes : GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update : FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
• SMS : Configuration, Events, Debug
• GPRS commands : Configuration, Debug
• Time Synchronization : GPS, NITZ, NTP
• Fuel monitoring : OBDII, OEM fuel level
• Ignition detection : Accelerometer, External Power Voltage, Engine RPM

Extra Information

• SKU: FMB003
• Warranty: 2 Years
• Brand: Teltonika
• Product Type: GPS Tracker
• PDF: View PDF
