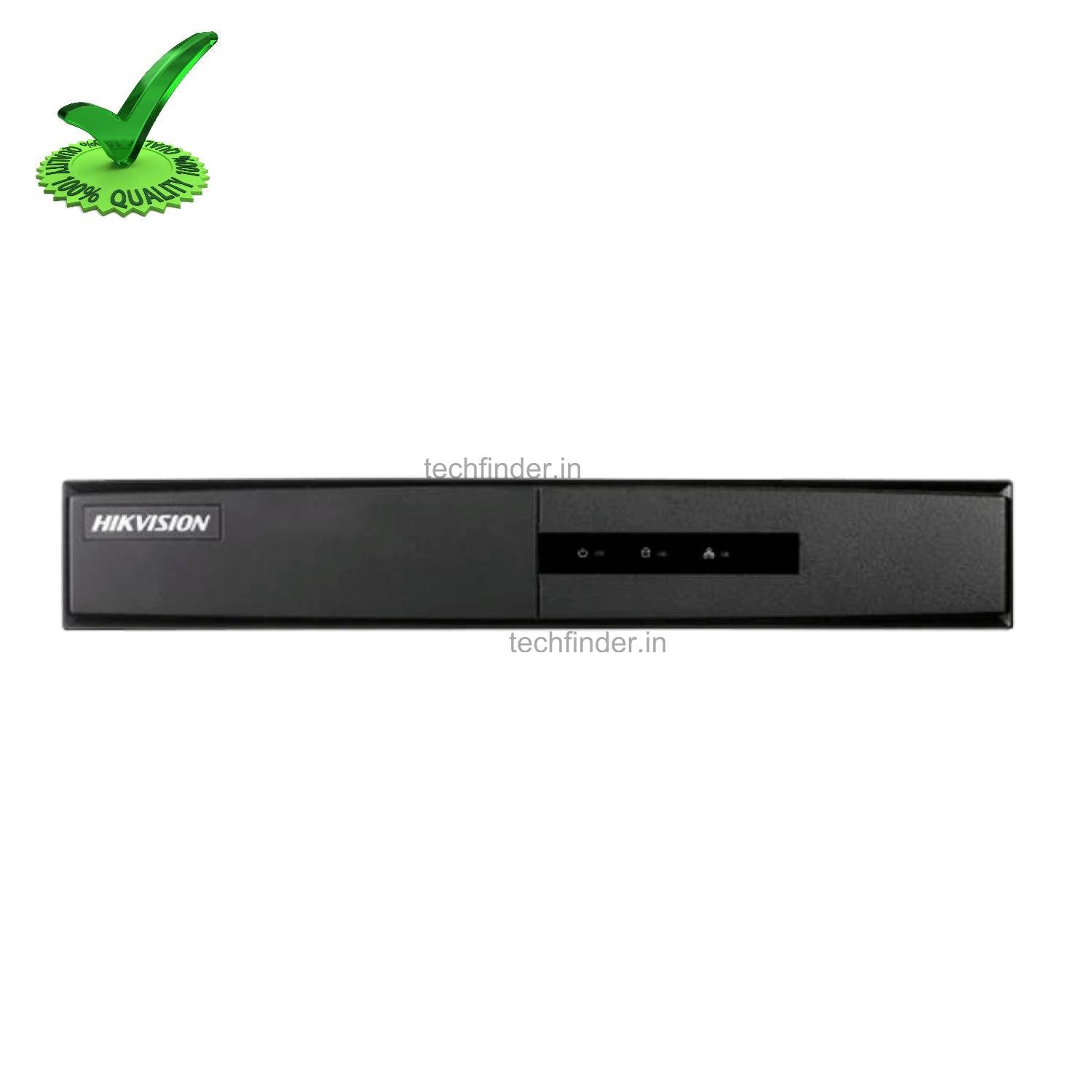

Hikvision DS-7W08NI-Q1/8P 8Ch NVR

Features and Functions

• Video Input and Transmission
• Connectable to the third-party network cameras
• Up to 8 network cameras can be connected

Compression and Recording

• H.265+/H.265 compression effectively reduces the storage space and costs
• Full channel recording at up to 4 MP resolution
• HD Video Output
• HDMI/VGA output at 1080p resolution

Storage and Playback

• 1-ch playback at 4 MP resolution or 2-ch at 1080p resolution
• 1 SATA hard disk can be connected with 6TB capacity

Smart Function

• Supports line crossing and intrusion detection
• Smart search for the selected area in the video; and smart playback to improve the playback efficiency
• One-key operation: automatically search, modify and add IP cameras after device is activated

Network & Ethernet Access

• Hik-Connect for easy network management
• 100 Mbps Ethernet network interface
• 4/8 independent 100 Mbps built-in switch network interfaces

Available Model

• DS-7W04NI-Q1/4P
• DS-7W08NI-Q1/8P

Video input

• IP video input :  4-ch, 8-ch, Up to 4 MP resolution

Network

• Incoming bandwidth : 40 Mbps 60 Mbps
• Outgoing bandwidth : 60 Mbps

Video output

• Recording : resolution 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• HDMI/VGA output : resolution 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz

Decoding

• Decoding format : H.265+/H.265/ H.264+/H.264
• Live view / Playback resolution : 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback : 4-ch, 8-ch
• Capability : 1-ch @ 4 MP / 2-ch @ 1080p

Network management

• Network protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™

Hard disk

• SATA : 1 SATA interface
• Capacity : Up to 6TB capacity for each disk

External interface

• Network interface : 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
• USB interface : 2 × USB 2.0

POE Interface

• Interface : 4, RJ-45 10/100 Mbps, self-adaptive Ethernet interface, 8, RJ-45 10/100 Mbps, self-adaptive Ethernet interface
• Power : ≤ 36W, ≤ 75W
• Standard : IEEE 802.3 af/at

General

• Power supply : 48 VDC
• Power : ≤ 50W, ≤ 90W
• Consumption(without hard disk and PoE) : ≤ 10 W
• Working temperature : -10 to +55º C (+14 to +131º F)
• Working humidity : 10 to 90 %
• Chassis : 1U chassis
• Dimensions(W × D × H) : 260 × 225 × 48 mm (10.2" × 8.9" × 1.9")
• Weight(without hard disk) : ≤ 1 kg (2.2 lb)

Extra Information

• SKU: DS7W08NIQ18P
• Warranty: 2 Years
• Brand: Hikvision
• Technology: IP
• Product Type: NVR
• PDF: View PDF
