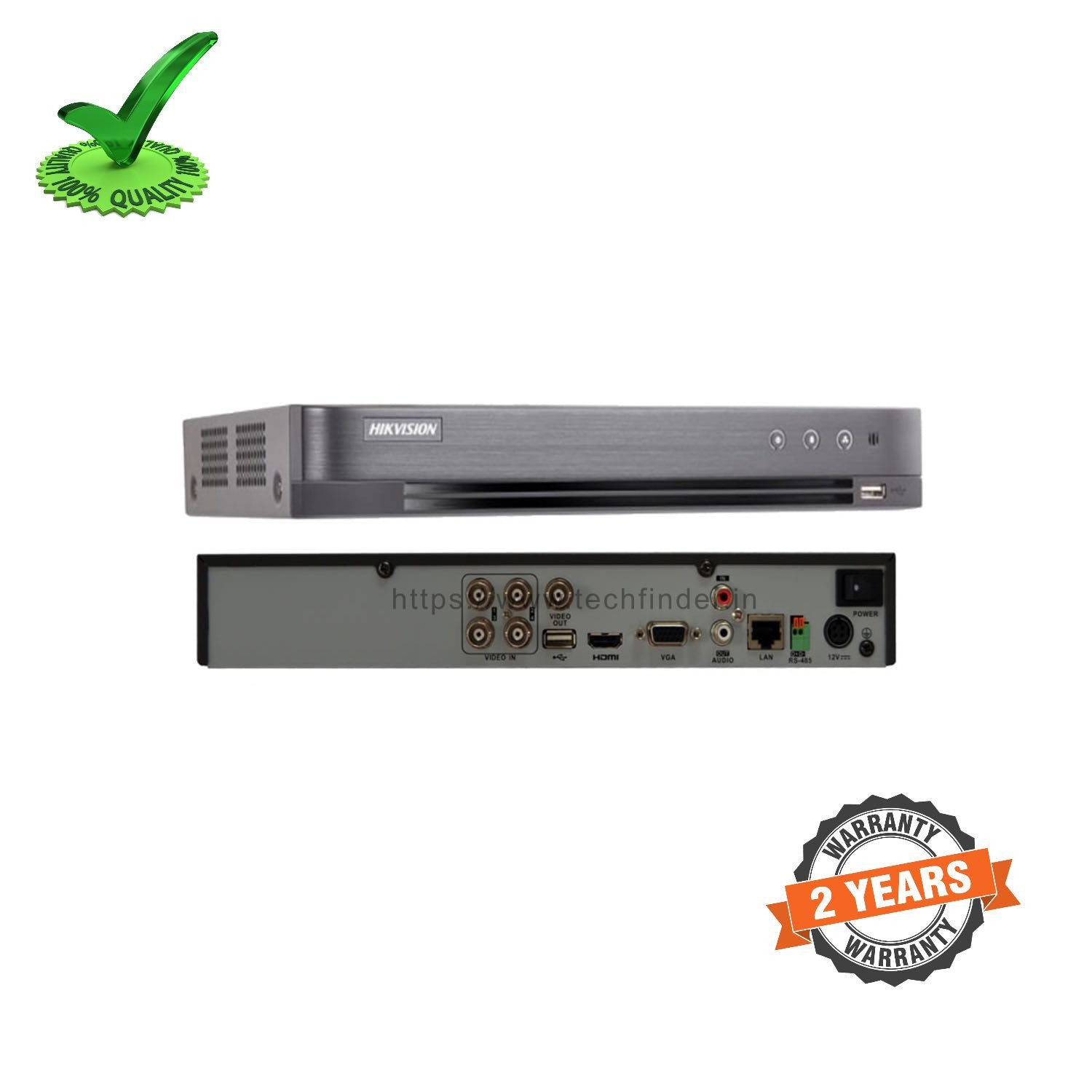

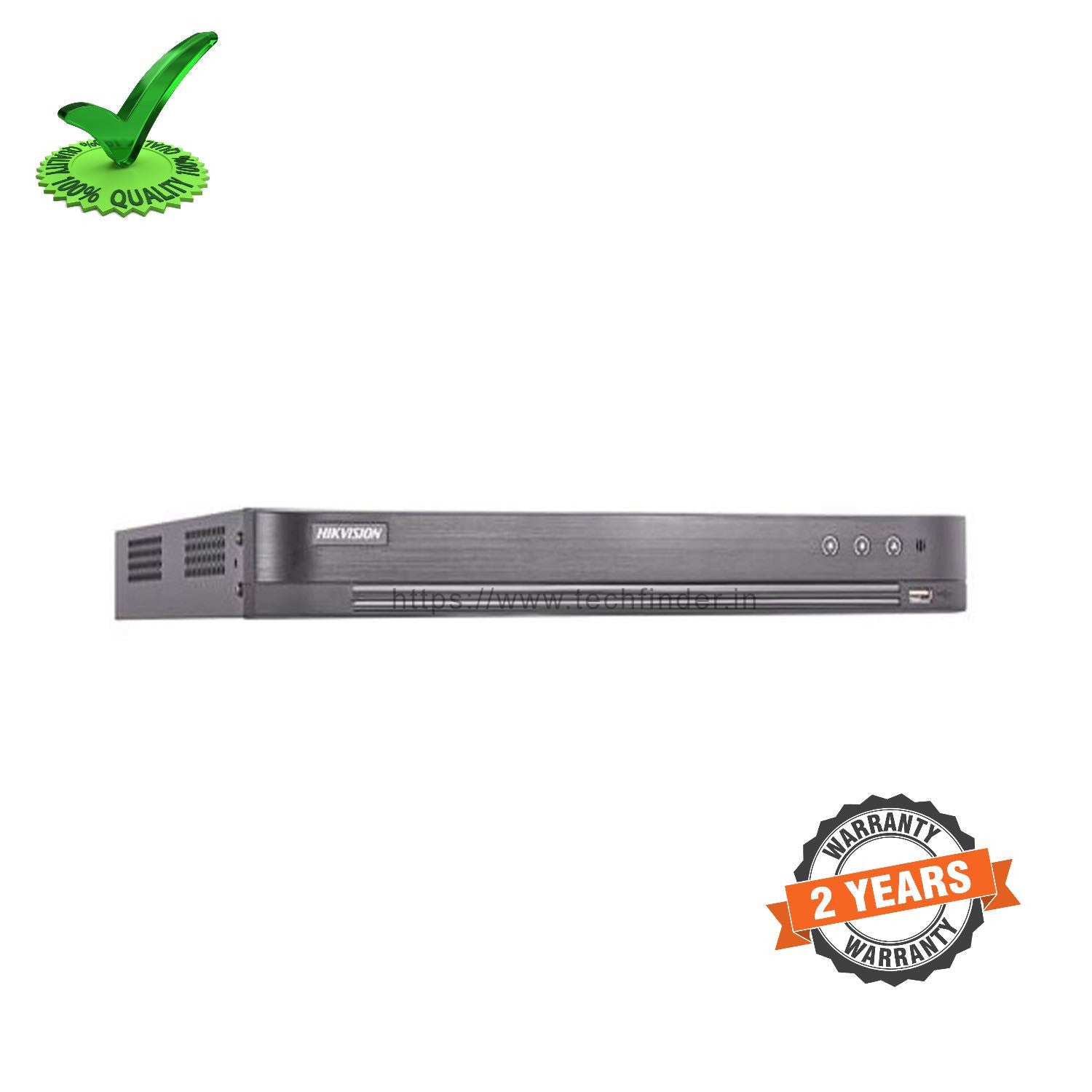

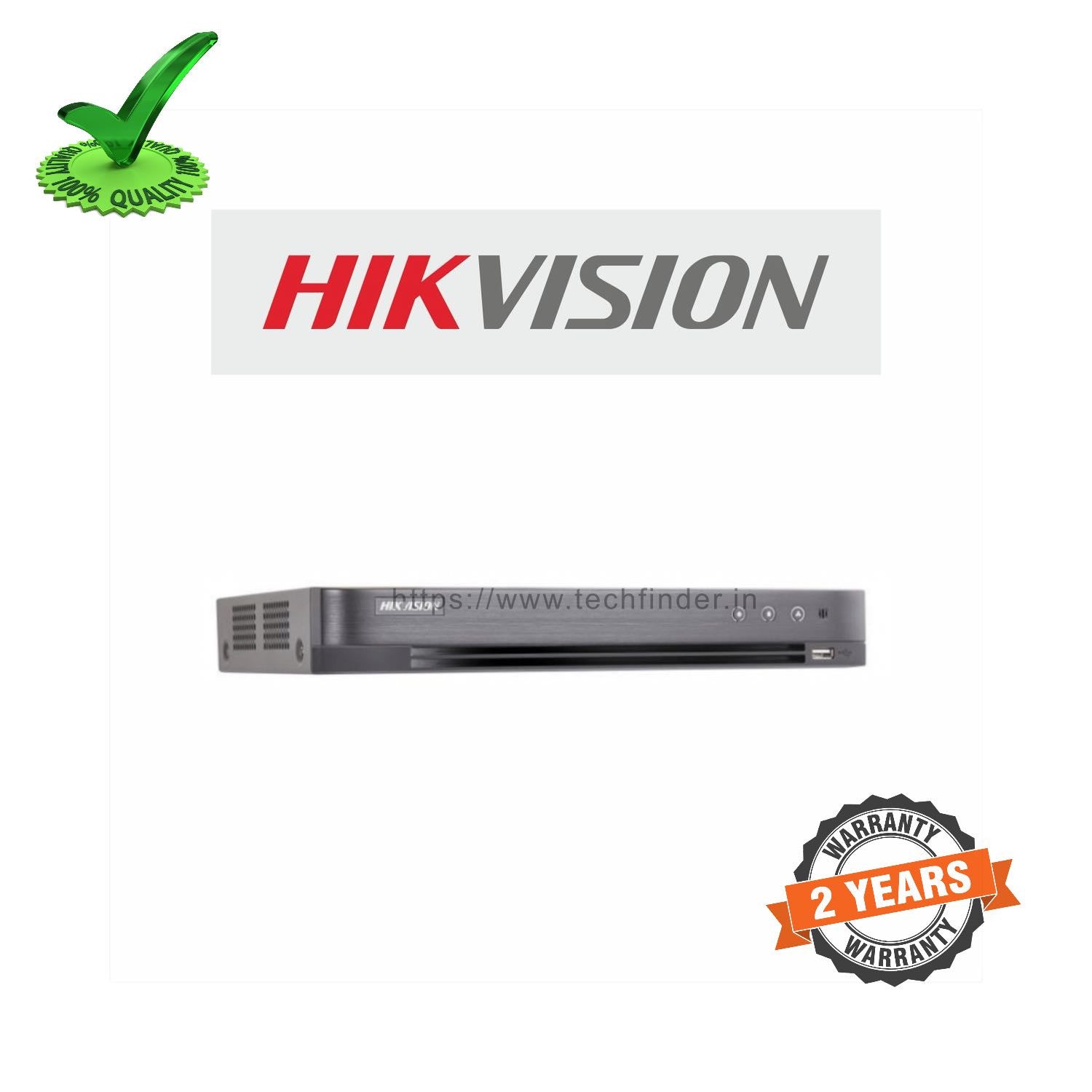

Hikvision DS-7B04HUHI-K2 Series 4ch 5mp 2 Sata DVR

Hikvision Model No : DS-7B04HUHI-K2 Series 4port 5megapixel 2 Sata hard disk DVR

Specifications

Video/Audio input

• Model : DS-7B04HUHI-K2
• Video compression : H.265+/H.265/H.264+/H.264
• Analog video input : 4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input : 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
• AHD input : 1080p25, 1080p30, 720p25, 720p30
• HDCVI input : 1080p25, 1080p30, 720p25, 720p30
• CVBS input : PAL/NTSC
• IP video input : 2-ch, Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
• Audio compression : G.711u
• Audio input : 4-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

• CVBS output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI/VGA output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Encoding resolution : 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame rate : Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
• Video bit rate : 32 Kbps to 10 Mbps
• Audio output : 1-ch, RCA (Linear, 1 KΩ)
• Audio bit rate : 64 Kbps
• Dual stream : Support
• Stream type : Video, Video & Audio
• Synchronous playback : 4-ch

Network management

• Remote connections : 128
• Network protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPTM, HTTPS, ONVIF

Hard disk

• SATA : 1 SATA interface
• Capacity : Up to 8 TB capacity for each disk

External interface

• Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
• Network interface : 1, RJ45 10M/100M self-adaptive Ethernet interface
• USB interface : 2 × USB 2.0
• Serial interface : RS-485 (half-duplex)

General

• Power supply : 12 VDC
• Consumption (without HDD) : ≤ 10 W
• Working temperature : -10 oC to +55 oC (+14 oF to +131 oF)
• Working humidity : 10% to 90%
• Dimensions (W × D × H) : 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weight (without HDD) : ≤ 1.16 kg (2.6 lb)

Extra Information

• SKU: DS7B04HUHIK2
• Warranty: 2 Years
• Brand: Hikvision
• Technology: Analogue
• Product Type: DVR/XVR
• PDF: View PDF
