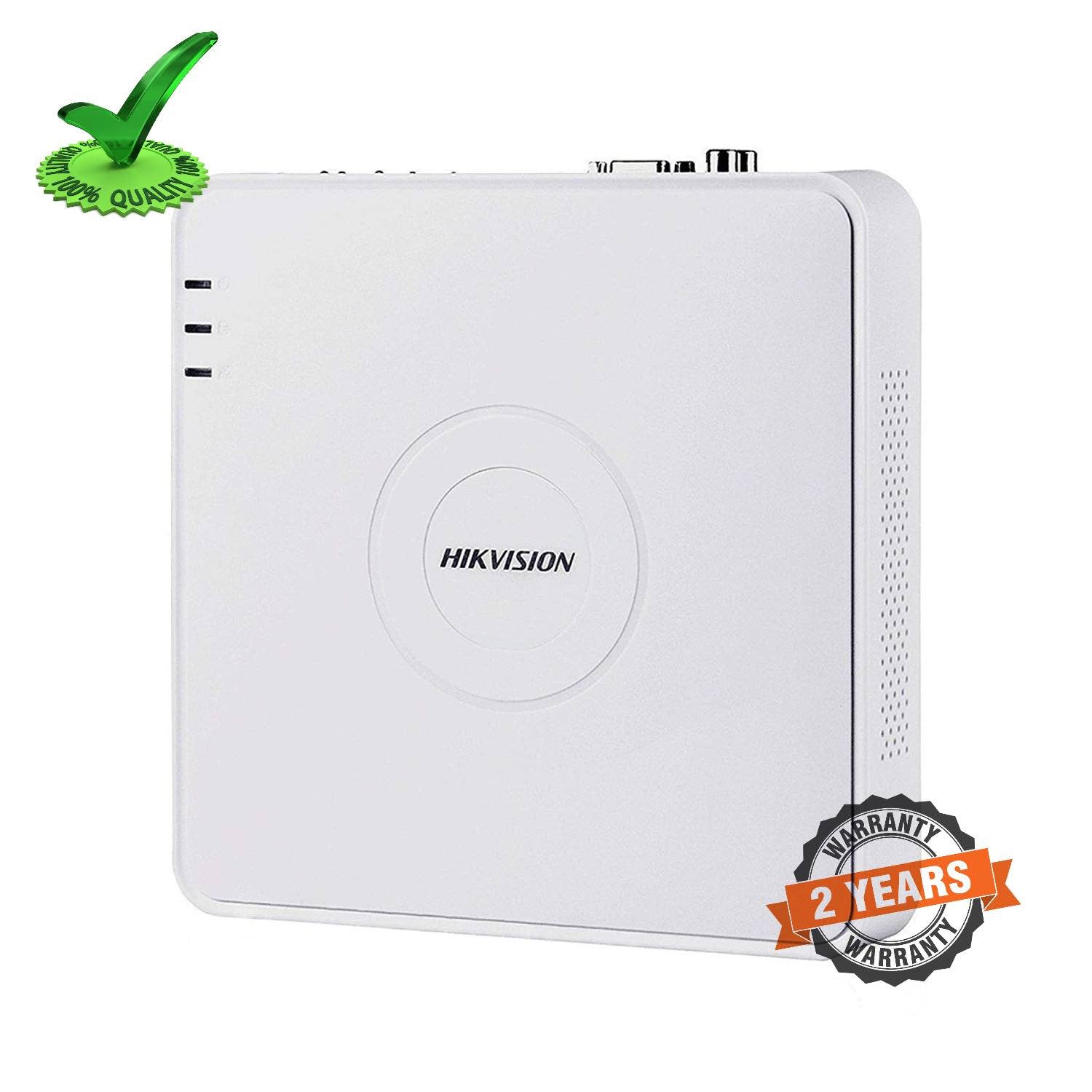

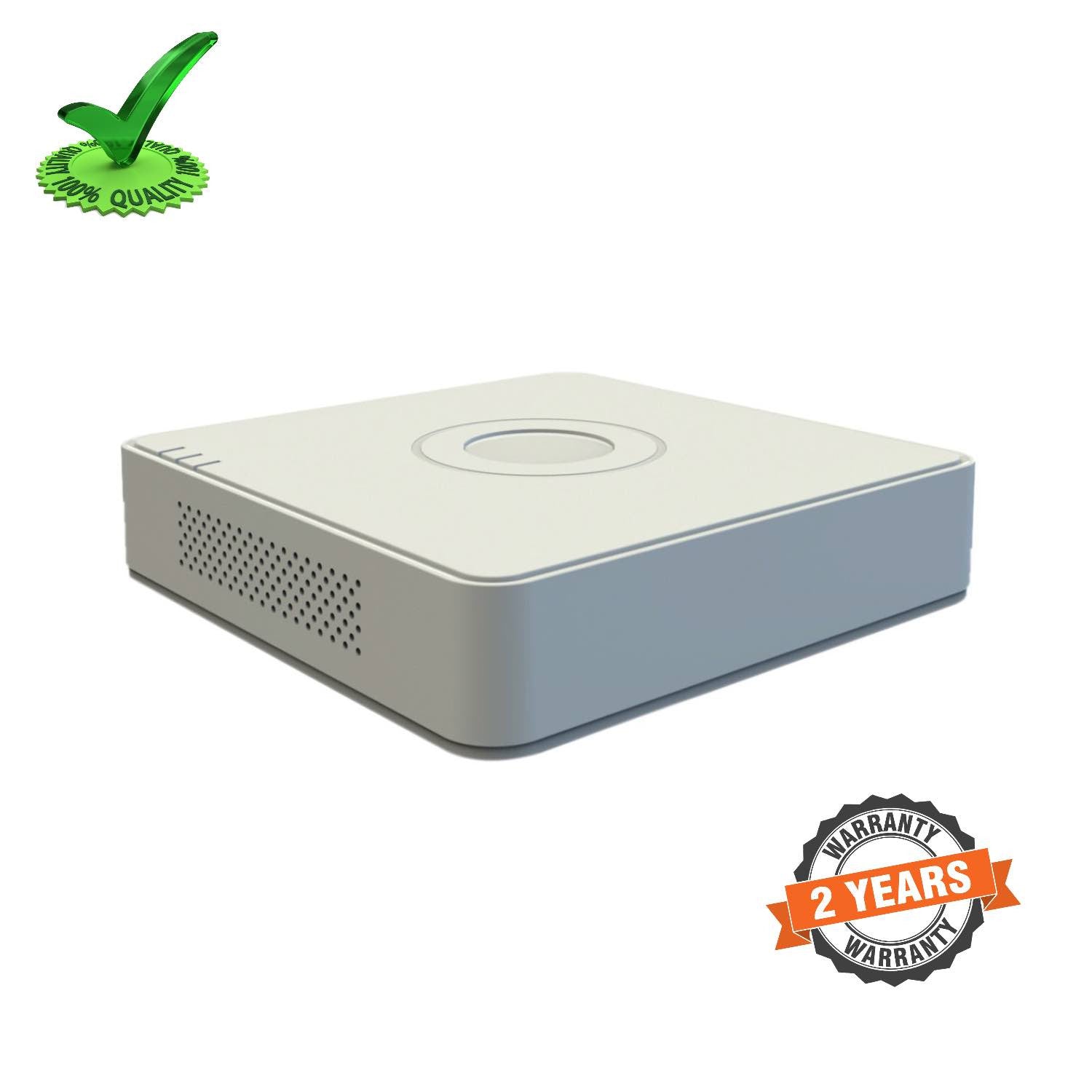

Hikvision DS-7A16HGHI-F1 Eco Model 16ch Turbo HD Dvr
Hikvision DS-7A16HGHI-F1 Eco Model 16ch Turbo HD Dvr
Video Input and Transmission
- Connectable to Turbo HD/HDCVI/AHD/CVBS signal input.
- Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal
Compression and Recording
- One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs.
- Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p
Video Output
- Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution
Storage and Playback
- One SATA interface (up to 6 TB capacity per HDD).
- 4/8/16-ch synchronous playback.
- Smart search for efficient playback
Smart Function
- VQD (Video Quality Diagnostics).
- Unlock pattern for device login for the admin and clear-text password available.
- GUID file can be exported for password resetting and imported for finding the forgotten password.
- Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management.
- One self-adaptive 10/100 Mbps network interface.
- Output bandwidth limit configurable
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Hikvision DS-7A16HGHI-F1 Eco Model 16ch Turbo HD Dvr
Video/Audio input
- Video compression : H.264+/H.264
- Analog video input : 4-ch 8-ch 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Turbo HD input : 1080p25, 1080p30, 720p25, 720p30
- AHD input : 1080p25, 1080p30, 720p25, 720p30
- HDCVI input : 1080p25, 1080p30, 720p25, 720p30
- CVBS input : Support
- IP video input : 1-ch(up to 5-ch), 2-ch(up to 10-ch), 2-ch(up to 18-ch), Up to 1.3MP resolution
- Audio compression : G.711u
- Audio input/Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output
- HDMI/VGA output : 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Encoding resolution : When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF, When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
- Frame rate : Main stream:When 1080p lite mode enabled:1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N), When 1080p lite mode not enabled:For 720p stream access:720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N), For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), Sub-stream:CIF/QVGA/QCIF@25fps (P)/30fps (N)
- Video bit rate : 32 Kbps to 4 Mbps
- Audio output : 1-ch, RCA (Linear, 1 KΩ)
- Audio bit rate : 64 Kbps
- Dual stream : Support
- Stream type : Video, Video & Audio
- Synchronous playback : 4-ch 8-ch 16-ch
Network management
- Remote connections : 32 128
- Network protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI,, UPnP™, HTTPS
Hard disk
- SATA : 1 SATA interface
- Capacity : Up to 6 TB capacity for each disk
External interface
- Network interface : 1, RJ45 10M/100M self-adaptive Ethernet interface
- USB interface : Rear panel: 2 × USB 2.0
General
- Power supply : 12 VDC
- Consumption (without HDD) : ≤ 8 W ≤ 12 W ≤ 20 W
- Working temperature : -10 ºC to +55 ºC (14 ºF to 131 ºF)
- Working humidity : 10% to 90%
- Dimensions(W × D × H) : 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
- Weight(without HDD) : ≤ 0.8 kg (1.8 lb) ≤ 1.2 kg (2.6 lb)
Extra Information
- SKU: DS7A16HGHIF1
- Warranty: 2 Years
- Brand: Hikvision
- Technology: Analogue
- Product Type: DVR/XVR
- PDF: View PDF
