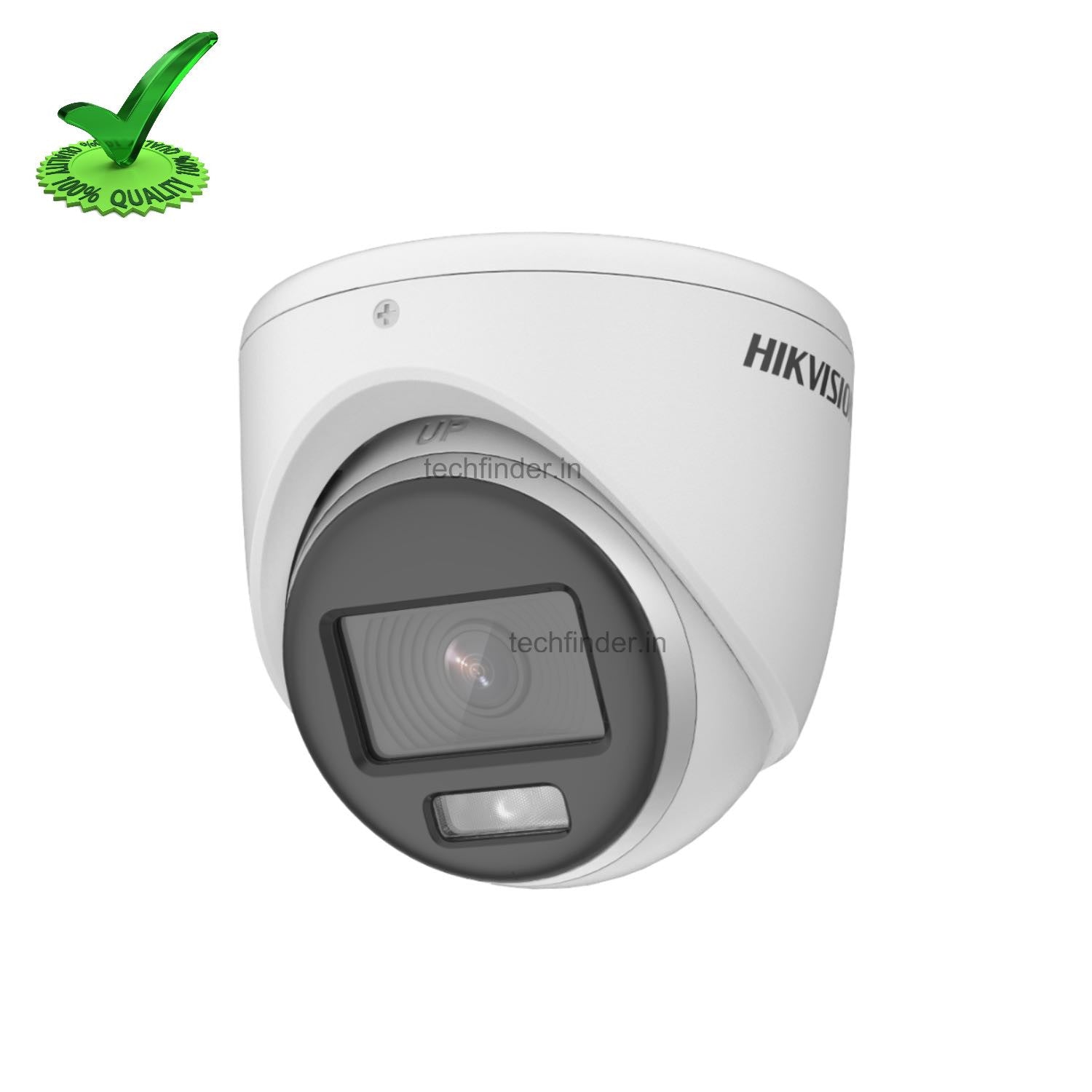

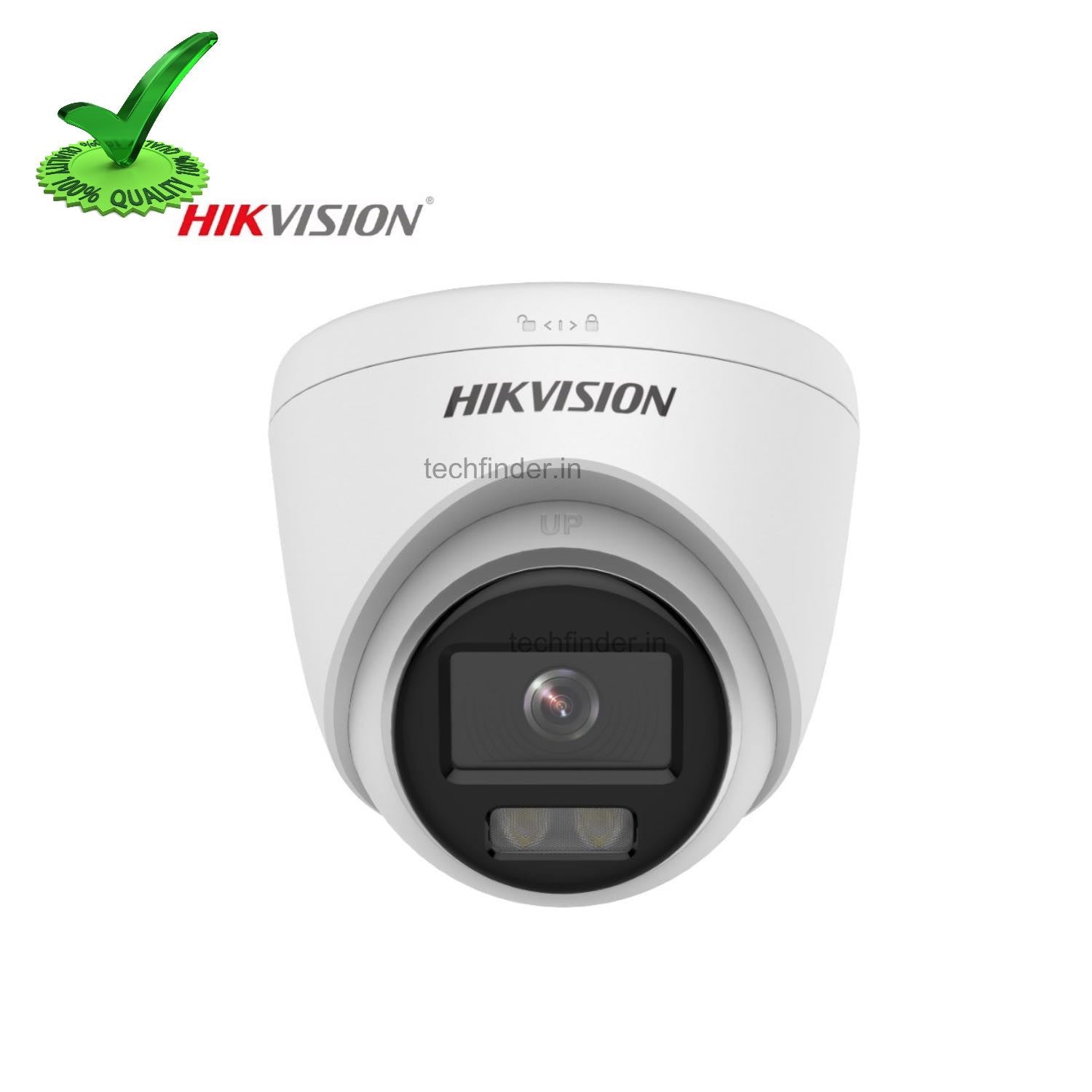

Hikvision DS-2CE70DF0T-PF 2MP HD Dome Camera

Camera Specification

• Image Sensor : 2 MP CMOS
• Signal System : PAL/NTSC
• Resolution : 1920 (H) × 1080 (V)
• Frame Rate : TVI: 1080p@25fps/30fps, CVI: 1080p@25fps/30fps, AHD: 1080p@25fps/30fps, CVBS: PAL/NTSC
• Min. Illumination : 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Lens : 2.8 mm, 3.6 mm, 6 mm Fixed Lens
• Field of View : 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°, 3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°, 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°
• Lens Mount : M12
• Light Alarm : Solid Light Alarm (White Light)
• WDR (Wide Dynamic Range) : Digital WDR
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Menu

• White Light : Auto/Off
• Image Mode : STD/HIGH-SAT/HIGHLIGHT
• AGC : Yes
• Day/Night Mode : Color
• White Balance : Auto/Manual
• AE (Auto Exposure) Mode : DWDR, BLC, HLC, Global
• Noise Reduction : 3D DNR/2D DNR
• Language : English
• Function : Brightness, Mirror, Sharpness, Anti-Banding, Smart Light

Interface

• Video Output : Switchable TVI/AHD/CVI/CVBS

General

• Operating Conditions : -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera.
• Consumption : Max. 2.4 W
• Material : Plastic
• White Light Range : Up to 20 m
• Communication : HIKVISION-C
• Dimension : Φ 85.02 mm × 81.25 mm (Φ 3.35" × 3.2")
• Weight : Approx. 161 g (0.36 lb)

Extra Information

• SKU: DS2CE70DF0TPF
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 2
• Technology: Analogue
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
