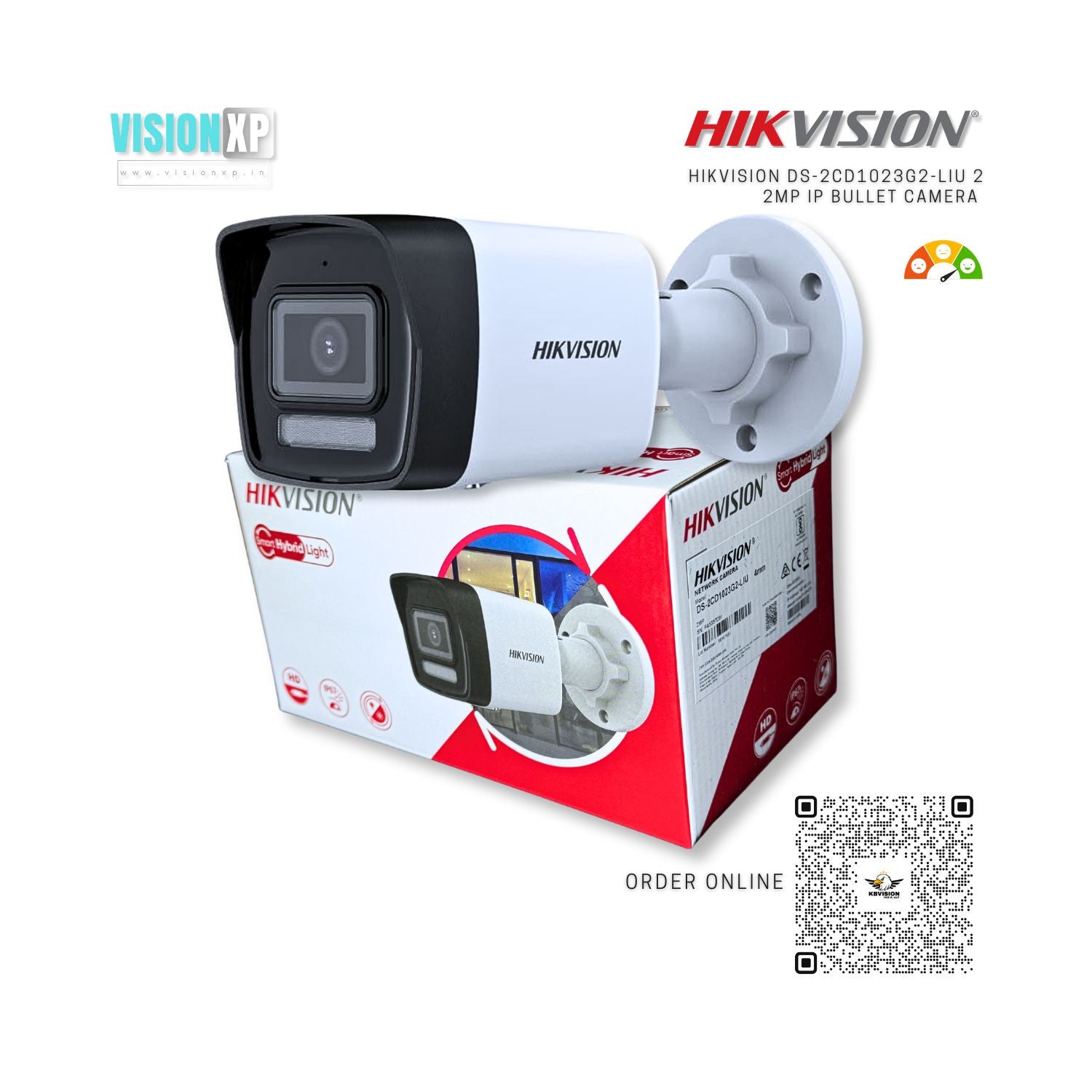

Hikvision DS-2CD1023G2-LIU 2 MP Fixed Bullet Network IP Camera Lowest Price Buy Online Store

Specification

Camera

• Image Sensor : 1/2.9" Progressive Scan CMOS
• Max. Resolution : 1920 × 1080
• Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time : 1/3 s to 1/100,000 s
• Day & Night : IR cut filter
• Angle Adjustment : Pan: 0°to 360°, tilt: 0°to 90°, rotate: 0°to 360°

Lens

• Lens Type : Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV : 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121° , 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
• Lens Mount : M12
• Iris Type : Fixed
• Aperture : F1.6

DORI

• DORI : 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

• Supplement Light Type : IR, White Light
• Supplement Light Range : Up to 30 m
• Smart Supplement Light : Yes
• IR Wavelength : 850 nm

Video

• Main Stream : 50 Hz: 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream : 50 Hz: 25 fps (640 × 480, 640 × 360) , 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression : Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile, Main Profile, High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR, VBR
• Region of Interest (ROI) : 1 fixed region for main stream

Audio

• Audio Type : Mono sound
• Environment Noise Filtering : Yes
• Audio Sampling Rate : 8 kHz/16 kHz
• Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate : 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

• Security : Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live : Up to 6 channels
• View API : Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
• Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
• User/Host : Up to 32 users 3 user levels: administrator, operator, and user
• Client : iVMS-4200, Hik-Connect
• Web Browser : Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR) : Digital WDR
• SNR : ≥ 52 dB
• Day/Night Switch : Day, Night, Auto, Schedule
• Image Enhancement : BLC, HLC, 3D DNR
• Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask : 4 programmable polygon privacy masks

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage : -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone : Yes
• Reset Key : -F: Yes

Event

• Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Linkage : Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General

• Power : 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material : Metal & Plastic
• Dimension : 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
• Package Dimension : 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
• Weight : Approx. 265 g (0.6 lb.)
• With Package Weight : Approx. 495 g (1.1 lb.)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language : English, Ukrainian
• General Function : Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

• EMC : FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
• Safety : UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment : CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection : IP67: IEC 60529-2013

Typical Application

Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level

• Top-level protection :  Hikvision products at this level are equipped for use in areas where professional anti- corrosion protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and more.
• Moderate protection : Hikvision products at this level are equipped for use in areas with moderate anti- corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain.
• No specific protection : Hikvision products at this level are equipped for use in areas where no specific anti- corrosion protection is needed.

Available Model

• DS-2CD1023G2-LIU (2.8/4 mm)
• DS-2CD1023G2-LIUF (2.8/4 mm)

Extra Information

• SKU: DS2CD1023G2LIUF
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 2
• Technology: IP
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
