Dahua

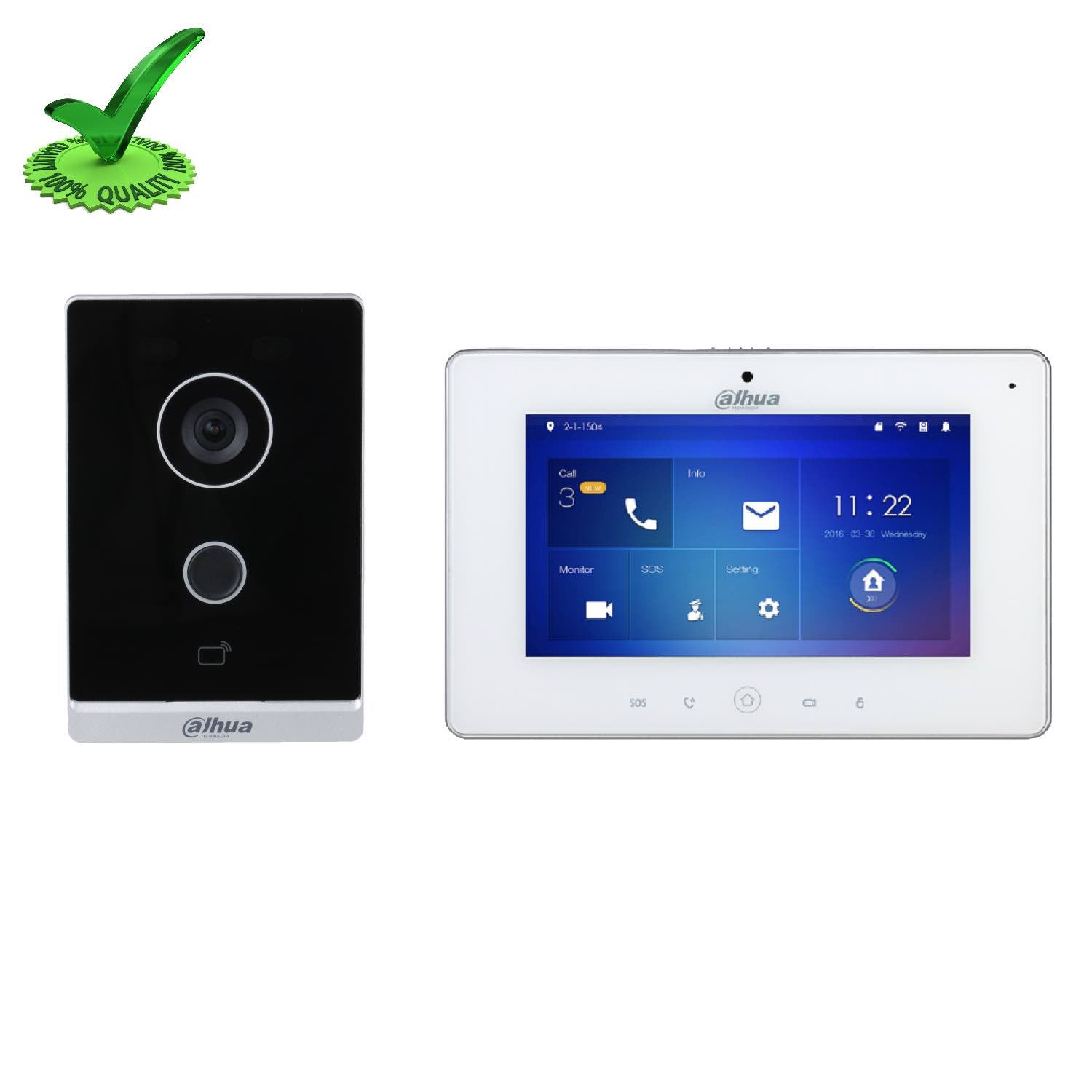

Dahua DHI-KTW01 IP Video Door Phone
Product SKU: DHIKTW01
Available:
Only 100 items in stock
100 items in stock
In stock
Pre-order
Out of stock
Short description
IP Villa Wi-Fi Door Station
- Thin lightweight design
- -30°C to +60°C (-22°F to +140°F) operating temperature
- IP65 (Silicone sealant is need. For details, see the quick start guide.)
- IR illumination and night vision
- Card unlock, app unlock, and indoor monitor unlock
- Two-way audio and voice call through app
- Card capacity: 10,000
- Tamper alarm
- Standard PoE
- Control two locks
- Supports wireless network
IP Indoor Monitor
- 7" TFT Capacitive touch screen, 1024x600
- IPC surveillance
- 6ch wired alarm integration
- Supports wireless network
- Record & Snapshot(SD card needed)
Rs. 30,999.00
Want it delivered by
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Description
PDF
Reviews
System
- Main Processor : Embedded processor
- Operating System : Embedded Linux operating system
- Button Type : Mechanical
- Interoperability : ONVIF
- Network Protocol : SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP
Basic
- Camera : 1/2.8'' 2MP CMOS high definition, low illumination/WDR/color/IR
- Field of View : Horizontal: 125°; vertical: 72°; diagonal: 142°
- WDR : 120dB
- Noise Reduction : 3D noise reduction
- Video Compression : H.264
- Video Resolution : Main stream: WVGA, 720P, D1, Sub stream: CIF, WVGA, QVGA, 1080P, D1
- Video Frame Rate : PAL:25 fps, NTSC:30 fps
- Video Bit Rate : 256K to 4M
- Light Compensation : Auto IR
- Day/Night ICR : auto switch
- Audio Compression : G.711Mu; G.711u; PCM
- Audio Input : 1
- Audio Output : Built-in speaker
- Audio Mode : Two-way audio
- Audio Enhancement : Echo suppression and cancellation/digital noise reduction
- Audio Bit Rate : 16KHz, 16Bit
Function
- Communication Mode : Full digital
- Unlock Mode : Card/app/indoor monitor unlock
- Card Type : IC card
- Motion Detection : Video motion detection
- Auto Snapshot : Auto snapshot can only be enabled on indoor monitors
- Leave Videos : Yes (Insert an SD card into the indoor monitor)
- Wi-Fi : Yes
- Wireless Standard : IEEE802.11b/802.11g/802.11n
- Wireless Frequency Range : 2.4GHz
- Web Configuration : Yes
Performance
- Card Reading Distance : 3cm–5cm
- Casing : PC+Acrylic
Capacity
- Card : 10,000
Port
- RS-485 : 1
- Electric Lock : 1
- Alarm Input : 1
- Alarm Output : 1
- Power Output : 1
- Exit Button : 1
- Door Status Detection : 1
- Lock Control : 1, normally closed by default
- Network : 1 10M/100M network port
Alarm
- Tamper : Yes
General
- Color : Black plate & silvery frames
- Power Supply : 12V DC 1A, Standard PoE
- Installation : Surface mount
- Certifications : CE/FCC/UL
- Accessory : Brackets and alarm ribbon cable
- Dimensions : 150 mm × 100 mm ×24.8 mm (5.91'' × 3.94'' × 0.98'')
- Protection Grade : IP 65 (silicone sealant is needed, see the quick start guide)
- Operating Temperature : -30°C to +60°C (-22°F to +140°F)
- Operating Humidity : 10%RH–90%RH (non-condensing)
- Operating Environment : Outdoor
- Operating Altitude Beneath : 3000 m (9842.51 ft)
- Power Consumption : Standby≤1W, working≤7W
- Gross Weight : 490 g (1.08 lb)
DHI-VTH5221DW-S2
System
- Main Processor : Embedded processor
- Operating System : Embedded Linux operating system
- Button Type : Touch button
- Network Protocol : IPv4, FTP, RTSP, RTP, TCP, UDP, SIP
Basic
- Screen Type : Capacitive Screen
- Display : 7/10 inch TFT display
- Resolution : 1024×600
- Video Compression : H.264
- Audio Compression : G.711a; G.711Mu; G.711u; PCM
- Audio Input : 1 omnidirectional microphone
- Audio Mode : Two-way audio
- Audio Enhancement : Echo suppression and cancellation/digital noisereduction
- Audio Bit Rate : 16KHz, 16Bit
Function
- Communication Mode : Full digital
- Information Release : Text messages released by the management center can be received and viewed (Insert an SD card into the indoor monitor).
- Elevator Control : You can control the elevator through the indoor monitor.
- Smart Home : Can be connected to Dahua smart home devices.
- Leave Videos : Yes (Insert an SD card into the indoor monitor)
- DND Mode : Yes
- Extension Quantity : 9
- Wi-Fi : Yes
- Wireless Standard : IEEE802.11b/802.11g/802.11n
- Wireless Frequency Range : 2.4GHz
- Wireless Security Encryption : 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
- Storage : 8G Micro SD card (max SD card capacity supported is64GB), FTP
Port
- RS-485 : 1
- Alarm Input : 6
- Door Bell : Yes
- Network : 1 RJ-45 , 10M/100Mbps self-adaptive
Alarm
- SOS : Yes
Performance
- Casing : PC+ABS
- Color : White
- Power Supply : Dahua Switch (the max power supply distance is 50 m), 12V DC 1A
- Installation : Surface mount
- Accessory : Brackets and alarm ribbon cable
- Dimensions : 215.0 mm × 140.0 mm × 21.0 mm (5.91”× 3.94” ×0.98”)
- Operating Temperature : -30°C to +55°C (-22°F to +140°F)
- Operating Humidity : 10%RH–90%RH (non-condensing)
- Power Consumption : ≤3W (standby), ≤7W (working)
- Gross Weight : 0.69 kg (1.52 lb)
Extra Information
- SKU: DHIKTW01
- Warranty: 2 Years
- Brand: Dahua
- Technology: IP
- Product Type: Video Door Phone
- PDF: View PDF
