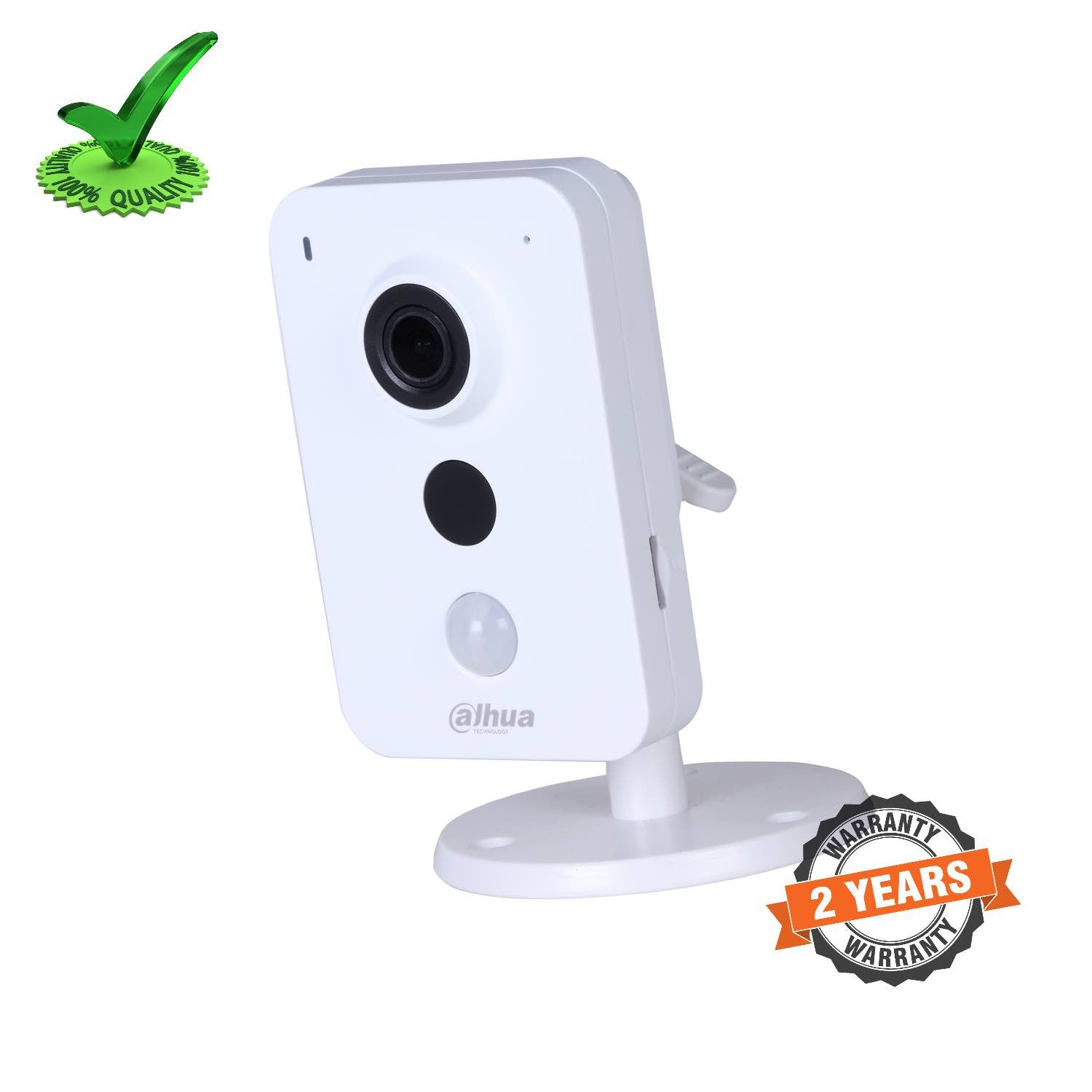

Dahua DH-IPC-K15 K Series 1.3mp Wi-Fi Network Camera

Dahua DH-IPC-K15 K Series 1.3mp Wi-Fi Network Camera

System Overview

• The IR Megapixel l Fixed K-Series camera delivers 1.3MP resolution. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small Wi-Fi applications at an affordable price.

Functions

True Day/Night

• A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens

Smart IR

• With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDS from whiting out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 10m(33ft).

Image flip

• Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimization.

Protection

• Supporting ±10% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides protectection against the camera and its structure from the effects of lightning.

Technical Specification
Camera

• Image Sensor : 1/3” 1.3Megapixel progressive CMOS
• Effective Pixels : 1280(H) x960(V)
• RAM/ROM : 256MB/16MB
• Scanning System : Progressive
• Minimum Illumination : 0.5Lux/F2.2(Color), 0Lux/F2.2(IR on)
• S/N Ratio : More than 50dB
• IR Distance : Distance up to 10m(33ft)
• IR On/Off Control : Auto/ Manual
• IR LEDs : 1

Lens

• Lens Type : Fixed
• Mount Type : Board-in
• Focal Length : 2.8mm
• Max. Aperture : F2.2
• Angle of View : H:92°;V:66°
• Focus Control : Fixed
• Close Focus Distance : N/A

PTZ

• Pan/Tilt Range : Pan:0° ~360° ;Tilt:-10° ~90° ;Rotation:0° ~360°

Video

• Compression : H.264/H.264B/H.264H/MJPEG
• Streaming Capability : 2 Streams
• Resolution : 1.3M(1280×960)/720P(1280×720)/VGA(640 ×480)/QVGA(320×240)
• Frame Rate : 1.3M(1~25/30fps), VGA/QVGA(1~25/30fps)
• Bit Rate Control CBR/VBR
• Bit Rate H264:32K ~ 10240Kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC Mode : BLC/HLC/DWDR
• White Balance : Auto/Natural/Street Lamp/Outdoor/Manual
• Gain Control : Auto/Manual
• Noise Reduction : 3D DNR
• Motion Detection : Off/On(4 Zone, Rectangle)
• Electronic Image : Support
• Smart IR : Support
• Digital Zoom : 16x
• Flip : 0°/90°/180°/270°
• Mirror : Off/On
• Privacy Masking : Off/On(4 Area, Rectangle)

Audio

• Compression : G.711A;G.711Mu;AAC

Network

• Ethernet : RJ-45 (10/100Base-T)
• Wi-Fi : Wi-Fi(IEEE802.11b/g/n),50m(open field)
• Protocol : HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;QoS;UPnP;NTP;Bonjour;Multicast;ICMP;IGMP;
• Interoperability : PSIA, CGI
• Streaming Method : Unicast / Multicast
• Max. User Access : 10 Users/20 Users
• Edge Storage : NAS(Network Attached Storage)
• Local PC for instant recording,Micro SD Card 128GB
• Web Viewer : IE, Chrome, Firefox, Safari
• Management Software : Smart PSS, DSS, Lechange
• Smart Phone : iOS, Android

Certifications

• Certifications : CE (EN 60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B

Interface

• Video Interface : N/A
• Audio Interface : Built-in Mic & Speaker
• RS485 : N/A
• Alarm : 1/1,PIR

Electrical

• Power Supply : DC12V
• Power Consumption : <4.5W

Environmental

• Operating Conditions : -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
• Strorage Conditions : -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
• Ingress Protection : N/A
• Vandal Resistance : N/A

Construction

• Casing : Plastic
• Dimensions : Φ78.5mm×127.8mm(3.09'’ x5.03’’)
• Net Weight : 0.31Kg (0.68lb)
• Gross Weight : 0.45Kg (0.99lb)

Similier Model

• DH-IPC-K15P 1.3MP K
• DH-IPC-K15N 1.3MP K
• IPC-K15P 1.3MP K
• IPC-K15N
