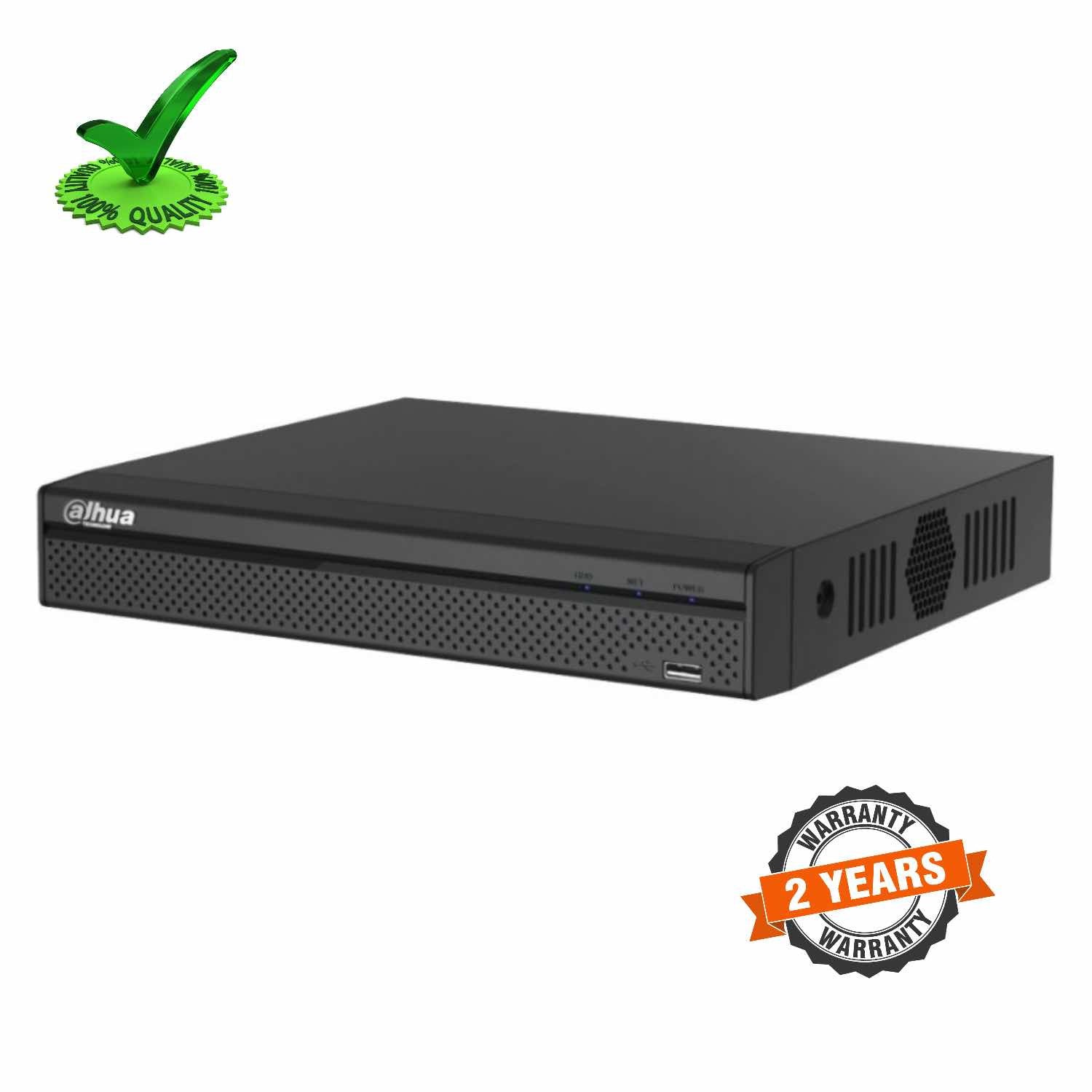

Dahua DH HCVR5104HE S3 4ch Dvr
Features
- Support HDCVI/Analog/IP Video input
- H.264+/H.264 dual-stream video compression
- HCVR5104/5108/5116HE-S3: All channel 1080N/720P realtime or 1080P non-realtime recording
- HDMI/VGA simultaneous video output
- 4/8/16 channel synchronous realtime playback, GRID interface & smart search
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
- ONVIF Version 2.4.1 conformance
- Support 1 SATA HDD up to 6TB, 2 USB2.0(16CH 1 USB3.0)
- 3D intelligent positioning with Dahua PTZ dome camera
- Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
- Advanced intelligent functions: Tripwire, Intrusion, Abandoned/Missing, Face Detection
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Dahua DH-HCVR5104HE-S3 4CH Tribrid 720P-Pro Mini 1U HDCVI DVR
DAHUA DH-HCVR5104/HE-S3 4CH DVR
Specification
Systems
- Main Processor : Embedded processor
- Operating System : Operating System
Video
- Input : 4 channel, BNC
- Analog : NTSC/PAL
- HDCVI : 1080P/720P HDCVI Camera
- IP : -
Audio
- Input : 4 channel, RCA
- Output : 1 channel, RCA
- Two-way Talk : Reuse audio input/output channel 1
Display :
- Interface : 1 HDMI, 1 VGA
- Resolution : 1920×1080, 1280×1024, 1280×720, 1024×768
- Display Split : 4
- Privacy Masking : 4 rectangular zones (each camera)
- OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
- Video/AudioCompression : H.264/G.711
- Record Rate / MainStream : 1080P(1~15fps) 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
- Record Rate / ExtraStream : D1/CIF/QCIF(1~15fps)
- Bit Rate : 1~6144Kb/s
- Record Mode : Manual, Schedule(Regular(Continuous), MD), Stop
- Record Interval : 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
- Trigger Events : Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer &Screen tips
- Video Detection : Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
- Alarm Input : 4 channel
- Relay Output : 3 channel
- Intelligent Video (Optional) : Tripwire, Intrusion, Abandoned/Missing, Face Detection
Playback & Backup
- Sync Playback : 1/4/9/16
- Search Mode : Time/Date, MD & Exact search (accurate to second)
- Playback Functions : Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Nextcamera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital
- Backup Mode : USB Device/Internal SATA burner/Network
Network
- Ethernet : RJ-45 port(10/100M/1000M)
- Network Functions : HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE,DDNS, FTP, IP Filter, SNMP, P2P
- Max. User Access : 128 users
- Smart Phone : iPhone, iPad, Android, Windows Phone
Storage
- Internal HDD : 1 SATA port, up to 6TB
Auxiliary Interface
- USB Interface : 2 ports (1 Rear USB3.0, 1Front USB2.0)
- RS485 : 1 port, For PTZ Control
General
- Power Supply : DC12V/2A
- Power Consumption : 10W(without HDD)
- Working Environment : -10°C ~+55°C / 10%~90%RH / 86~106kpa
- Dimension (W×D×H) : Mini 1U, 325mm×255mm×55mm
- Weight : 1.5KG(without HDD)
Extra Information
- SKU: DHHCVR5104HES3
- Warranty: 2 Years
- Brand: Dahua
- Technology: Analogue
- Product Type: DVR/XVR
- PDF: View PDF
