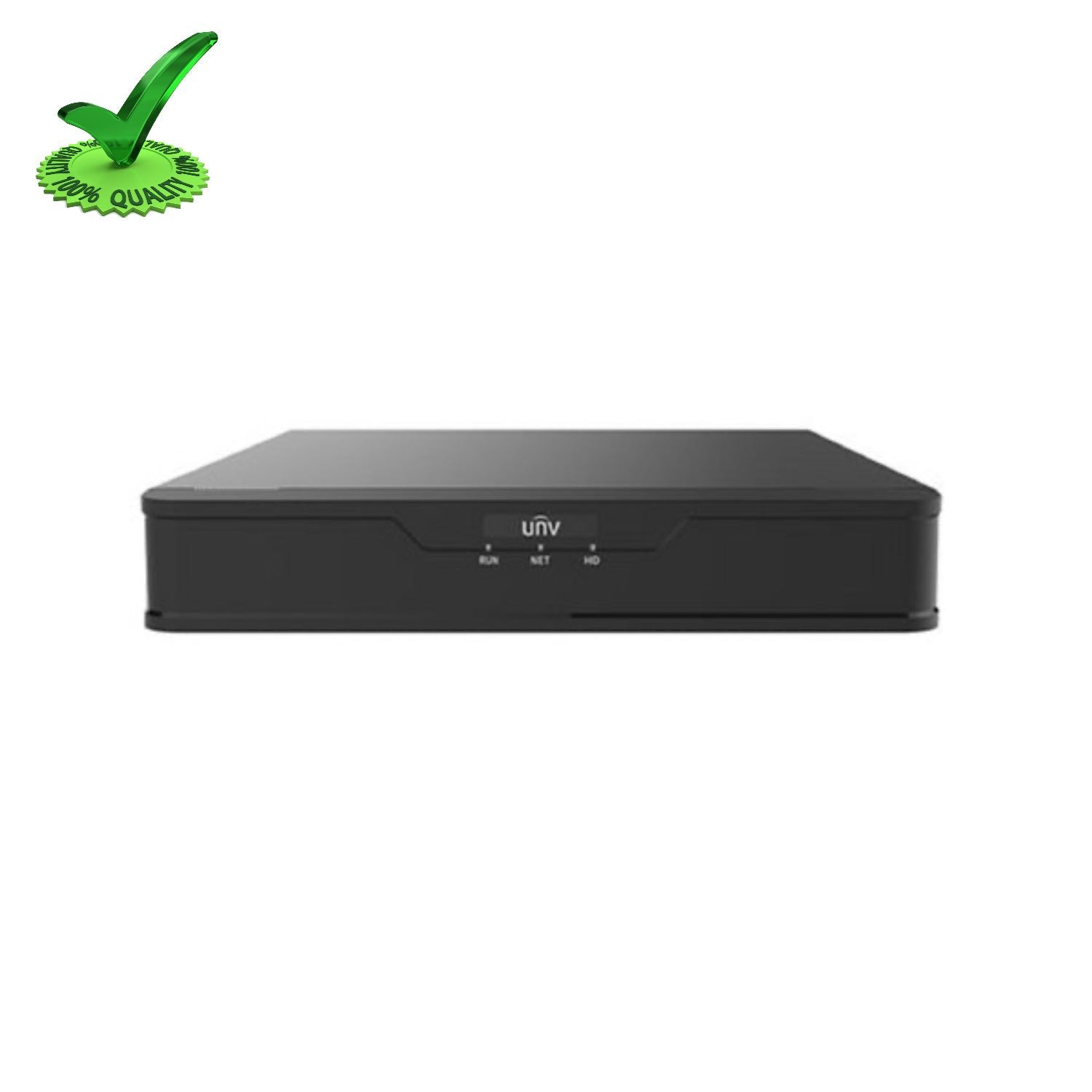

Uniview NVR301-16S3 16Ch HD Network Video Recorder

Specifications

Video/Audio Input

• IP Video Input : 16-ch

Network

• Incoming Bandwidth : 64Mbps
• Outgoing Bandwidth : 48Mbps
• Remote Users : 128
• Protocols : P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

• HDMI/VGA Output : HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,  1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Recording Resolution : 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output : 1-ch, 3.5mm
• Synchronous Playback : 16-ch
• Corridor Mode Screen : 3/4/5/7/9/10/12/16

Decoding

• Decoding format : Ultra 265/H.265/H.264
• Liveview/Playback : 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability : 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4x 1080p@30, 8 x 720p@30, 16 x D1@25

Hard Disk

• SATA : 1 SATA interface
• Capacity : up to 6TB for each disk

External Interface

• Network Interface : 1 RJ45 10M/100M self-adaptive Ethernet Interface
• USB Interface : Rear panel: 2 x USB2.0

General

• Power Supply : 12V DC
• Power Consumption : ≤5 W (without HDD)
• Working Environment : -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H) : 260mm × 240mm × 46mm (10.2"×9.4"×1.8 ")
• Weight (without HDD) : ≤0.98kg (2.16 lb)

Extra Information

• SKU: NVR30116S3
• Warranty: 2 Years
• Brand: Uniview
• Technology: IP
• Product Type: NVR
• PDF: View PDF
