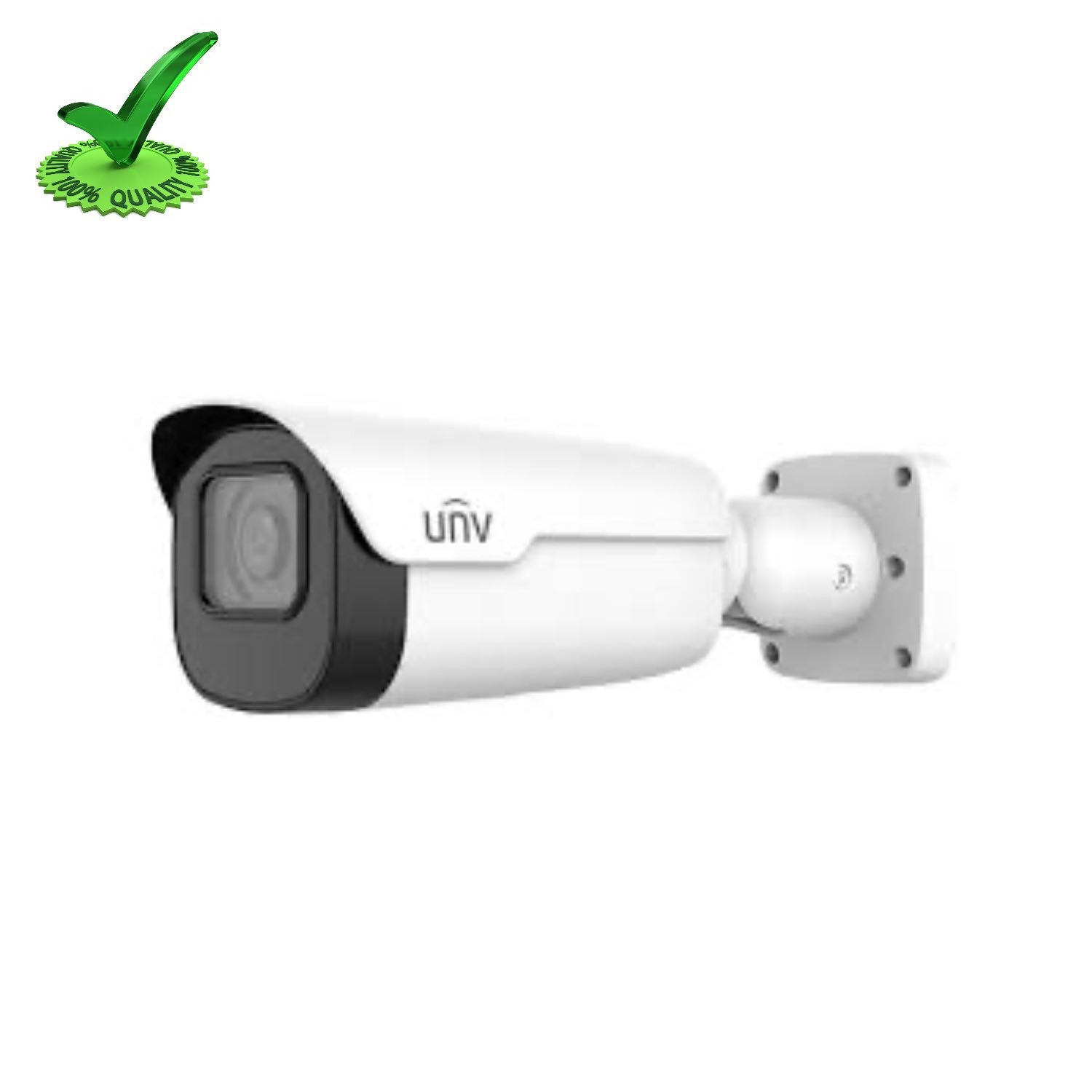

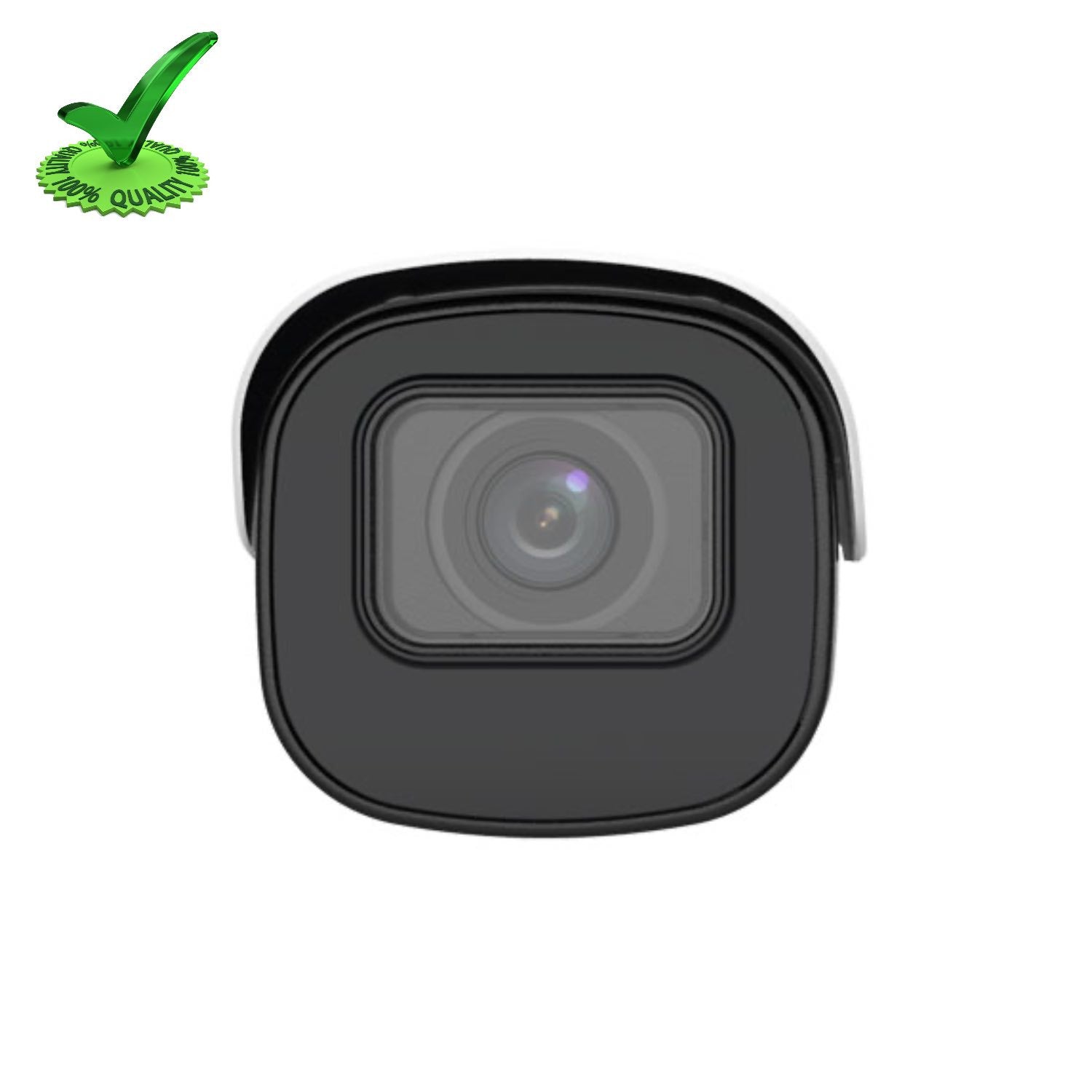

Uniview IPC264SA-DZK 4MP IP Network Bullet Camera
Short Description
- 1/1.8’’, Powered by lighthunter
- Smart IR, up to 50m (164 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Adaptive fogging
- Ultra 265, H.265, H.264, MJPEG
- DC12V or PoE+ power supply
- Wide voltage range of ±25% in DC
- Micro SD, up to 256 GB
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
- IK10 vandal resistant
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specifications
Camera
- Sensor : 1/1.8", 4.0 megapixel, progressive scan, CMOS
- Lens : 2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens
- Iris : Fixed
- Angle of View (H) : 35.6°~107.9°
- Angle of View (V) : 20.4°~75.4°
- Angle of View (O) : 43.8°~140.3°
- Shutter : Auto/Manual, 1 ~ 1/100000s
- Min. Illumination : Colour:0.0005lux (F1.2, AGC ON) 0 lux with IR
- WDR : 120dB
- Day/Night : IR-cut filter with auto switch (ICR)
- S/N : >56dB
- IR Range : Up to 50m (164 ft) IR range
- Wavelength : 850nm
- IR On/Off Control : Auto/Manual
- Defog : Digital Defog
Video
- Video Compression : Ultra 265,H.265,H.264,MJPEG
- Frame Rate : Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 2MP(1920*1080),Max 60fps Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps
- Video Bit Rate : 128 Kbps~16 Mbps
- ROI : Supported
- Video stream : Triple streams
- OSD : Up to 8 OSDs
- Privacy Mask : Up to 8 areas (8 blacks / 8 mosaics)
- White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction : 2D/3D DNR
- Smart IR : Support
- Flip : Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
- HLC : Support
- BLC : Support
Event
- Basic Detection : Audio detection, Tampering Alarm, Motion detection
- General Function : Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression : G.711U,G.711A
- Two way audio : Supported
- Sampling Rate : 8KHZ
Storage
- Edge Storage : Micro SD, up to 256 GB
- Network Storage : ANR,NAS(NFS)
Network
- Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
- Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API
- Client : EZStation Ezview EZLive
- Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
- Audio I/O : Audio cable 1 Input: impedance 35kΩ; amplitude 2V [p-p] 1 output: impedance 600Ω; amplitude 2V [p-p]
- Alarm I/O : 2/1
- Network : 1 x RJ45 10M/100M Base-TX Ethernet
- Serial Port : 1 RS485
Certifications
- Certifications : CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
- Power : DC12V(±25%), PoE+(IEEE802.3at)
- Power consumption : Max 14W Support overcurrent protection , Input short circuit protection
- Dimensions (Ø x H) : Φ306.4x104.1x98.1mm(Φ12.1’’x4.1’’x3.9’’)
- Net Weight : 1.65kg(3.64lb)
- Material : Metal
- Working Environment : -30°C ~60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Storage Environment : -40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
- Surge protection : 6KV
- Vandal Resistant : IK10
- Ingress Protection : IP67
Extra Information
- SKU: IPC264SADZK
- Warranty: 2 Years
- Brand: Uniview
- Megapixel: 4
- Technology: IP
- Camera Type: Bullet
- Product Type: Camera
- PDF: View PDF
