Tyco illustra ISE-B04F364-N Standard 4MP IR Mini Bullet Ip Camera
Tyco Illustra Camera ISE-B04F364-N H.265 4MP IR Bullet N/W Camera, 6mm, 50M IR, Micro SD, DC12V/PoE, IP67/IK10, IVA
Key Benefits
- 4MP resolution (2560×1440), H.265
- True day / night
- Up to 50m IR distance
- 3D DNR, HLC & BLC, WDR
- Triple streams
- Smart codec by ROI
- PoE power supply
- Basic intelligent video analytics
- IP67 / IK10
- NDAA Compliant
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...

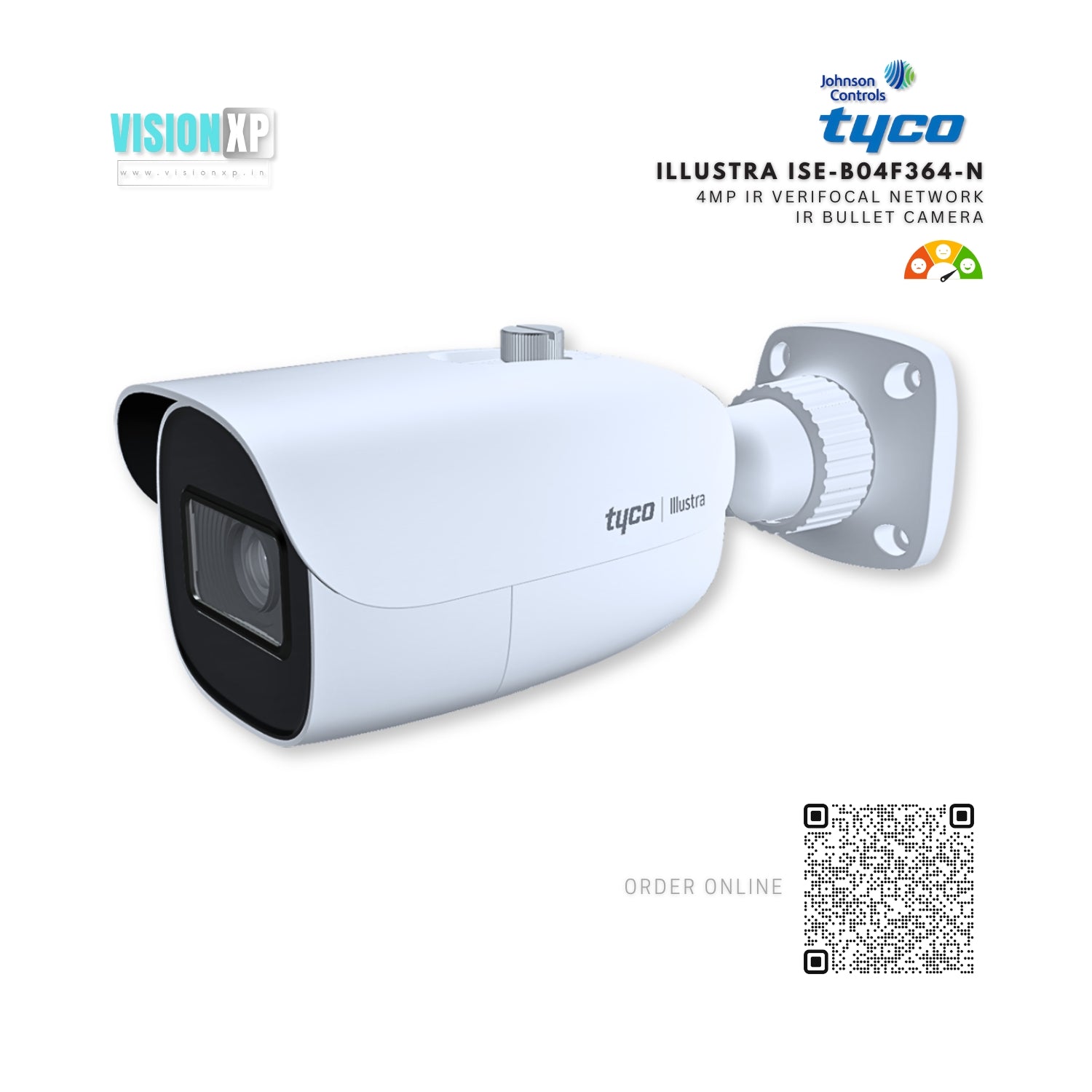

Tyco illustra ISE-B04F364-N Standard 4MP IR Mini Bullet Ip Camera
The illustra Standard Vandal Proof Mini Dome camera from Tyco offers resolution upto 4MP with inbuilt IR for operations in low light conditions. The affordable feature-rich camera supports intelligent video analytics (IVA) at the edge to cater to multiple site requirements. It captures high resolution images in variety of lighting conditions with features such as Auto Day/Night, Defog and Wide Dynamic Range. Rated IP67 & IK10 for an additional degree of environmental and vandal protection respectively.
Exceptional Image Quality : With 4MP @ 30fps the camera produces exceptionally high Image quality. It supports H.265/H.264 video compression, multi-level video streaming configuration, support Basic/ Main/ High Profile H.265 encoding complexity. This dome camera can support up to 128 GB Micro SD/SDHC/SDXC card storage and 10M/100M Ethernet Port.
Authentication Support for Higher Security : Illustra IP cameras have been designed to protect against cyber-threats. Additionally, for greater security, the Camera supports three-level user authentication– management, user and password authorization, IP address filtering and anonymous access. Basic authentication is supportable in Web browser configuration.
ONVIF Support : Camera supports ONVIF (Profile S & G) protocol, up to 3 streams providing flexibility of video stream recording, live view at different resolutions and bitrate configuration options.
|
Camera |
|
|
Image Sensor |
1 / 2.7” Progressive Scan CMOS |
|
Effective Pixels |
2560 × 1440 |
|
Min. Illumination |
Color: 0.01 Lux @ F1.2, AGC ON; Color: 0.04 Lux @ F2.2, AGC ON; 0 lux with IR |
|
Shutter Speed |
1 s to 1/100,000 s |
|
S/N Ratio |
≥52 dB |
|
Angle Adjustment |
Any angle |
|
Lens |
|
|
Focal Length |
6 mm @ F2.0, 3.6 mm @ F2.2 |
|
Iris Type |
Fixed Iris |
|
Field of View |
6 mm @ F2.0, horizontal field of view:110°,Vertical: 77.6°; 3.6 mm@F2.2, horizontal field of view: 89°, Vertical: 58° |
|
Lens Mount |
M12 |
|
Video |
|
|
Video Compression |
H.265 / H.264 |
|
H.264 Compression Standard |
Base Line / Main Profile / High Profile |
|
H.265 Compression Standard |
Main Profile @ Leve4.1 High Tier |
|
Resolution |
4MP(2560×1440), 1080P(1920x1080), 720P(1280x720), D1, CIF, 480 x 240 |
|
Max. Frame Rate |
30fps @ 4MP (2560×1440) |
|
Video Bit Rate |
64Kbps - 5 Mbps |
|
Multiple Streaming |
Triple streams |
|
Main Stream |
60Hz: 4MP/3MP/1080P(1-30fps); 50Hz: 4MP/3MP/1080P(1-25fps) |
|
Sub Stream |
60Hz: 720P(1-15fps)/D1 /CIF (1-30fps); 50Hz: 720P(1-12fps)/D1/CIF (1-25fps) |
|
Third Stream |
60Hz: D1/CIF/480x240 (1-30fps); 50Hz: D1/CIF/480x240 (1-25fps) |
|
Smart Codec |
ROI, 3 zones |
|
Quality Control |
Five levels under VBR; Freely adjustable under CBR |
|
Image Setting |
time stamp, text overlay, flip & mirror, ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, white balance, video rotation, Scheduled profile settings, AGC |
|
Operational |
|
|
Day & Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
Yes |
|
IR Distance |
Up to 50M |
|
Digital Zoom |
Yes |
|
Image Features |
Defog, BLC, HLC, 2D/3D DNR |
|
Corridor Pattern |
Yes |
|
Video Privacy |
4 zones video mask |
|
Intelligent Video Analytics |
Object removal (object left/missing detection), scene change and video blur detection, intrusion and line crossing |
|
Alarm Triggers |
Motion detection, Intelligent video analytics, Network disconnect, video tampering, IP address conflict, illegal login, SD Card full, SD Card error, Alarm input, Alarm output |
|
Edge Storage |
Built-in micro SD card slot, up to 128GB |
|
Network |
|
|
Network Protocol |
TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, UPnP, Unicast, Multicast, ICMP, HTTP, HTTPS, DNS, DDNS, RTP, RTCP, IGMP, 802.1X, QoS, Ipv4, Ipv6 |
|
Cyber Security |
HTTPS / IP Filter / IEEE 802.1X / Blacklist & whitelist / account security / telnet access control / serial password |
|
Online Connection |
Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
|
Remote Monitoring |
Webviewer browsing, Holis Pro, Holis Lite, ExacqVision, Victor |
|
API |
ONVIF Profile (S & G), HAPI3 |
|
Interface |
|
|
Network |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
Onboard Storage |
Built-in micro SD/SDHC/SDXC slot |
|
Hardware Reset |
Yes |
|
Environmental |
|
|
Operating Temperature |
- 30 °C to 60 °C |
|
Operating Humidity |
10 % to 90 % relative humidity |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
IK10 |
|
General |
|
|
Power Supply |
DC12V / PoE |
|
Power Consumption |
< 10W |
|
Dimensions (mm) |
225.7x86.7x83.8 |
|
Material |
Metals |
|
Weight |
≈ 0.65kg |
|
Installation |
Wall mounting, ceiling mounting |
|
Warranty |
3 years |
|
Regulatory |
|
|
Emissions |
FCC Part 15.107 Class A, FCC Part 15.109 Class A , EN 55032, EN 55035 (IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8) |
|
Immunity |
EN 55030-4 |
|
Safety |
UL 62368-1, IEC 62368-1 EN 62368-1, CAN/CSA C22.2 No. 62368-1-14, J62368-1, AS/NZA 62368.1 |
|
Environment |
RoHS (IEC 62321-3-1, IEC 62321-5, IEC 62321-4, IEC 62321-6, IEC 62321-7, IEC 62321-7-2, IEC 62321-8), WEEE, REACH |
|
NDAA Compliant |
Yes |
Ordering Information
|
|
Model Number |
Description |
|
Camera |
ISE-B04F284-N |
H.265 4MP IR Bullet N/W Camera, 6mm, 50M IR, Micro SD, DC12V/PoE, IP67/IK10, IVA |
|
Camera |
ISE-B04F364-N |
H.265 4MP IR Bullet N/W Camera, 3.6mm, 50M IR, Micro SD, DC12V/PoE, IP67/IK10, IVA |
|
Accessories |
ISMNBCB01 |
Conduit Box for mini IR Bullet |
|
Accessories |
ISMNBBB01 |
Backbox for mini IR Bullet |
|
Accessories |
ISMNBPD01 |
Pendant mount for mini IR Bullet (use with ISMNBCB01) |
|
Accessories |
ISMNBPM01 |
Pole mount for mini IR Bullet (use with ISMNBCB01) |
|
Accessories |
ISMNBCM01 |
Corner mount for mini IR Bullet (use with ISMNBCB01) |
