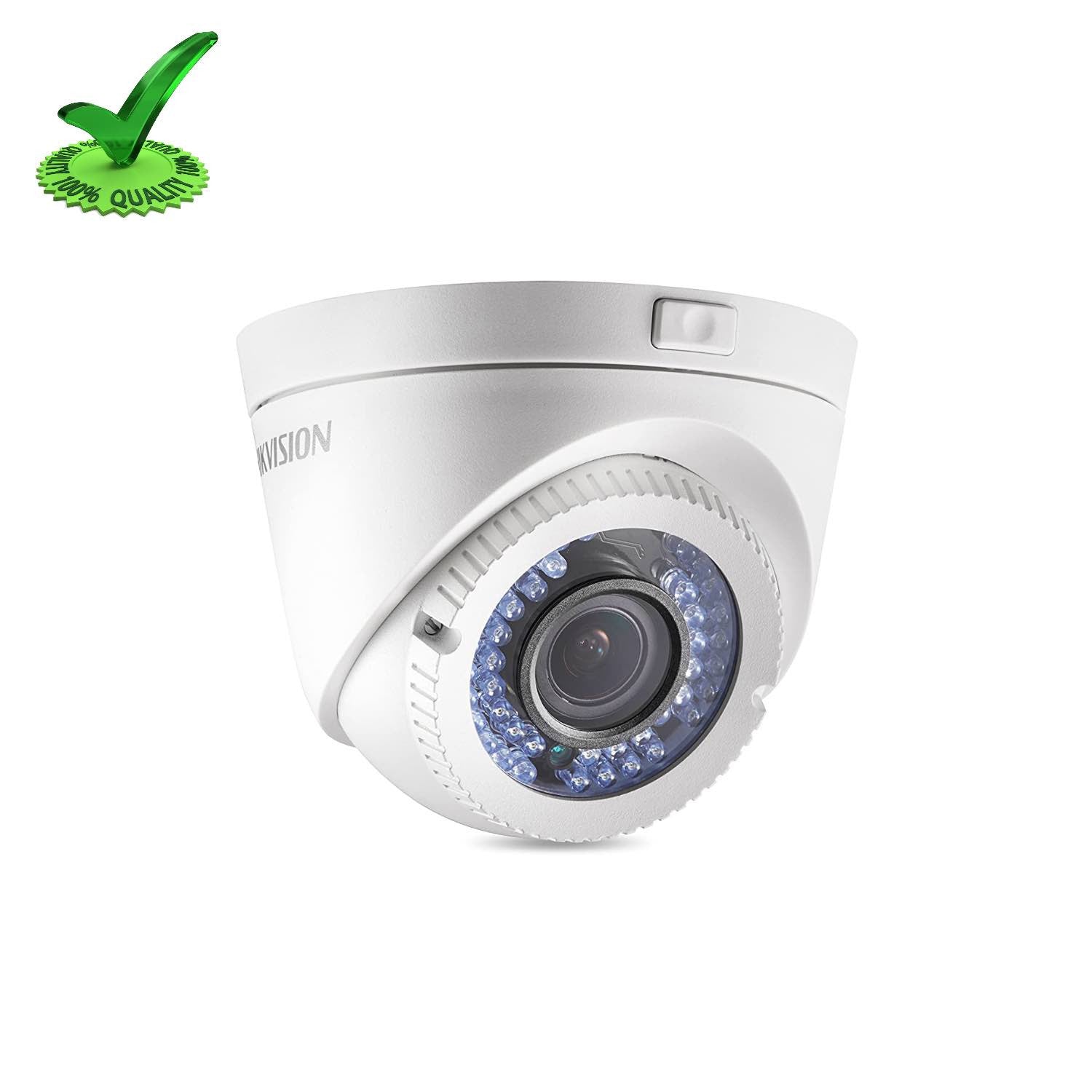

Hilvision DS-2CE5AD0T-VFIR3F 2MP HD Dome Camera

Camera Specification

• Image Sensor : 2MP CMOS image sensor
• Signal System : PAL/NTSC
• Effective Pixels : 1920 (H) × 1080 (V)
• Min. illumination : 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR
• Shutter Time : 1/25 (1/30) s to 1/50,000 s
• Lens : 2.8 - 12 mm @ F1.4, Angle of view: 102.25° - 32 °
• Lens Mount : Φ14
• Day & Night : ICR
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Synchronization : Internal synchronization
• Video Frame Rate : 1080p@25fps/1080p@30fps
• HD Video Output : 1 analog HD output
• S/N Ratio : >62 dB

General

Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
Power Supply : 12 VDC±15%
Power Consumption : Max. 4 W
Protection Level : IP66
IR Range : Up to 40 m
Dimensions : Φ130.54 × 102.4mm (Φ5.1” × 4”)
Weight : Approx. 710g

Extra Information

• SKU: DS2CE5ADOTVFIR3F
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 2
• Technology: Analogue
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
