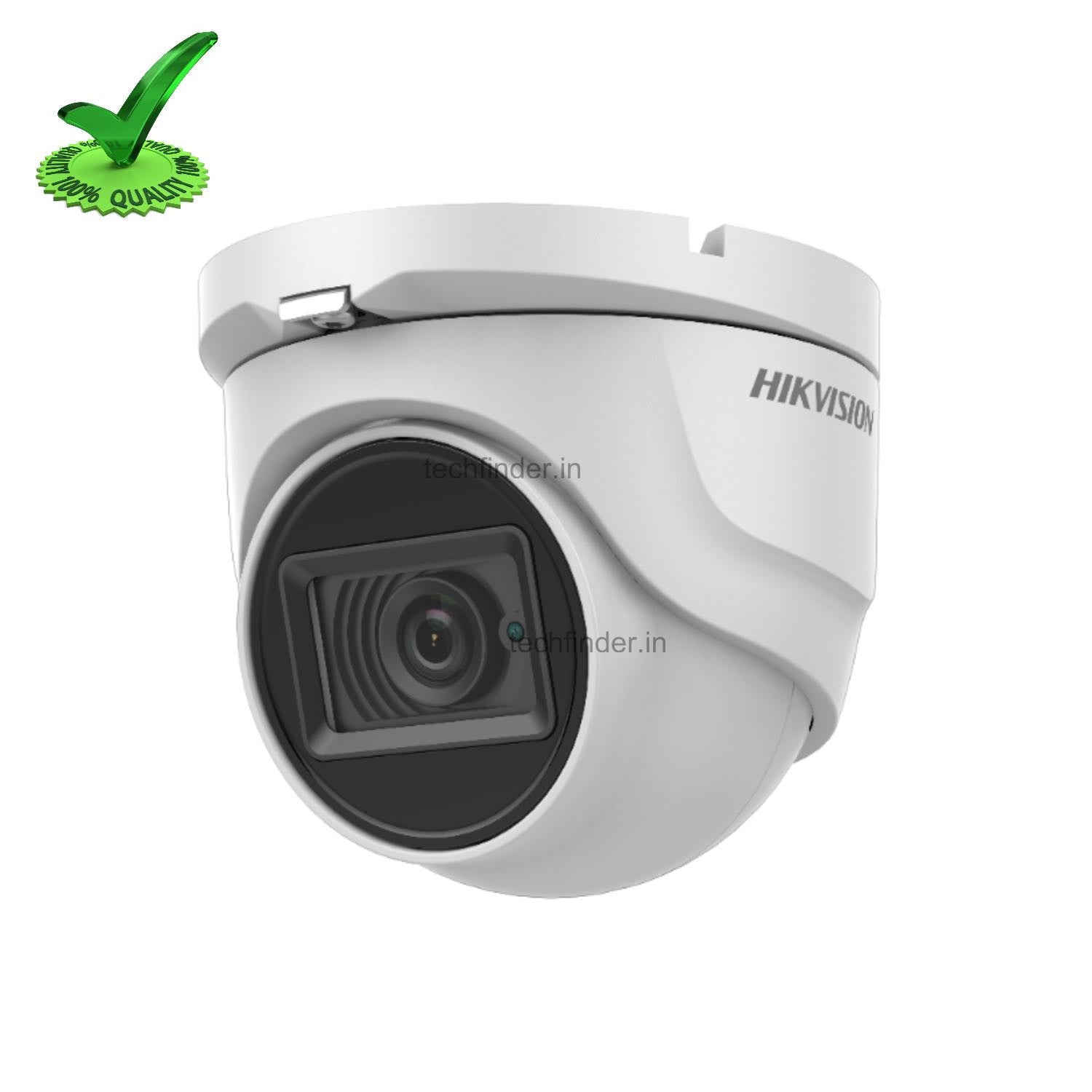

Hikvision DS-2CE76U1T-ITMF 8.29MP Fully Metal HD Dome Camera

Camera Specification

• Image Sensor : 8.29 megapixel progressive scan CMOS
• Signal System : PAL/NTSC
• Frame Rate : TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,, 2MP@30fps, CVI: 8MP@12.5fps, 8MP@15fps, AHD: 8M@12.5fps, 8M@15fps, CVBS: 960H P/N
• Resolution : 3840 (H) × 2160 (V)
• Min. Illumination : Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time : PAL: 1/12.5 s to 1/50,000 s, NTSC: 1/15 s to 1/50,000 s
• Lens : 2.8 mm, 3.6 mm, 6 mm fixed lens
• Horizontal Field of View : 102.2°(2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
• Lens Mount : M16
• Day & Night : IR cut filter
• Angle Adjustment (Bracket) : Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
• Synchronization : Internal synchronization
• DWDR (Digital Wide Dynamic Range) : 105 dB

Menu

• AGC : Yes
• Day/Night Mode : Auto/Color/BW (Black and White)
• White Balance : Auto/Manual
• BLC (Backlight Compensation) : Yes
• Language : English
• Functions : Brightness, Sharpness, DNR, Mirror, Smart IR, HLC

Interface

• Video Output : 1 HD analog output
• Switch Button : TVI/AHD/CVI/CVBS

General

• Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply : 12 VDC ±25%
• Power Consumption : Max. 5.3 W
• Protection Level : IP67
• Material : Metal
• IR Range : Up to 30 m
• Communication : Up the coax, Protocol: HIKVISION-C (TVI output)
• Dimensions : 90 mm × 79.37 mm (3.54" × 3.12" )
• Weight : Approx. 310 g (0.68 lb.)

Extra Information

• SKU: DS2CE76U1TITMF
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 8
• Technology: Analogue
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
