- Hikvision DS-2CD3643G1-IZ(S) 4 MP IP IR DC Drive 2.7 to 13.5 mm Varifocal Network Outdoor POE Bullet Camera Hikvision DS-2CD3643G1-IZ(S) 4 MP IP IR DC Drive 2.7 to 13.5 mm Varifocal Network Outdoor POE Bullet Camera

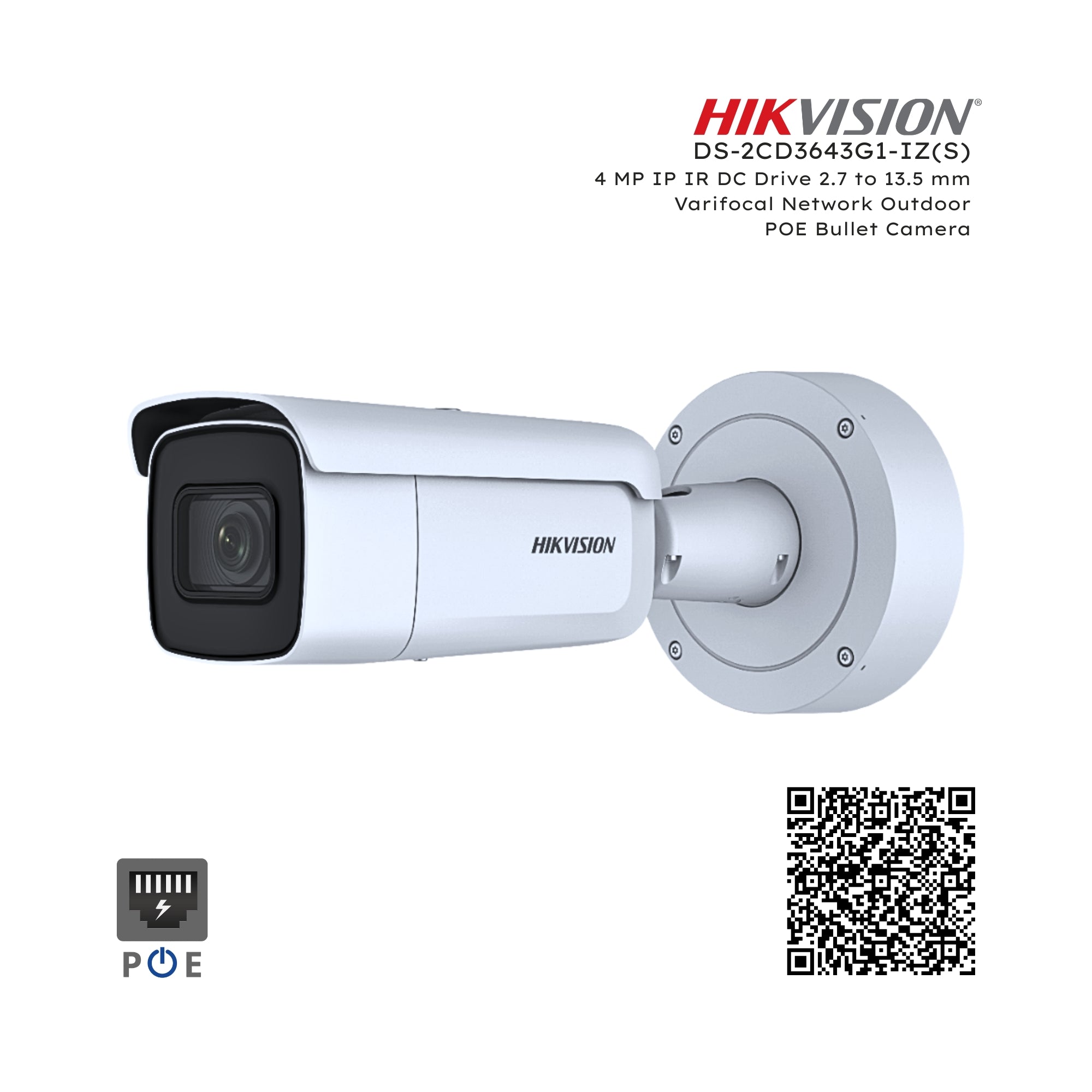

Hikvision DS-2CD3643G1-IZ(S) 4 MP IP IR DC Drive 2.7 to 13.5 mm Varifocal Network Outdoor POE Bullet Camera
Key Features
- 1/3" Progressive Scan CMOS
- 2688 × 1520 @30fps
- 2.7 to 13.5 mm varifocal lens
- Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- H.265+, H.265, H.264+, H.264
- Three streams
- 120dB WDR
- Junction box included in the package
- BLC/3D DNR/ROI/HLC
- IP67
- Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
- 3-Axis adjustment
- Metadata of intrusion detection, line crossing detection, unattended baggage detection, and object removal are supported.
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
- Description
- Reviews
|
Camera |
|
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Slow Shutter |
Yes |
|
Day & Night |
IR Cut Filter |
|
Digital Noise Reduction |
3D DNR |
|
WDR |
120dB |
|
3-Axis Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|
Lens |
|
|
Focal length |
2.7 to 13.5 mm |
|
Aperture |
F1.6 |
|
Focus |
Auto |
|
Auto-Iris |
DC drive |
|
FOV |
Horizontal FOV: 106° to 27°, vertical FOV: 56° to 16°, diagonal FOV: 128° to 31° |
|
Lens Mount |
Φ14 |
|
IR |
|
|
IR Range |
Up to 60 m |
|
Wavelength |
850nm |
|
Compression Standard |
|
|
Video Compression |
Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
|
H.264 Type |
Main Profile/High Profile |
|
H.264+ |
Main stream supports |
|
H.265 Type |
Main Profile |
|
H.265+ |
Main stream supports |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Smart Feature-set |
|
|
Smart Event |
Line crossing detection, 1 line configurable Intrusion detection, up to 1 region configurable Unattended baggage detection, 1 region configurable Object removal detection, 1 region configurable Face detection: detects faces Scene change detection |
|
Basic Event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
|
Linkage Method |
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output (-S), Email |
|
Region of Interest |
Support 5 fixed regions for main stream and sub-stream |
|
Image |
|
|
Max. Resolution |
2688 × 1520 |
|
Main Stream |
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280×720) |
|
|
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280×720) |
|
Sub-Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Third Stream |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
|
Image Enhancement |
BLC/3D DNR/HLC |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
|
Target Cropping |
Yes |
|
Day/Night Switch |
Day/Night/Auto/Schedule/Triggered by alarm in (-S) |
|
Network |
|
|
Network Storage |
MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
|
General Function |
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
|
API |
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
|
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
|
Simultaneous Live View |
Up to 6 channels |
|
User/Host |
Up to 32 users 3 levels: Administrator, Operator and User |
|
Client |
iVMS-4200, Hik-Connect, Hik-Central |
|
Web Browser |
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
|
Interface |
|
|
Audio (-S) |
1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
Alarm (-S) |
1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
|
Video Output |
1Vp-p composite output(75Ω/BNC) (For adjustment only) |
|
On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
|
Reset Button |
Yes |
|
Audio (-S) |
|
|
Environment Noise Filtering |
Yes |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Audio Compression |
G722.1/G.711/G726/MP2L2/PCM/MP3 |
|
Audio Bit Rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
|
General |
|
|
Web Client Language |
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|
Operating Conditions |
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25%, terminal block PoE (802.3at, class 4) |
|
Power Consumption and Current |
12 VDC, 1.2A, max. 14.5W PoE (802.3at, 42.5V to 57V), 0.43A to 0.3A, max. 18W |
|
Protection Level |
IP67, IK10 |
|
Accessory |
The junction box is included in the package |
|
Material |
Front cover: metal, back cover: metal |
|
Dimensions |
Camera: Φ140 × 334.6 mm (Φ5.5"× 13.2") |
|
Weight |
Camera: 1300 g (2.9 lb.) With package: 2000 g (4.4 lb.) |
Available Model:
DS-2CD3643G1-IZ(2.7 to 13.5 mm), DS-2CD3643G1-IZS(2.7 to 13.5 mm)
|
