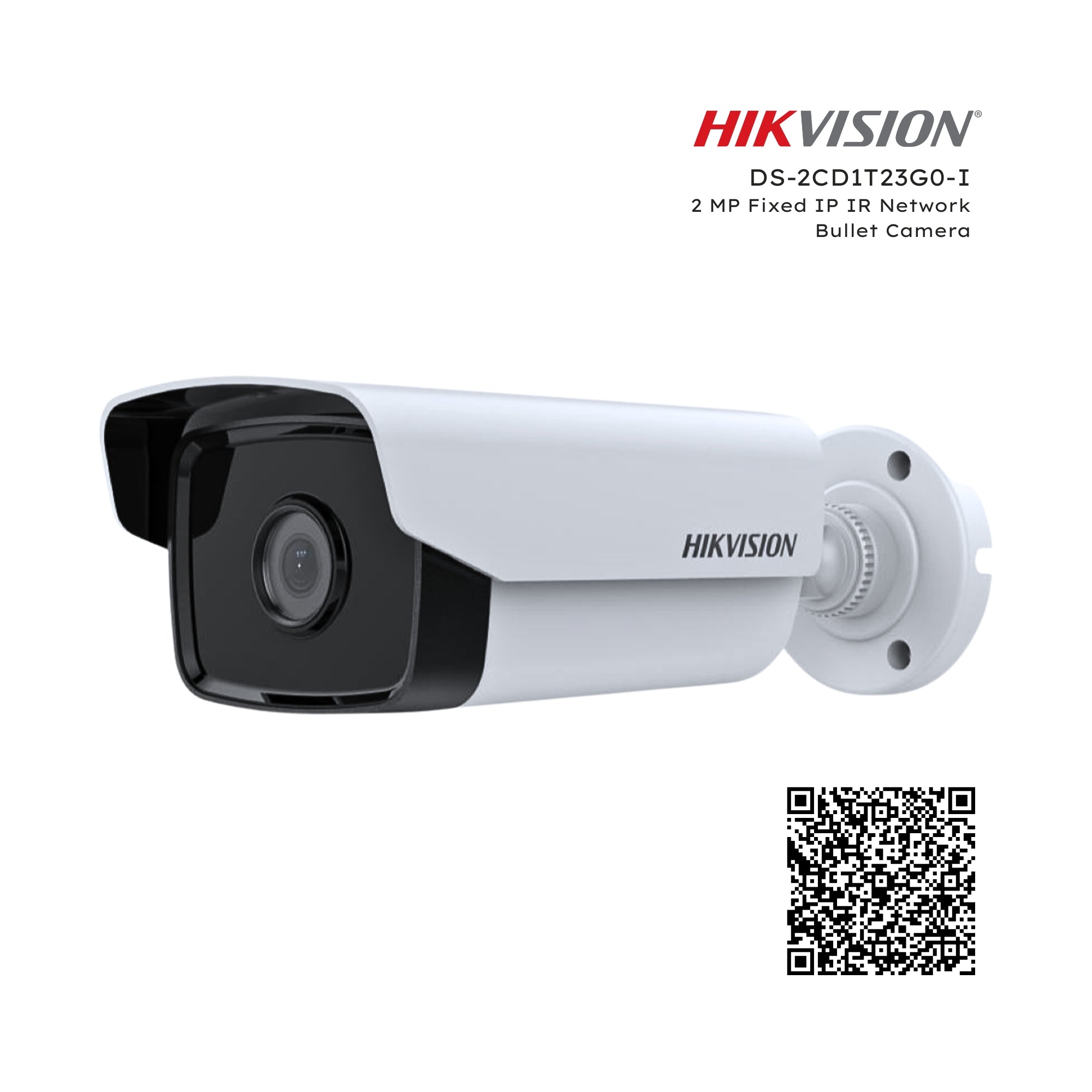

Hikvision DS-2CD1T23G0-I 2 MP Fixed IP IR Network Bullet Camera
Key Features
- High quality imaging with 2 MP resolution
- Clear imaging against strong back light due to DWDR technology
- Efficient H.265+ compression technology
- Water and dustresistant (IP67)
- Easy installation with Power over Ethernet (PoE) technology
- 3D DNR technology delivers clean and sharp images
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic RangeDigital WDR
- Day & NightICR Cut
- Linkage MethodUpload to FTP, notify surveillance center, send email, trigger capture
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
- Lens Type & FOV4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 103°; 6mm, horizontal FOV 54°, vertical FOV 31°, diagonal FOV 63°
- ApertureF2.0
- Lens MountM12
Illuminator
- IR Range50 m
- Wavelength850nm
- Smart Supplement LightYes
Video
- Max. Resolution1920 × 1080
- Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Video Compression Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Stream TypeMain stream/Sub-stream
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- SNR> 50 dB
Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Intelligent (Traditional Algorithm)
- Basic Event Motion detection, video tampering alarm, exception (illegal login)
General
- Firmware VersionV5.5.84
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection
- Power Consumption And Current12 VDC, 0.40 A, max. 4.8 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6 W
- Power InterfaceΦ5.5 mm coaxial power plug
- MaterialFront cover & bracket: metal; back cover & sun shield: plastic
- Camera Dimension71.67 × 92.87 × 221.49 mm (2.82" × 3.65" × 8.72")
- Package Dimension234 × 120 × 117 mm (9.21" × 4.72" × 4.61")
- Camera Weight540 g (1.19 lb.)
- With Package Weight810 g (1.79 lb.)
Approval
- ProtectionIngress protection: IP67 (IEC 60529-2013)
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
