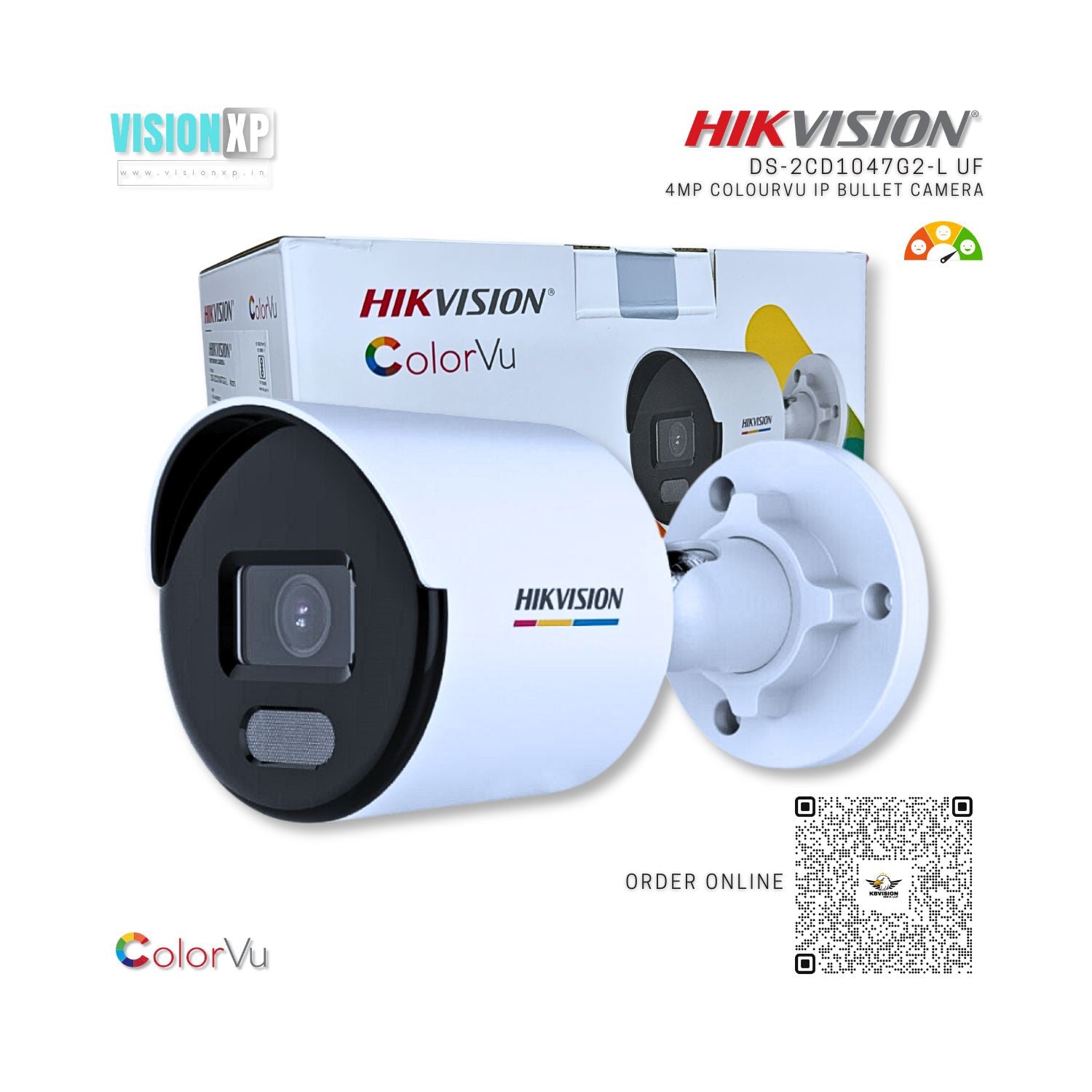

Hikvision DS-2CD1047G2-L UF 4MP ColorVu Fixed Bullet Network IP Camera Lowest Price Buy Online Store

Specification

Camera

• Image Sensor : 1/3" Progressive Scan CMOS
• Max. Resolution : 2560 × 1440
• Shutter Time : 1/3 s to 1/100,000 s
• Min. Illumination : Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
• Day & Night : 24/7 color imaging
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type : Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV : 2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113° 4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°
• Lens Mount : M12
• Iris Type : Fixed
• Aperture : F1.0
• Depth of Field : 2.8 mm: 2 m to ∞ 4 mm: 2.7 m to

DORI

• DORI : 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Illuminator

• Supplement Light Type : White Light
• Supplement Light Range : Up to 30 m
• Smart Supplement Light : Yes

Video

• Main Stream : 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
• Sub-Stream : 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression : Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile, Main Profile, High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR, VBR
• Region of Interest (ROI) : 1 fixed region(s) for main stream

Audio

• Audio Type : -U: Mono sound
• Environment Noise Filtering : -U: Yes
• Audio Sampling Rate : -U: 8 kHz/16 kHz
• Audio Compression : -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate : -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

• Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
• User/Host : Up to 32 users 3 user levels: administrator, operator, and user
• Security : Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Client : iVMS-4200, Hik-Connect
• Web Browser : Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR) : 120 dB
• SNR : ≥ 52 dB
• Day/Night Switch : Day, Night, Auto, Schedule
• Image Enhancement : BLC, HLC, 3D DNR
• Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
• adjustable by client software or web browser
• Privacy Mask : 4 programmable polygon privacy masks

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Built-in Microphone : -U: Yes
• Reset Key : -F: Yes

Event

• Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Linkage : Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

General

• Power : 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Material : Aluminum alloy body
• Dimension : Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5")
• Package Dimension : 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
• Weight : -L: Approx. 410 g (0.9 lb.) -LUF: Approx. 430 g (0.9 lb.)
• With Package Weight : -L: Approx. 630 g (1.4 lb.) -LUF: Approx. 650 g (1.4 lb.)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions. : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language : English, Ukrainian
• General Function : Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

• EMC : FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014 RCM: AS/NZS CISPR 32: 2015 KC: KN32: 2015, KN35: 2015
• Safety : UL: UL 62368-1 CB: IEC 62368-1: 2014 + A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment : CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
• Protection : IP67: IEC 60529-2013

Typical Application

• Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level - Description

• Top-level protection : Hikvision products at this level are equipped for use in areas where professional anti- corrosion protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and more.
• Moderate protection : Hikvision products at this level are equipped for use in areas with moderate anti- corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain.
• No specific protection : Hikvision products at this level are equipped for use in areas where no specific anti- corrosion protection is needed.

Available Model

• DS-2CD1047G2-LUF (2.8/4 mm)
• DS-2CD1047G2-L (2.8/4 mm)

Extra Information

• SKU: DS2CD1047G2LUF
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 4
• Technology: IP
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
