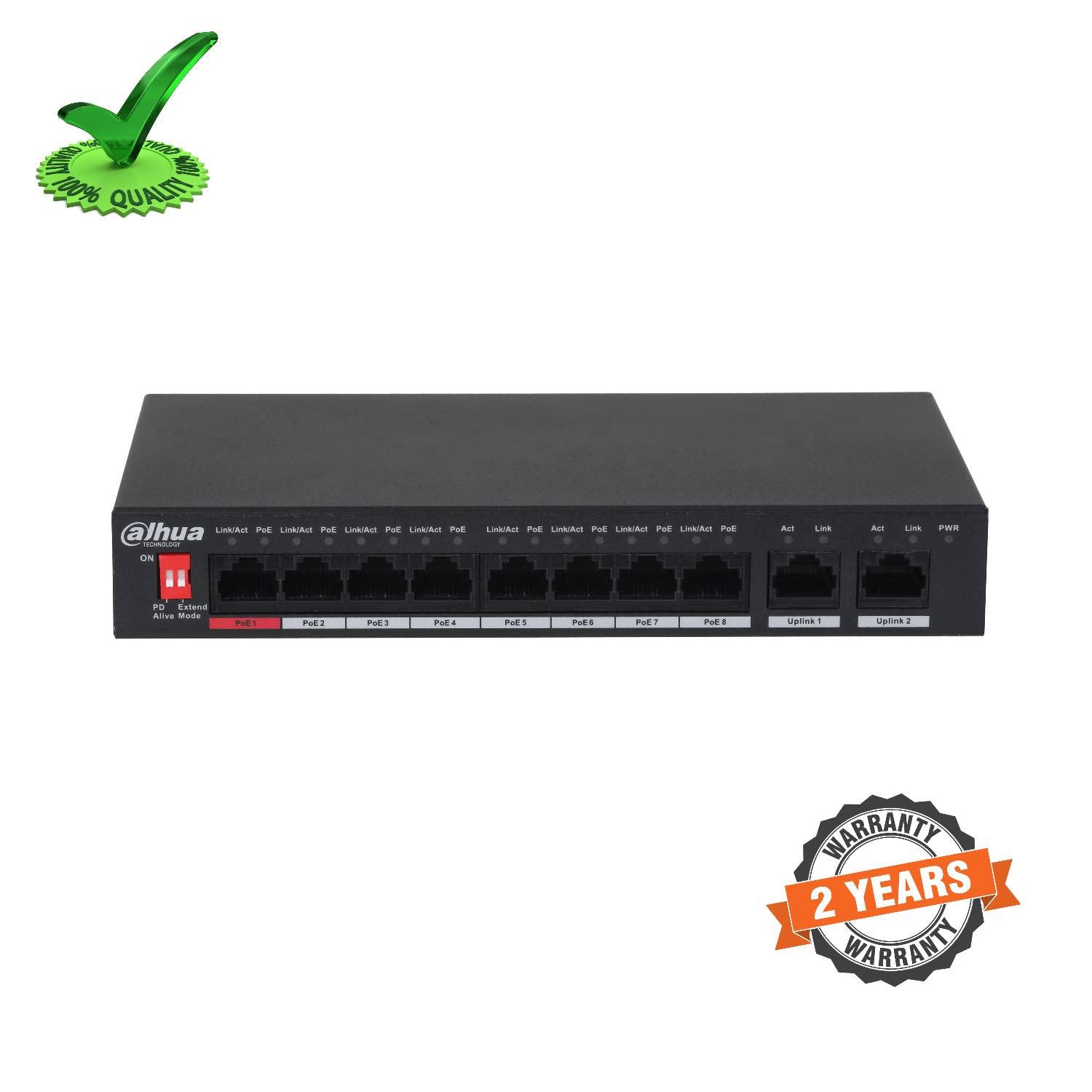

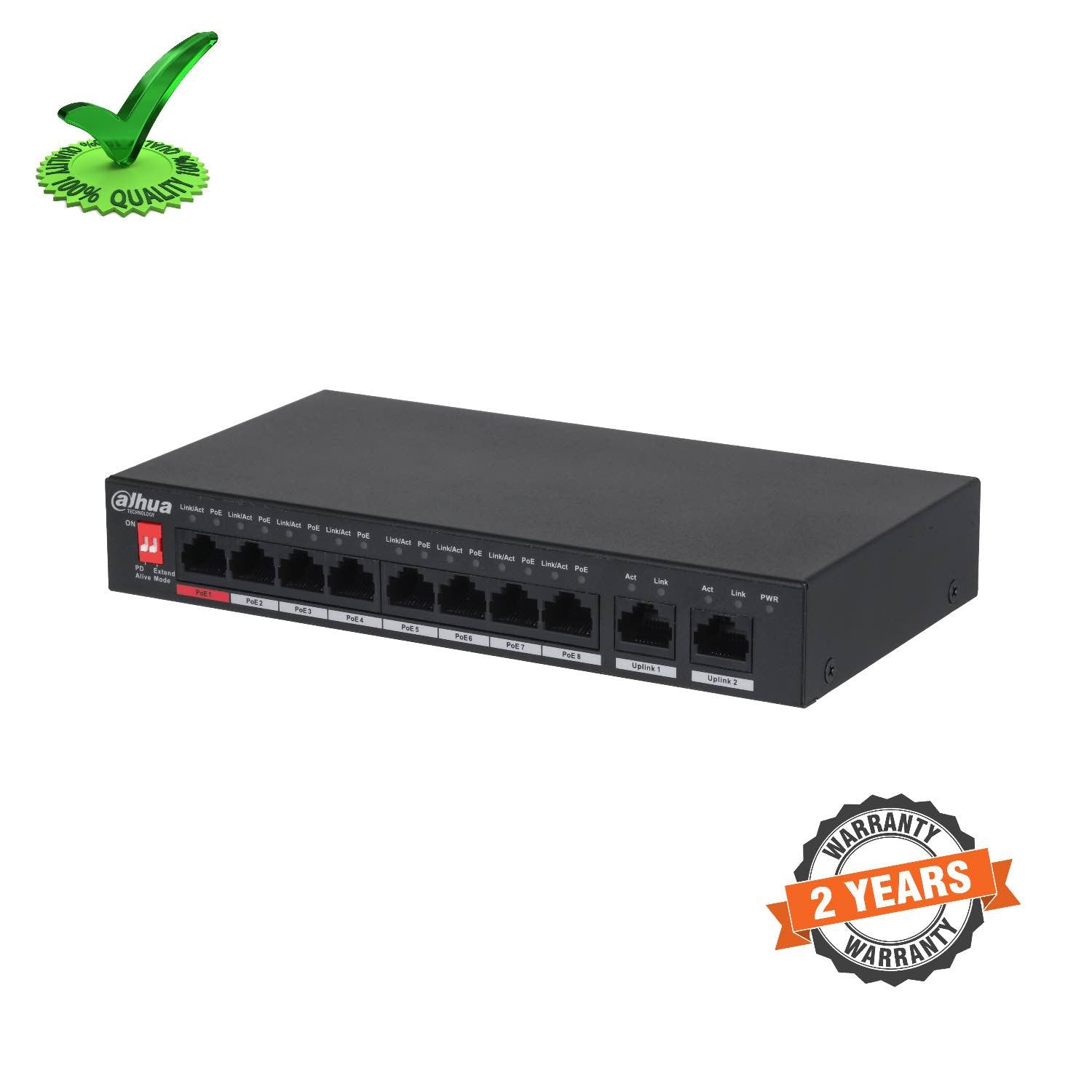

Dahua DH-PFS3010-8ET-96 10-Port Switch with 8-Port PoE

Dahua DH-PFS3010-8ET-96 10-Port Switch with 8-Port PoE

• As an access layer PoE switch, DH-PFS3010-8ET-96 supports simultaneous access of up to 8 cameras, and is applicable for monitoring scenarios such as office, school, hotel, supermarket, and hospital.

System Overview

• DH-PFS3010-8ET-96 provides eight 100 Mbps PoE Ethernet ports and two gigabit Ethernet ports.

Functions

Rich Port Types

• Eight 10/100 Mbps Base-T PoE Ethernet ports; two 10/100/1000 Mbps Base-T Ethernet ports.

Intelligent PoE

• The switch features intelligent PoE power consumption management to help keep the power and data flowing, even when the switch experiences a power fault. Intelligent PoE monitors the power consumption of the connected devices, and in the event of large power fluctuations, the switch shuts down one port at a time rather than shutting down all ports. Unlike typical switches that shut down all ports as once, this switch shuts down the highest number port first, then the next highest number until the switch detects the power consumption is below the PoE budget.

BT 90W

• The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90 W.

PoE Watchdog

• The switch employs an innovative PoE watchdog function that automatically detects a network port failure and restarts network communication on the port. This functionality avoids manual maintenance and network restarts, saving time and reducing costs.

Long Distance PoE

• Long-distance PoE transmission extends the maximum transmission distance to 250 m (from 100 m), but reduces transmission speed to a maximum of 10 Mbps (from 1000 Mbps).

8-pin Assignment PoE Power Supply

• The 8-pin Ethernet port supports power supply, to enhance front-end and rear-end compatibility. Reduce cable loss and promote loading capacity.

Scene

• Applicable for office, school, hotel, supermarket, hospital, and other micro-scale monitoring network.

Specification

Hardware

• Ethernet Port : 8
• Optical Port : 0
• Ethernet Port Speed : 100 Mbps
• Data Transmission Port : Port 1–8: 8 × RJ-45 10/100 Mbps (PoE), Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)
• Power Supply : 53V DC
• Operaing Temperature : –10°C to +55°C (+14°F to +131°F)
• Operating Humidity : 5%–95% (RH)
• Storage Temperature : –20°C to +70°C (–4°F to +158°F)
• Storage Humidity 5%RH–95%RH
• Power Consumption : Idling: 3.0W, Full load: 96W

Performance

• Capacity : 5.60 Gbps
• Packet Forwarding Rate : 4.17 Mpps
• Packet Buffer Memory : 4 Mbit
• MAC Table Size : 8K
• Communication Standard : IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE 802.3ab

PoE

• PoE Standard : IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
• PoE Power : 96W
• Power Consumption Management : Yes
• PoE Pin Assignment : 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• Long Distance : PoE 250 m long distance PoE transmission

General

• Statics Protection : Air discharge: 8kV, Contact discharge: 6kV
• Thunder-proof : Common mode: 4kV, Differential mode: 2kV
• Net Weight : 0.50 kg (1.10 lb)
• Gross Weight : 1.32 kg (2.91 lb)
• Product Dimensions : 190mm×100mm×30mm(7.48"×3.94"×1.18") (W×L×H)
• Packing Dimensions : Packing box:266mm×239mm×77mm(10.47×9.41"×3.03")(L × W × H)Protective box: 549mm×253mm×331mm(21.61"×9.96"×13.03")(L×W×H)

Extra Information

• SKU: DHPFS30108ET96
• Warranty: 2 Years
• Brand: Dahua
• Technology: IP
• Product Type: POE
• PDF: View PDF
