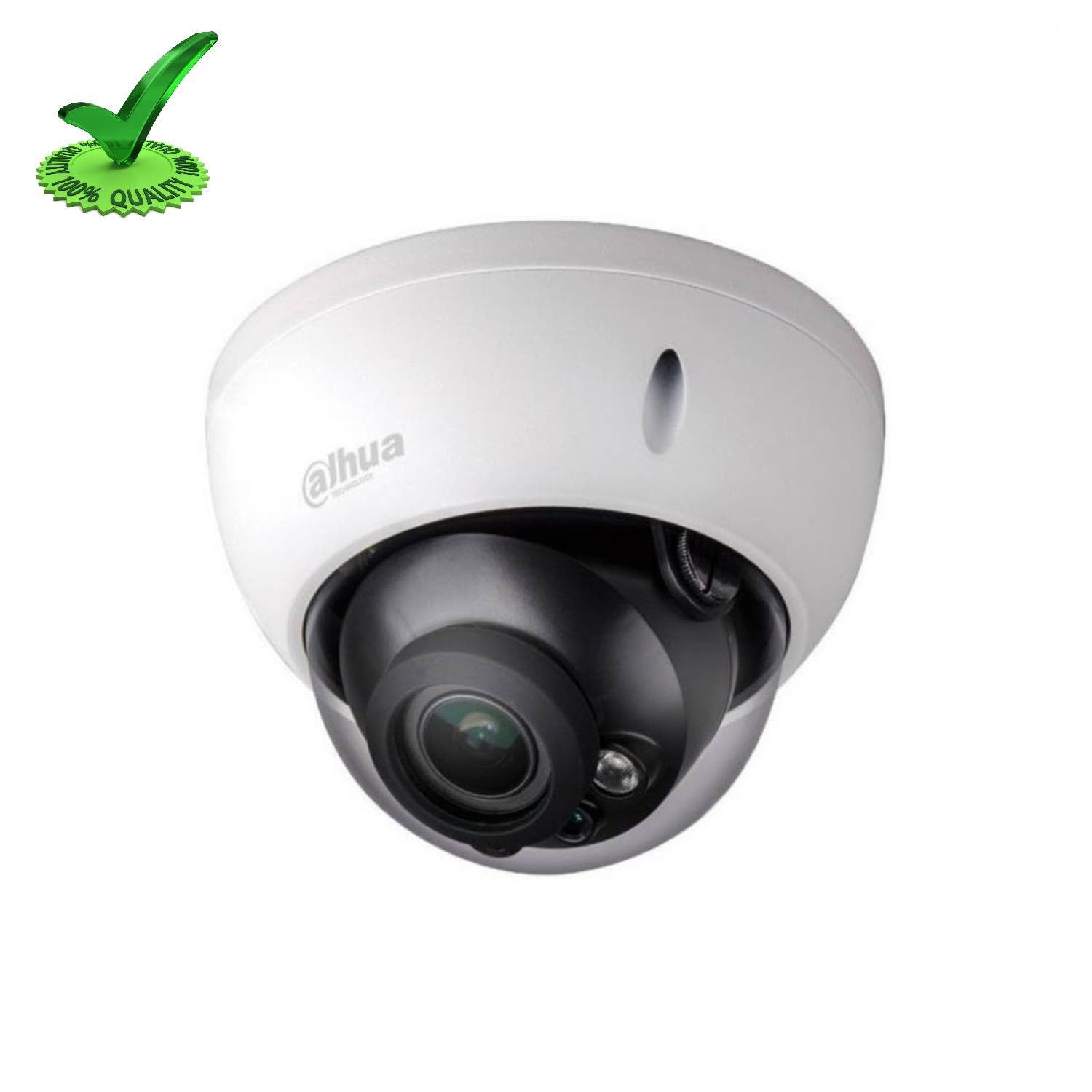

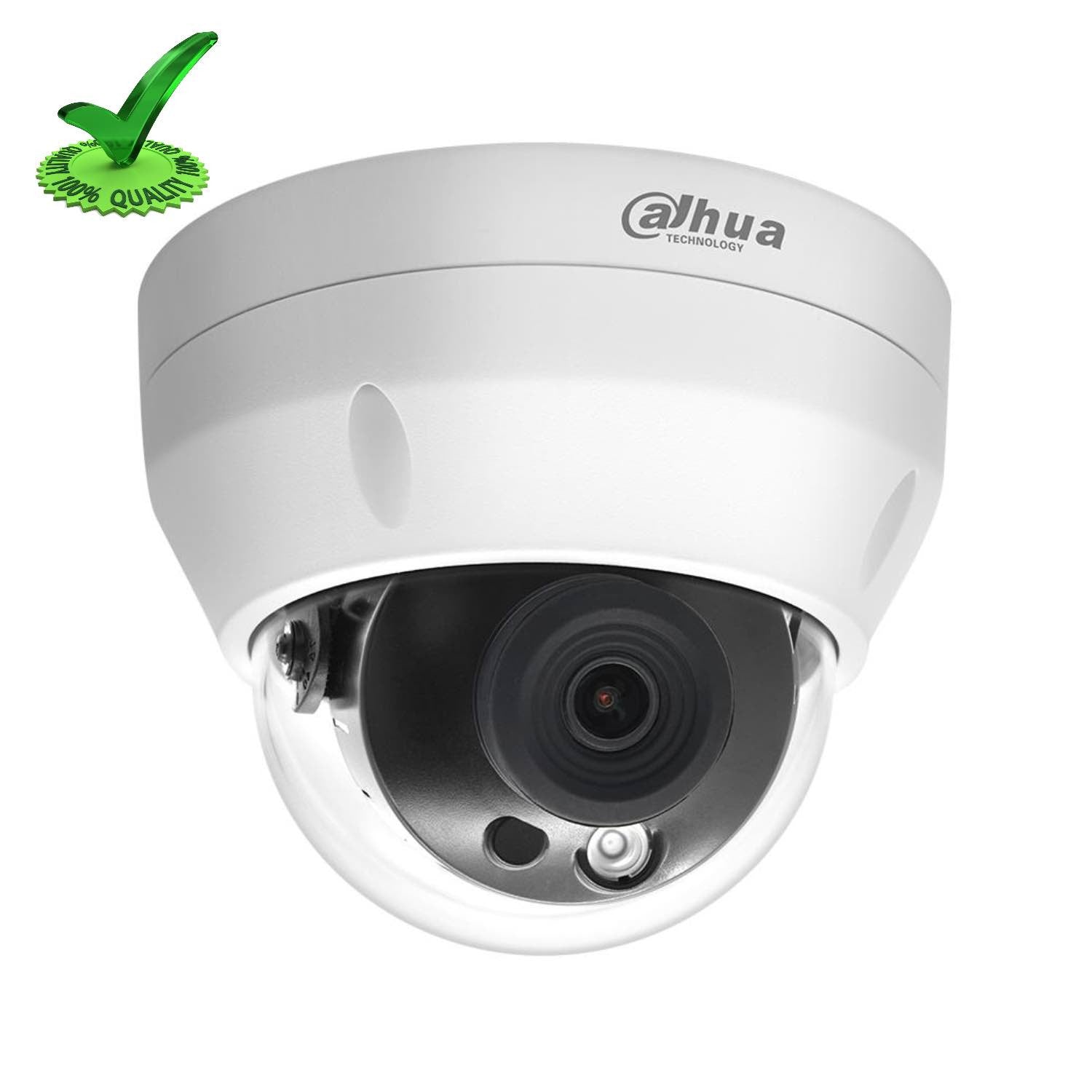

Dahua DH-IPC-HDPW1431R1P-S4 4MP IP Dome Camera

System Overview

• With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.

Functions

Smart (H.265+&H.264+)

• With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Motion Detection

• When moving objects appear in the monitoring image, Dahua Motion Detection (General) technology triggers alarm or records.

Wide Dynamic Range (WDR)

• With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Smart IR

• Dahua Smart IR technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts IR LEDs intensity automatically to display the details of the moving target.

Protection (IP67, wide voltage)

• IP67: The camera passes a series of strict test on dust and soak. It has dust-prooffunction,andtheenclosurecanworksnormalaftersoaking in 1 m deep water for 30 minutes.
• Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Technical Specification

Camera

• Image Sensor : 1/3”4Megapixel progressive CMOS
• Effective Pixels : 2688 (H) ×1520 (V)
• ROM : 128 MB
• RAM : 128 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100000 s
• Min. Illumination : 0.03 Lux @ F2.0
• IR Distance : 30 m (98.4 ft)
• IR On/Off Control : Auto/Manual
• IR LEDs Number : 1
• Pan/Tilt/Rotation Range : Horizontal: 0°–355° Vertical: 0°–75° Rotation: 0°–355°

Lens

• Lens Type : Fixed-focal
• Mount Type : M12
• Focal Length : 2.8 mm 3.6 mm
• Max. Aperture : F2.0
• Field of View : 2.8 mm: Horizontal: 93° Vertical: 53° Diagonal: 111° 3.6 mm: Horizontal: 81° Vertical: 44° Diagonal: 95°
• Iris Type : Fixed aperture
• Close Focus Distance : 2.8 mm: 0.8 m (2.6 ft)

Video

• Video Compression : H.265; H.264; H.264B; MJPEG
• Smart Codec : Yes
• Video Frame Rate : Main Stream; 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub Stream; 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps)
• Stream Capability : 2 streams
• Resolution : 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240)
• Bit Rate Control : CBR; VBR
• Video Bit Rate : H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• White Balance : Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control : Manual/Auto
• Noise Reduction : 3D DNR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest(RoI) : Yes (4 areas)
• Smart IR : Yes
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution.)
• Mirror : Yes
• Privacy Masking : 4 areas

Network

• Network : RJ-45 (10/100 Base-T)
• Protocol : HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
• Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
• User/Host : 20
• Edge Storage : Dahua Cloud; FTP; SFTP; NAS
• Browser : IE Chrome Firefox
• Management Software : Smart PSS; DSS; DMSS
• Mobile Phone : IOS; Android

Certification

• Certifications : CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Power

• Power Supply : 12V DC/POE (802.3af)
• Power Consumption : < 4.9W

Environment

• Operating Conditions : -40°C to +55°C (-40°F to +131°F) /less than≤95%
• Strorage Conditions : -40°C to +60°C (-40°F to +140°F)
• Ingress Protection : IP67

Structure

• Casing : Plastic
• Dimensions : 98.1 mm × Φ122 mm (3.9" × Φ4.8")
• Net Weight : 0.35 kg (0.8 lb)
• Gross Weight : 0.53 kg (1.2 lb)

Extra Information

• SKU: DHIPCHDPW1431R1PS4
• Warranty: 2 Years
• Brand: Dahua
• Megapixel: 4
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
