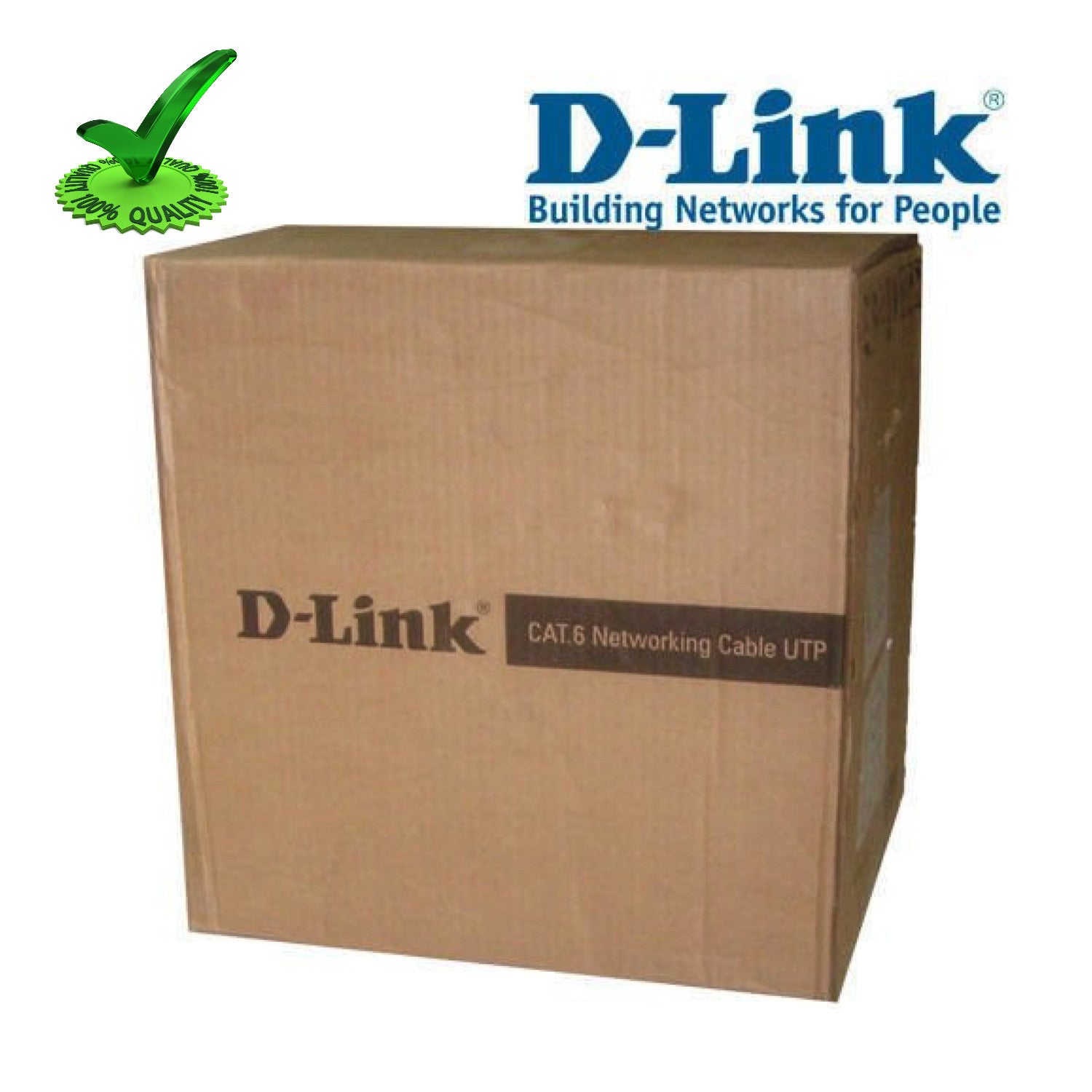

D-Link Cat6 Network UTP Cable 305mtr Drum

Application

Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LAN. Support Gigabit Ethernet (1000baseT) standard

This cable will meet the requirements of ANSI/TIA-586-c-2 category6 ISO 11801 Class E ROHs Compliant

Approval : UL Listed & ETL Verified

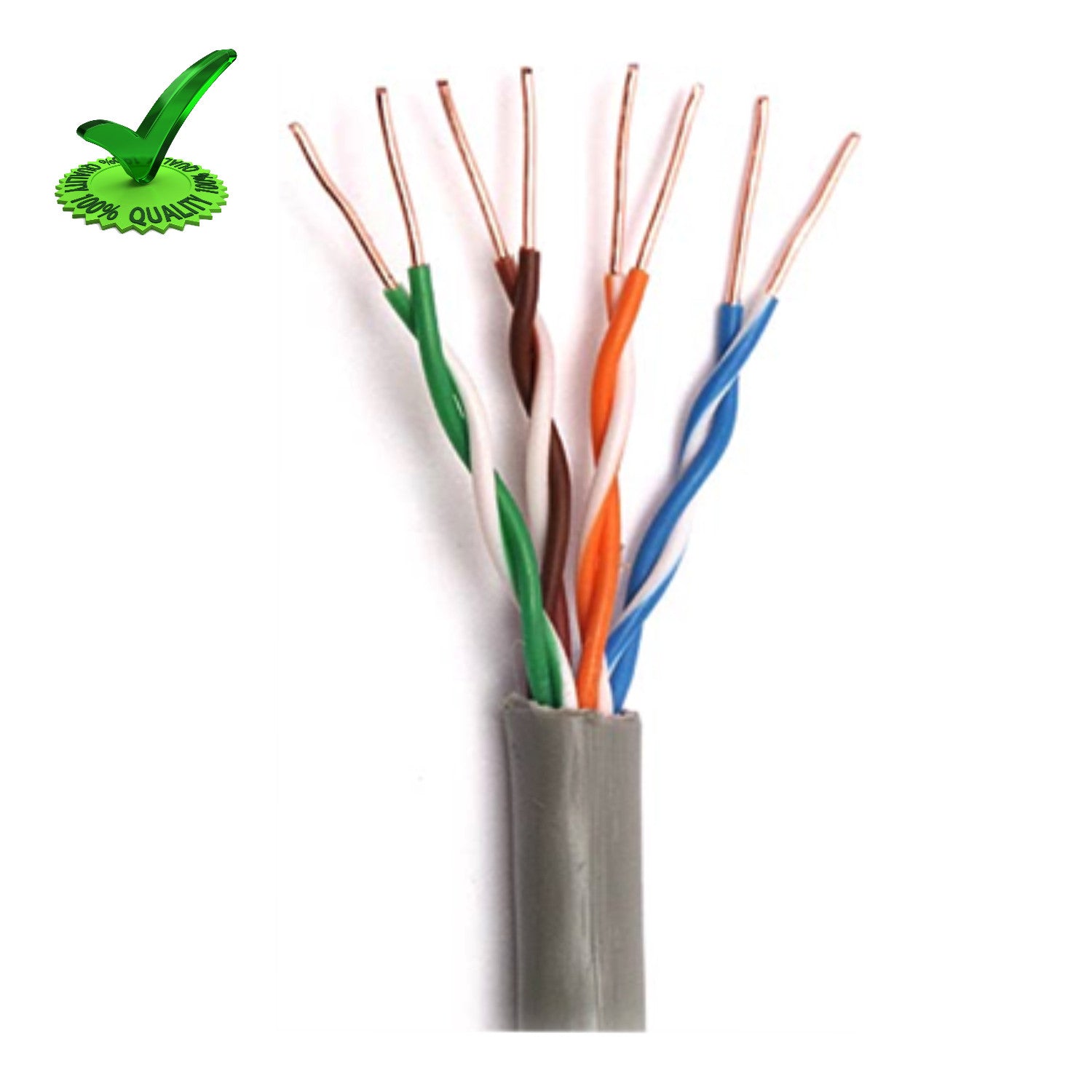

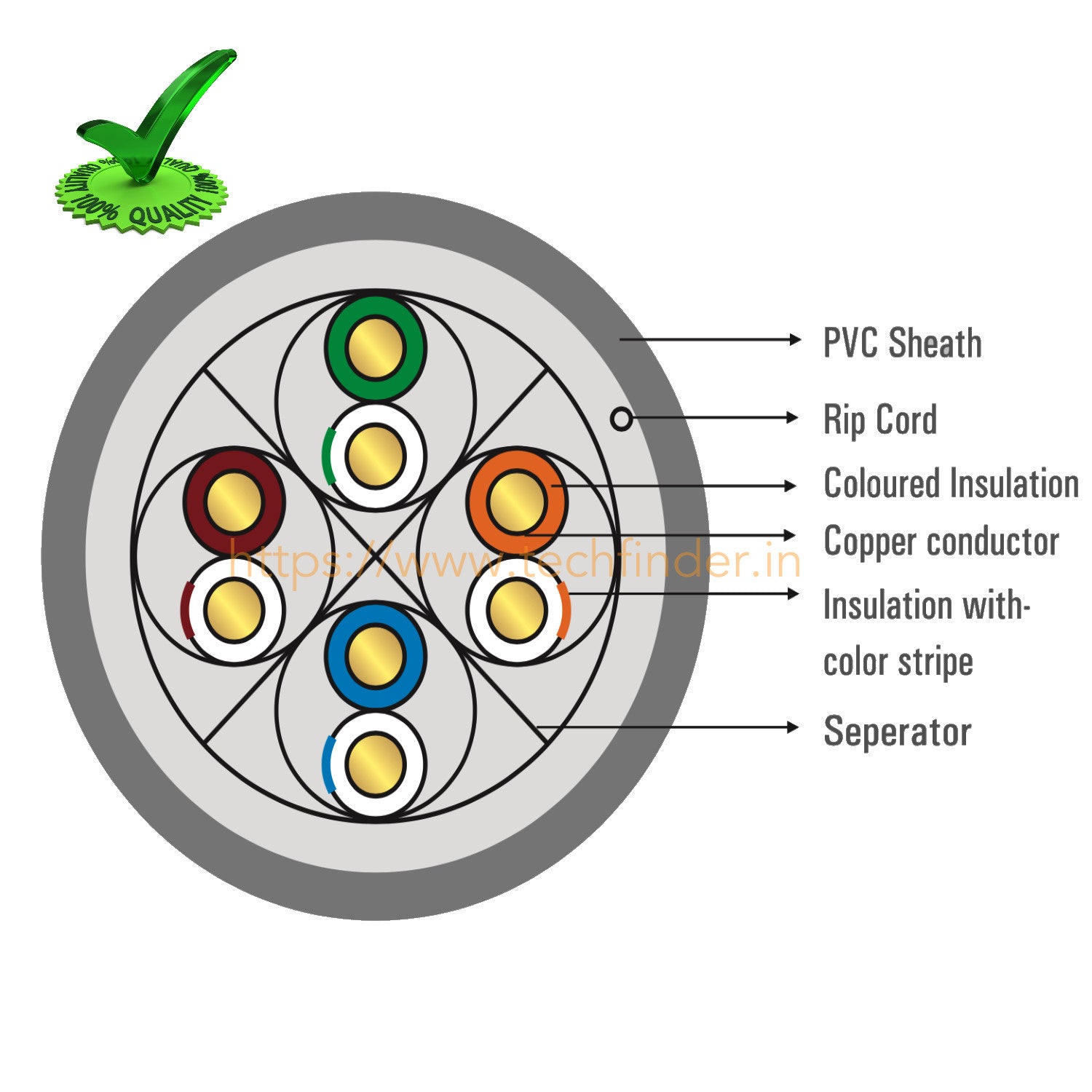

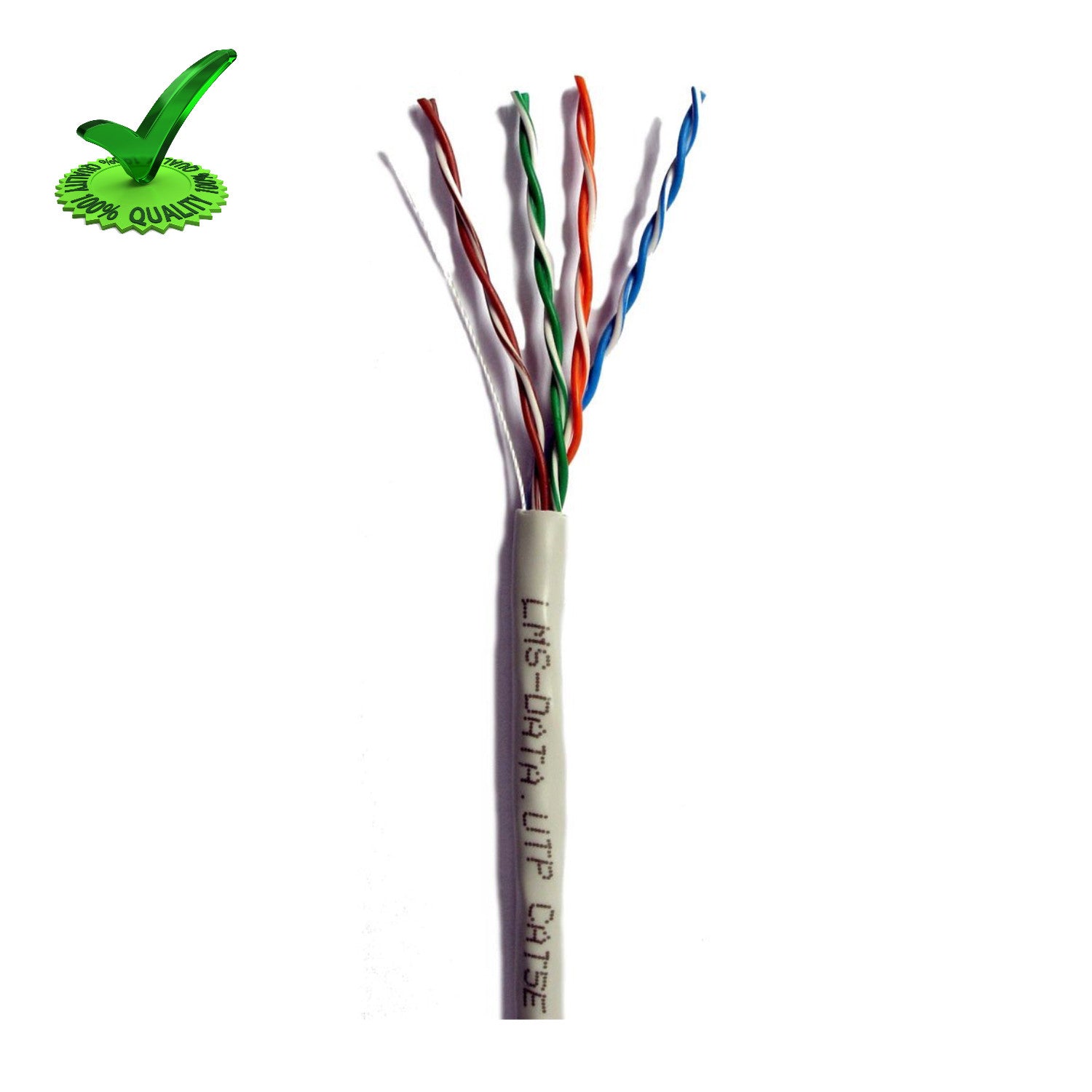

Construction :

• Conductor          : 23 AWG Solid bare Copper (4 pair)
• Insulation           : High Density Polyethylene
• Pairs                  : 2 Insulated Conductors - twisted together
• Sheath               : FR-PVC
• Cable Diametre : 6:1mm nominal
• Printing              : Each meter printed with sequential Length Counter

Colour Code

• Pair No 1-2 : White-Orange / Stripe and Orange
• Pair No 4-5 : White-Blue Stripe and Blue
• Pair No 3-6 : White-Green Stripe and Green
• Pair No 7-8 : White-Brown Stripe and Brown

Electrical Properties

• Characteristic Impedance : 100 +- 15 ohms
• Conductor Resistance : - 9.38 ohms/100m
• Manual Capacitance : - 5.6nf/100m
• Resistance Unbalance : 5% Max
• Capacitance Unbalance : 330pF/100m
• Delay Skew : - 45nS
• NVP% : 69%

Extra Information

• SKU: DLINK305
• Warranty: 2 Years
• Brand: D-Link
• Technology: IP
• Product Type: Cat6 Network Cable
• Cable Type: Netowrk RJ45 Cable
• PDF: View PDF
