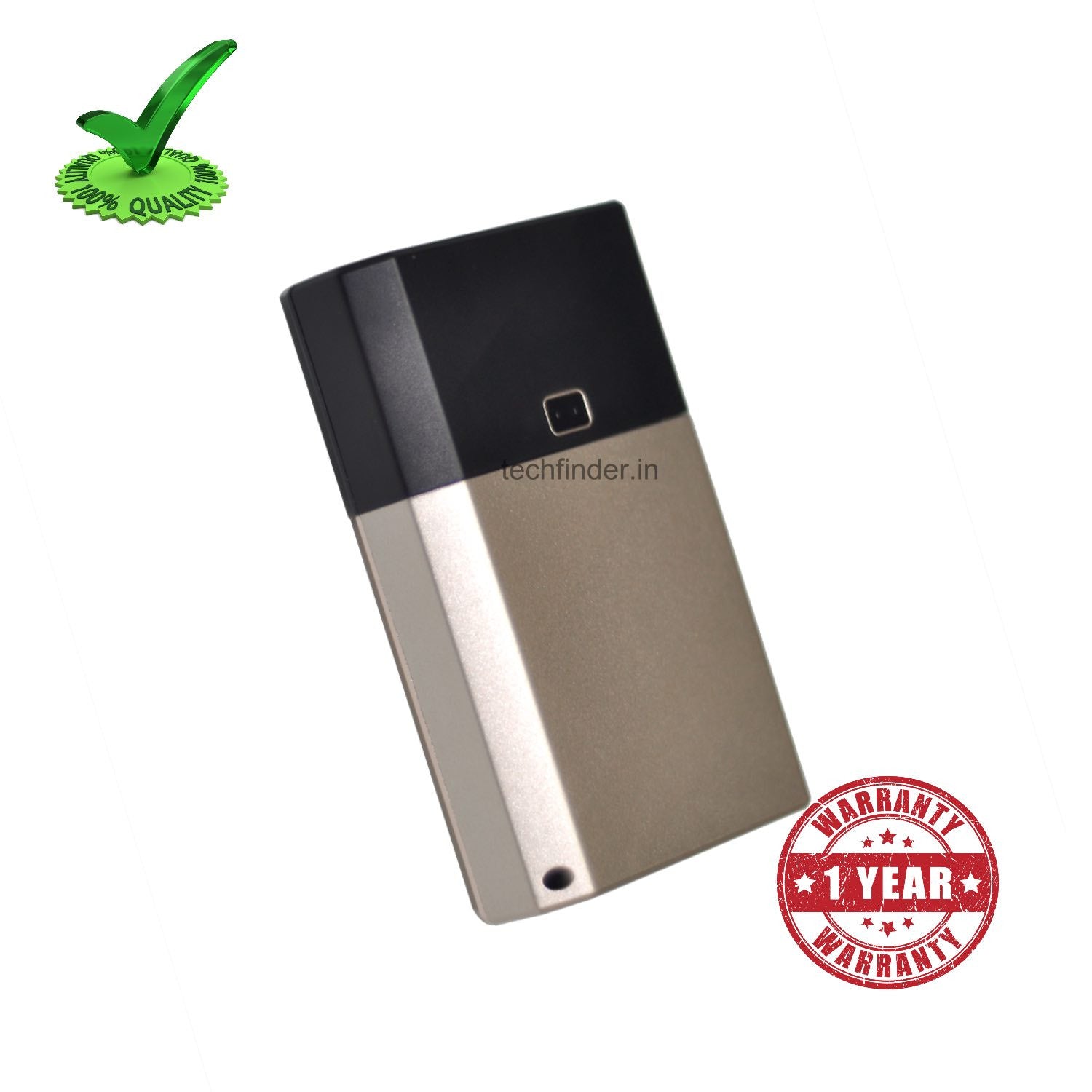

A11 Gps Vehicles Tracker Location Finder

Technical parameters:
Structure parts:

• Color : alloy
• Device weight : 192g
• Device size : 98*63*23mm
• Button : one button for switch power
• Screen : no
• GPS antenna : high sensitive ceramics active antenna
• GSM antenna : FPC antenna
• Battery : 5000mAh
• SIM card slot : 1 piece
• G-sensor : supported
• I/O port : USB charge

Hardware parts:

• Chipset : MTK MT2503
• GPRS : class 12
• GPS signal : L1, 1575.42MHz C/A
• GPS channel number : 22 channels
• GPS chip receive sensitivity : Tracking sensitivity: -165dBm
• Capture sensitivity : -148dBm
• GPS location accuracy : 5-15m
• LBS location accuracy : 100-1000m
• Minimum standby current : less than 0.5mA
• Average standby current : less than 2.5mA
• Average working current : around 55mA
• Working temperature : -20-70°C
• Working humidity : 5% to 95% non-condensing
• Test and certification : can approval by 3C, CE and RoHS Directive-compliant
• GPS antenna : built-in high sensitivity FPC antenna
• GSM antenna : built-in four frequency method of antenna
• G-senso r: supported
• MIC : support

Software parts

• Supported operating systems : supports Android 2.3 and above system, iOS 5.0 and above.
• Call function : remote monitoring
• Language supports : simplified Chinese and English and 7 country languages GSM + GPRS + GPS: GPS + LBS + Beidou multiple-modal positioning
• Support AGPS : cold start 26 seconds positioning
• Power management : ultra-low power consumption of power management, intelligent dormancy
• One key emergency : no
• Smart geo-fence : outside the range setting can be automatic alarm
• Historical route : can check history of three months
• Wireless upgrading : software upgrade, remote debugging maintenance, remote setting parameters

Extra Information

• SKU: A11
• Warranty: 1 Year
• Brand: VisionXP
• Technology: Others
• Product Type: GPS Tracker
• PDF: View PDF
