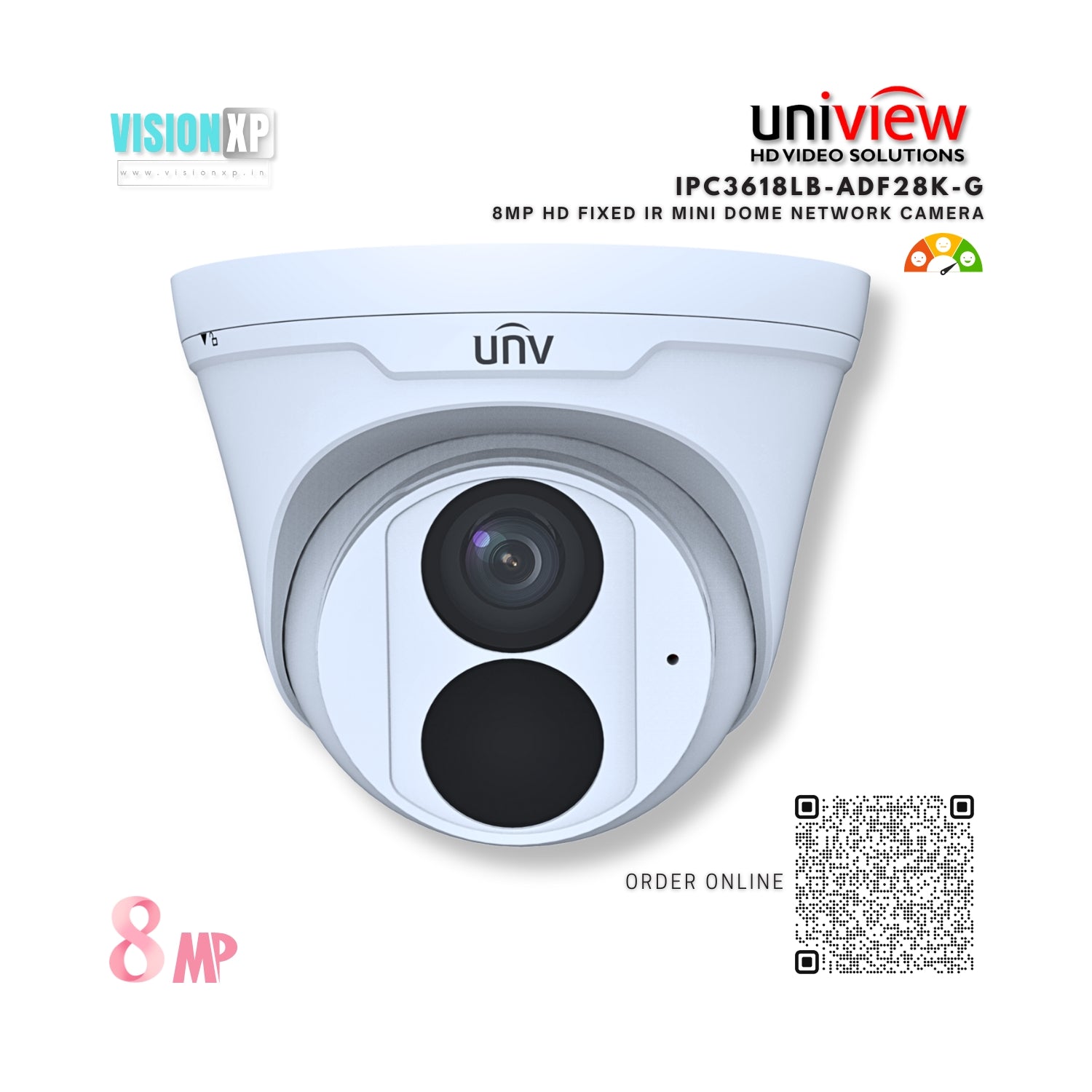

UNV Uniview IPC3618LB-ADF28K-G 8MP HD Fixed Eyeball IP Network Dome Camera
Key Features
- High quality image with 8MP, 1/2.7"CMOS sensor
- 8MP (3840*2160)@15fps ; 5MP (2880*1620)@25/20fps ;4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP
- (1920*1080)@30/25fps
- H.265, H.264, MJPEG
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 512 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specifications
|
Camera |
Description |
|
Max Resolution |
8MP |
|
Sensor |
1/2.7" CMOS |
|
Min. Illumination |
Colour: 0.01 lux (F1.6, AGC ON) 0 lux with IR on |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
|
S/N |
>52dB |
|
WDR |
120dB |
|
Lens |
Description |
|
Focal Length |
2.8mm |
|
Iris Type |
Fixed |
|
Iris |
F1.6 |
|
Field of View (H) |
107.0° |
|
Field of View (V) |
59.7° |
|
Field of View (D) |
111.5° |
|
DORI |
Description |
|
DORI Distance(Lens) |
2.8mm |
|
DORI Distance(Detect) |
63.0m(206.7ft) |
|
DORI Distance(Observe) |
25.2m(82.7ft) |
|
DORI Distance(Recognize) |
12.6m(41.3ft) |
|
DORI Distance(Identify) |
6.3m(20.7ft) |
|
Illuminator |
Description |
|
Illumination Distance(IR) |
30m |
|
Wavelength |
850nm |
|
IR On/Off Control |
Auto/Manual |
|
Video |
Description |
|
Video Compression |
Ultra 265; H.265; H.264; MJPEG |
|
H.264 Code Profile |
Baseline profile, Main profile, High profile |
|
Frame Rate |
Main Stream: 8MP (3840*2160)@15fps ; 5MP (2880*1620)@25/20fps ;4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps Sub Stream: 720P (1280*720)@30/25fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
|
Video Bit Rate |
128 Kbps ~ 16 Mbps |
|
U-code |
Support |
|
OSD |
Up to 4 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
ROI |
Up to 8 areas |
|
Video Stream |
Dual Streams |
|
Image |
Description |
|
White Balance |
Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
|
Digital Noise Reduction |
2D/3D DNR |
|
Smart IR |
Support |
|
Flip |
Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise |
|
Dewarping |
N/A |
|
HLC |
Support |
|
BLC |
Support |
|
Defog |
Digital Defog |
|
Events |
Description |
|
Basic Detection |
Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection) |
|
General Function |
Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
|
Audio |
Description |
|
Audio Compression |
G.711U; G.711A |
|
Audio Bitrate |
64 Kbps |
|
Two-way Audio |
N/A |
|
Suppression |
Support |
|
Sampling Rate |
8KHZ |
|
Storage |
Description |
|
Edge Storage |
Micro SD, up to 512 GB |
|
Network Storage |
ANR; NAS (NFS) |
|
Network |
Description |
|
Protocols |
IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; 802.1x; SNMP; PPPoE |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T); API; SDK |
|
User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
|
Security |
Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
|
Client |
UNV-Link; UNV-Link Pro; EZStation |
|
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|
Interface |
Description |
|
Audio I/O |
N/A |
|
Alarm I/O |
N/A |
|
Serial Port |
N/A |
|
Built-in Mic |
Support |
|
Built-in Speaker |
N/A |
|
WIFI |
N/A |
|
Network |
1 x RJ45 10M/100M Base-TX Ethernet |
|
Video Output |
N/A |
|
Certification |
Description |
|
EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
|
Safety |
CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
|
Protection |
IP67 (IEC 60529) |
|
General |
Description |
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4.0W |
|
Power Interface |
Ø 5.5mm coaxial power plug |
|
Dimensions |
Φ118 x 95mm (Φ4.6” x 3.8”) |
|
Weight |
0.29kg (0.63lb) |
|
Material |
Metal + Plastic |
|
Working Environment |
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
|
Storage Environment |
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
|
Surge Protection |
4KV |
|
Reset Button |
N/A |
|
Web Client Language |
13 Languages English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
|
Available |
|
