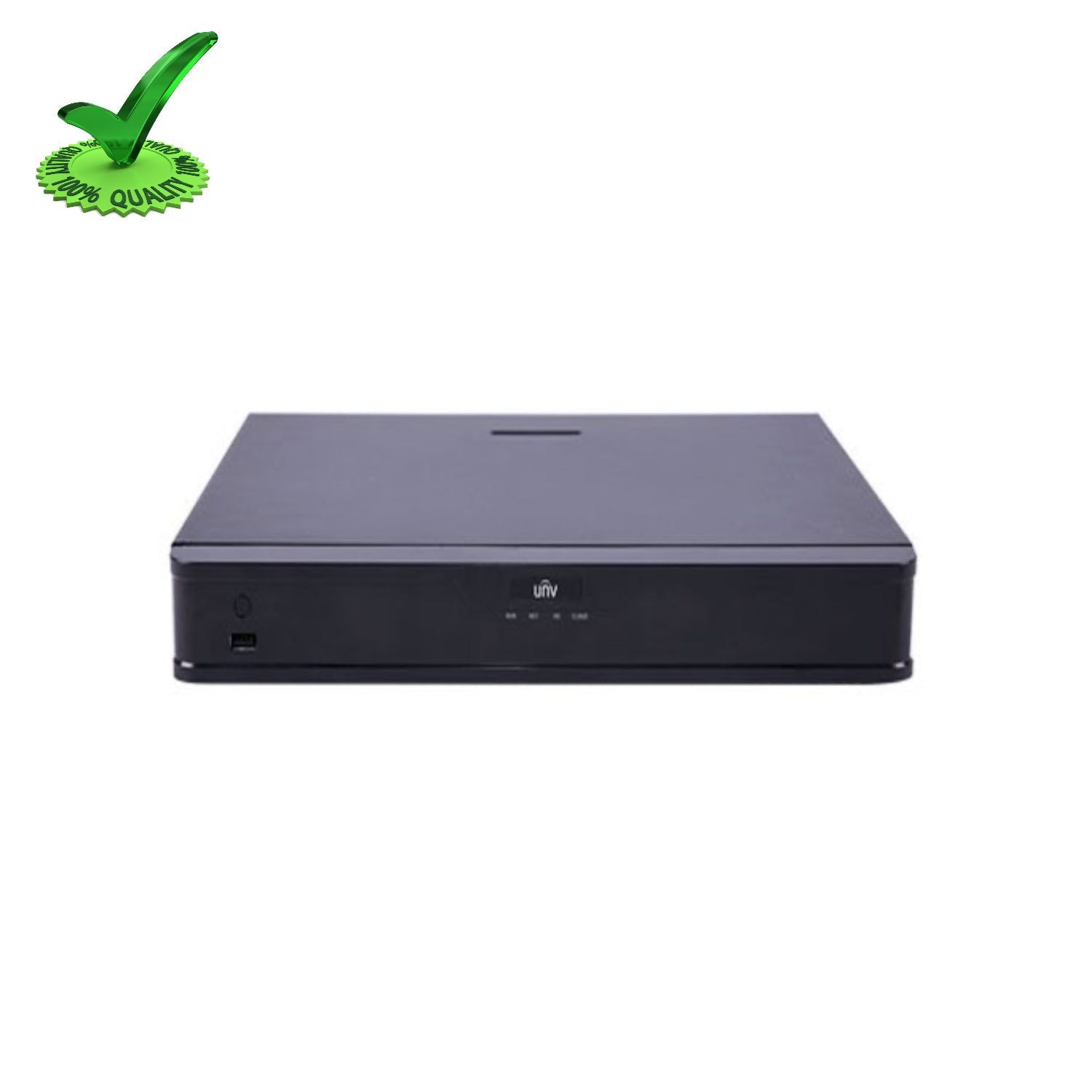

Uniview NVR302-09E-B 9Ch NVR

Specifications

Video/Audio Input

• IP Video Input : 9-ch
• Two-way Audio Input : 1-ch, RCA
• Network
• Incoming Bandwidth : 90Mbps
• Outgoing Bandwidth : 180Mbps
• Remote Users : 128
• Protocols : P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

• HDMI/VGA Output : HDMI: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz,  1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
• Recording Resolution : 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output : 1-ch, RCA
• Synchronous Playback : 9-ch
• Corridor Mode Screen : 3/4/5/7/9

Decoding

• Decoding format : Ultra 265, H.265, H.264
• Live View/ Playback : 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability : 3 x 12MP@25, 4 x 4K@30, 9 x 4MP@25, 16 x 1080p@30

Hard Disk

• SATA : 2 SATA interfaces
• Capacity : up to 10TB for each disk

Smart

• VCA Detection : Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change  detection, Auto tracking
• VCA Search : Face search, Behavior search
• Statistical Analysis : People counting

External Interface

• Network Interface : 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
• Serial Interface : 1 x RS485
• USB Interface : Front panel: 1 x USB2.0 Rear panel: 1 x USB2.0, 1 x USB3.0
• Alarm In : 8-ch
• Alarm Out : 2-ch

General

• Power Supply : 12V DC
• Power Consumption : ≤ 20 W( without HDD )
• Working Environment : -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
• Dimensions(W×D×H) : 380mm × 315mm ×46mm (15.0"× 12.4" ×1.8")
• Weight ( without HDD ) : ≤ 2.48 Kg (5.47 lb )

Extra Information

• SKU: NVR30209EB
• Warranty: 2 Years
• Brand: Uniview
• Technology: IP
• Product Type: NVR
• PDF: View PDF
