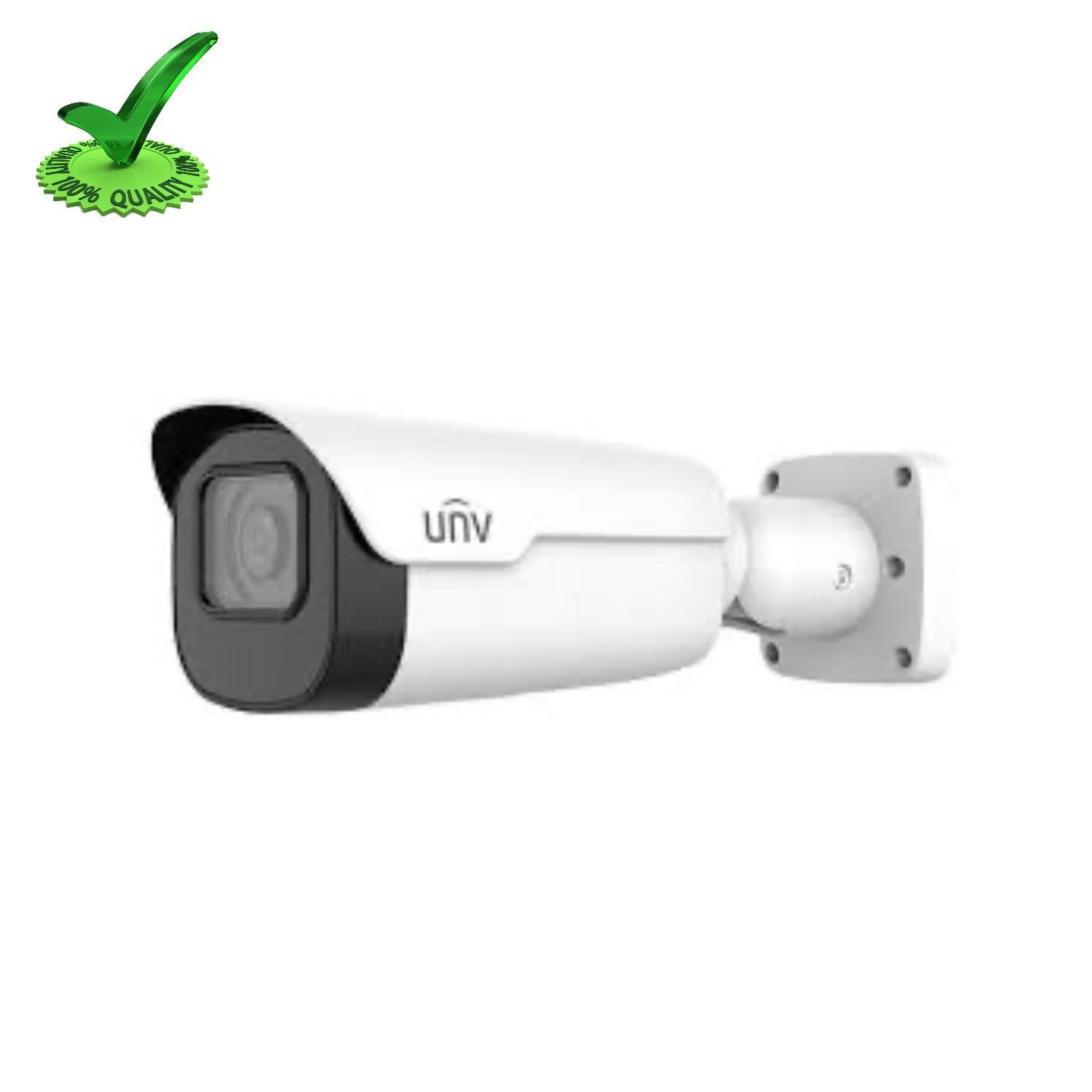

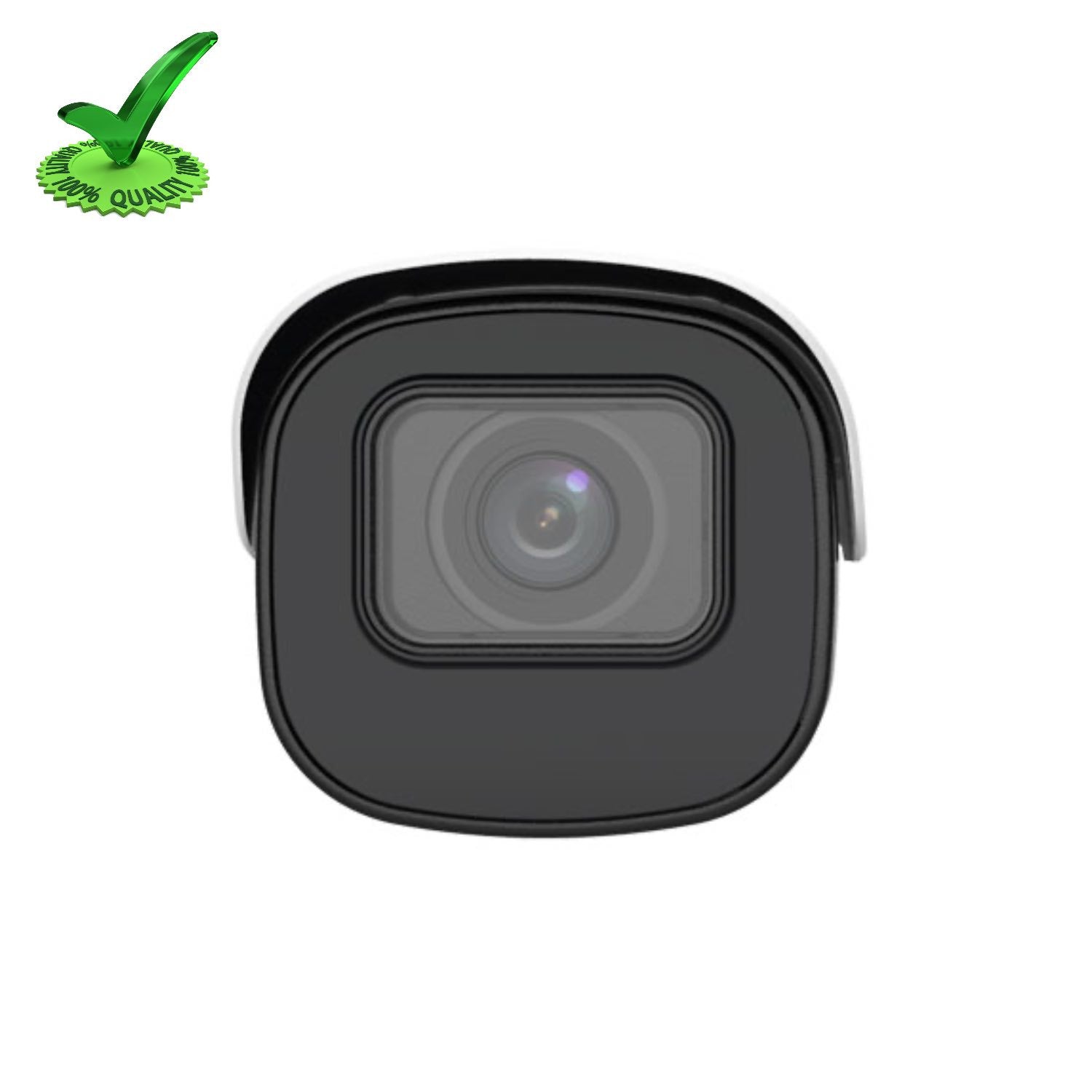

Uniview IPC2A22SA-DZK 2MP Network IP Bullet Camera

Specifications

Camera

• Sensor : 1/2.7", 2.0 megapixel, progressive scan, CMOS
• Lens : 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
• Angle of View (H) : 114° ~ 31.8°
• Angle of View (O) : 58.9° ~ 17.6°
• Adjustment angle : 148.2° ~ 37.5°
• Adjustment Range : Pan: 0°~360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
• Shutter : Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination : Colour:0.001Lux (F1.35, AGC ON) 0Lux with IR
• Day/Night : IR-cut filter with auto switch (ICR)
• S/N : >52dB
• IR Range : Up to50m (164ft) IR range
• wavelength : 850nm
• IR On/Off Control : Auto/Manual
• Defog : Digital Defog
• WDR : 120dB

Video

• Video Compression : Ultra 265 ,H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main Profile, High Profile
• Frame Rate : Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps
• Video Bit Rate : 128 Kbps~16 Mbps
• 9:16 Corridor Mode : Supported
• OSD : Up to 8 OSDs
• Privacy Mask : Up to 8 areas
• ROI : Up to 8 areas
• Motion Detection : Up to 4 areas


• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction : 2D/3D DNR
• Smart IR : Support
• Flip : Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping : Support
• HLC : Support
• BLC : Support

Audio

• Audio Compression : G.711
• Two-way audio : Supported
• Suppression : Supported
• Sampling Rate : 8KHZ

Storage

• Edge Storage : Micro SD, up to 256GB
• Network Storage : ANR, NAS(NFS)

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,  SNMP, QoS
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API
• Client : EZStation  EZView EZLive
• Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Audio I/O : Audio cable Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O : 1/1
• Network : 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• Certifications : CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15

General

• Power : DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption : Max 8.5W
• Dimensions (Ø x H) : 274.4×98.1×89.7mm (10.8”×3.9”×3.5”)
• Net Weight : 1.14kg (2.51lb)
• Material : metal
• Working Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• surge protection : 6KV
• Ingress Protection : IP67
• Vandal Resistant : IK10
• Reset Button : Supported

Extra Information

• SKU: IPC2A22SADZK
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
