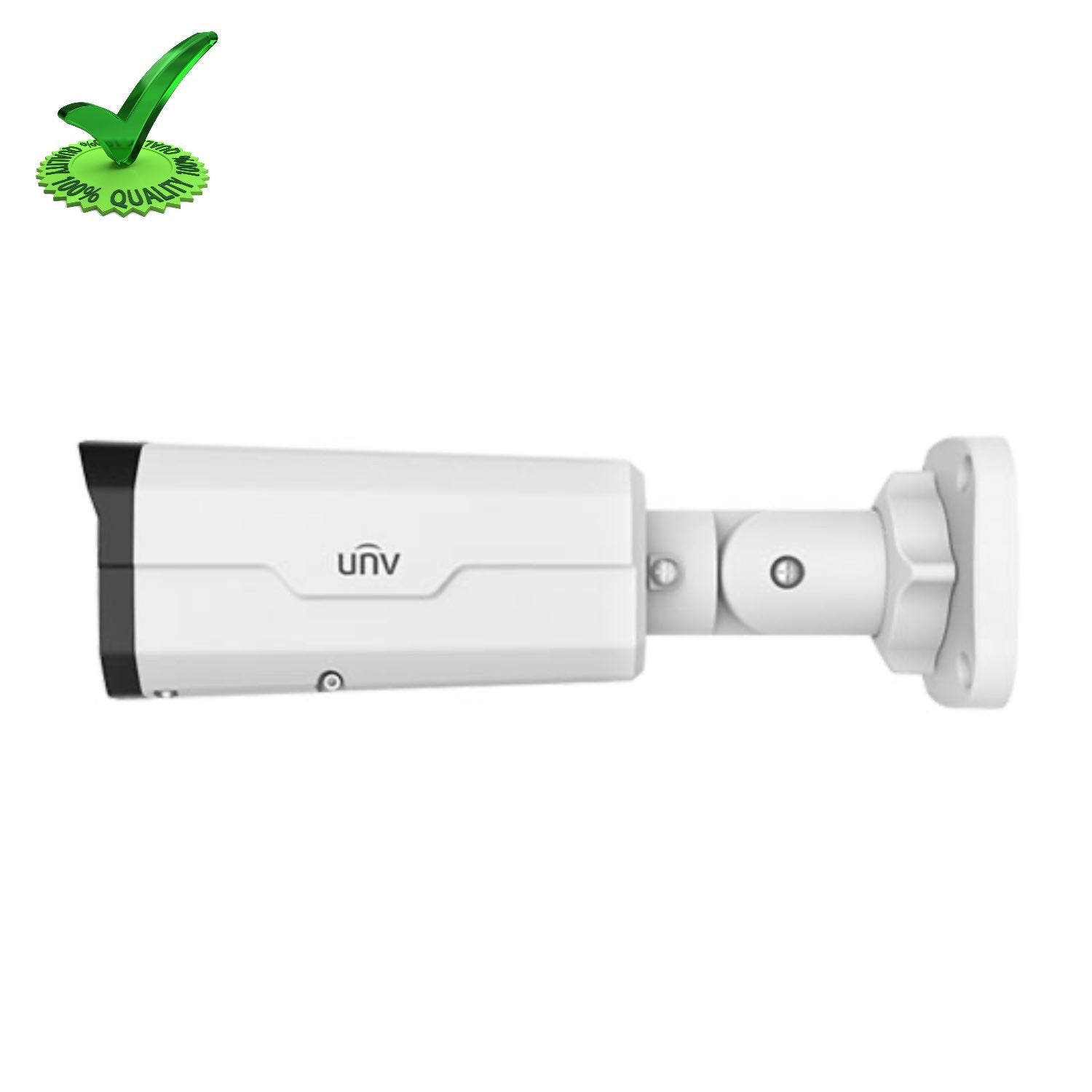

Uniview IPC2322LBR3-SPZ28-D 2MP IP Network Bullet Camera

Specification

Camera

• Sensor : 1/2.7", 2.0 megapixel, progressive scan, CMOS
• Lens : 2.8 ~ 12mm, motorized zoom lens
• Angle Of View (H) : 112.7°~ 28.1°
• Angle Of View (V) : 60.1°~ 15.4°
• Anger Of View (O) : 146.5°~ 33.2°
• Adjustment Angle : Pan: 0°~ 360°  Tilt: 0°~ 90°  Rotate: 0°~ 360°
• Shutter : Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination : Colour: 0.01Lux (F1.6, AGC ON) 0Lux with IR on
• Digital noise reduction  : 2D/3D DNR
• Day/Night  : IR-cut filter with auto switch (ICR)
• S/N  : >52dB
• IR Range  : Up to 30m (98ft) IR range
• Wavelength  : 850nm
• IR On/Off Control  : Auto/Manual
• Defog : Digital Defog
• WDR  : DWDR

Video

• Video Compression  : Ultra 265, H.265, H.264, MJPEG
• H.264 code profile  : Baseline profile, Main Profile
• Frame Rate : Main Stream: 5MP (2592*1944), Max 20fps; Sub Stream: 720P (1280×720), Max 20fps Third Stream: D1 (704*576), Max 30fps
• Video Bit Rate  : 128 Kbps~16 Mbps
• OSD  : Up to 4 OSDs
• Privacy Mask  : Up to 4 areas
• ROI  : Up to 2 areas
• Motion Detection : Up to 4 areas


• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction : 2D/3D DNR
• Smart IR : Support
• Flip  : Normal/Vertical/Horizontal/180°
• Support : Normal/Vertical/Horizontal/180°
• Dewarping : Supported
• BLC : Supported
• HLC : Supported

Network

• Protocols  : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
• Compatible Integration  : ONVIF (Profile S, Profile T), API
• Client : EZStation EZView EZLive
• Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below  ; Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Storage

• Edge Storage : Micro SD, up to 256GB
• Network Storage : ANR

Interface

• Network :1 RJ45 100M Base-TX Ethernet

Certifications

• Certification : CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15

General

• Power : DC 12V±25%, PoE (IEEE 802.3af) ; Power consumption: Max 6.5W
• Dimensions (240.3 × 86.4 × 75.6mm (9.46” × 3.4” × 2.98”)
• Net Weight : 1kg (2.2lb)
• Material : Metal
• Working Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection : 6KV
• Ingress Protection : IP67

Extra Information

• SKU: IPC2322LBR3SPZ28D
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 2
• Technology: IP
• Camera Type: Bullet
• Product Type: Camera
