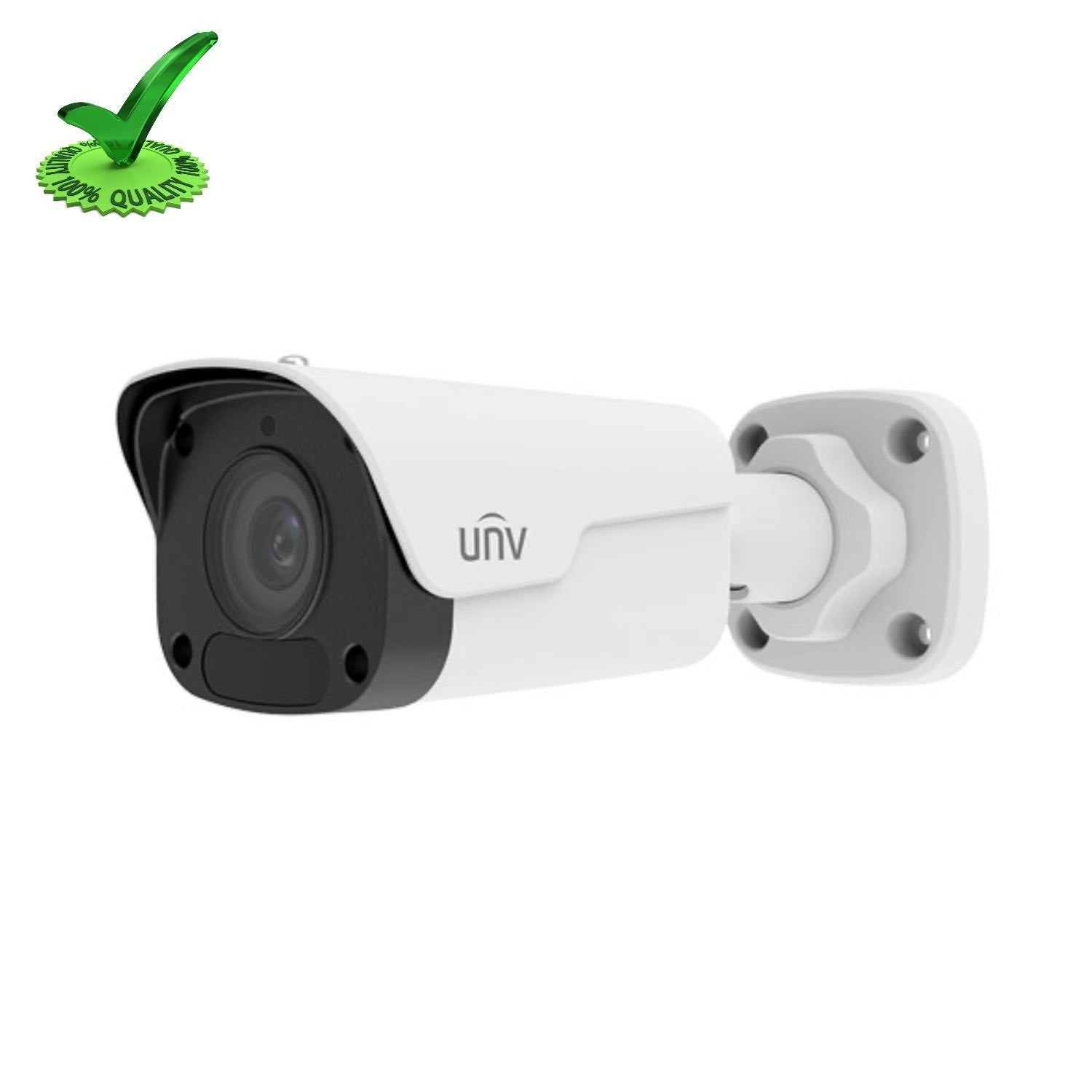

Uniview IPC2124SR3-ADPF28(40)M-F 4MP IP Bullet Camera

• Specifications

Camera

• Sensor : 1/3", 4.0 megapixel, progressive scan, CMOS
• Lens : 2.8mm@F2.0
• Angle of View : (H) 107.8°
• Angle of View : (V) 57.0°
• Angle of View : (O) 140.1°
• Adjustment angle : Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
• Shutter : Auto/Manual, 1 ~ 1/100000s
• Minimum : Illumination Colour:0.01Lux (F2.0, AGC ON) 0Lux with IR on
• Digital noise reduction : 2D/3D DNR
• Day/Night : IR-cut filter with auto switch (ICR)
• S/N : >56dB
• IR Range : Up to 30m (98 ft) IR range
• Wavelength : 850nm
• IR On/Off Control : Auto/Manual
• Defog : Digital Defog
• WDR : 120dB

Video

• Video Compression : Ultra 265, H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main Profile
• Frame Rate : Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps
• Video Bit Rate : 128 Kbps~16 Mbps
• OSD : Up to 4 OSDs
• Privacy Mask : Up to 4 areas
• ROI : Up to 2 areas
• Motion Detection : Up to 4 areas


• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction : 2D/3D DNR
• Smart IR : Support
• Flip : Normal/Vertical/Horizontal/180°
• Dewarping : NA
• HLC : Supported
• BLC : Supported

Audio

• Audio Compression : G.711
• Suppression : Supported
• Sampling Rate : 8KHZ

Storage

• Edge Storage : Micro SD, up to 256GB
• Network Storage : ANR

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API
• Client : EZStation EZView EZLive
• Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Network : 1 RJ45 10M/100M Base-TX Ethernet Built-in Mic Supported

Certifications

• Certifications :CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15

General

• Power : DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 6.4W
• Dimensions (L × W × H) 165 × 63.1 × 62.5mm (6.5” × 2.5” × 2.5”)
• Net Weight :  0.45kg (0.99lb)
• Material : Sun shield：plastic
• Front cover：metal
• Body：metal
• Bracket：metal
• Bottom plate：metal
• Working Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection : 2KV
• Ingress Protection : IP67

Extra Information

• SKU: IPC2124SR3ADPF2840MF
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 4
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
