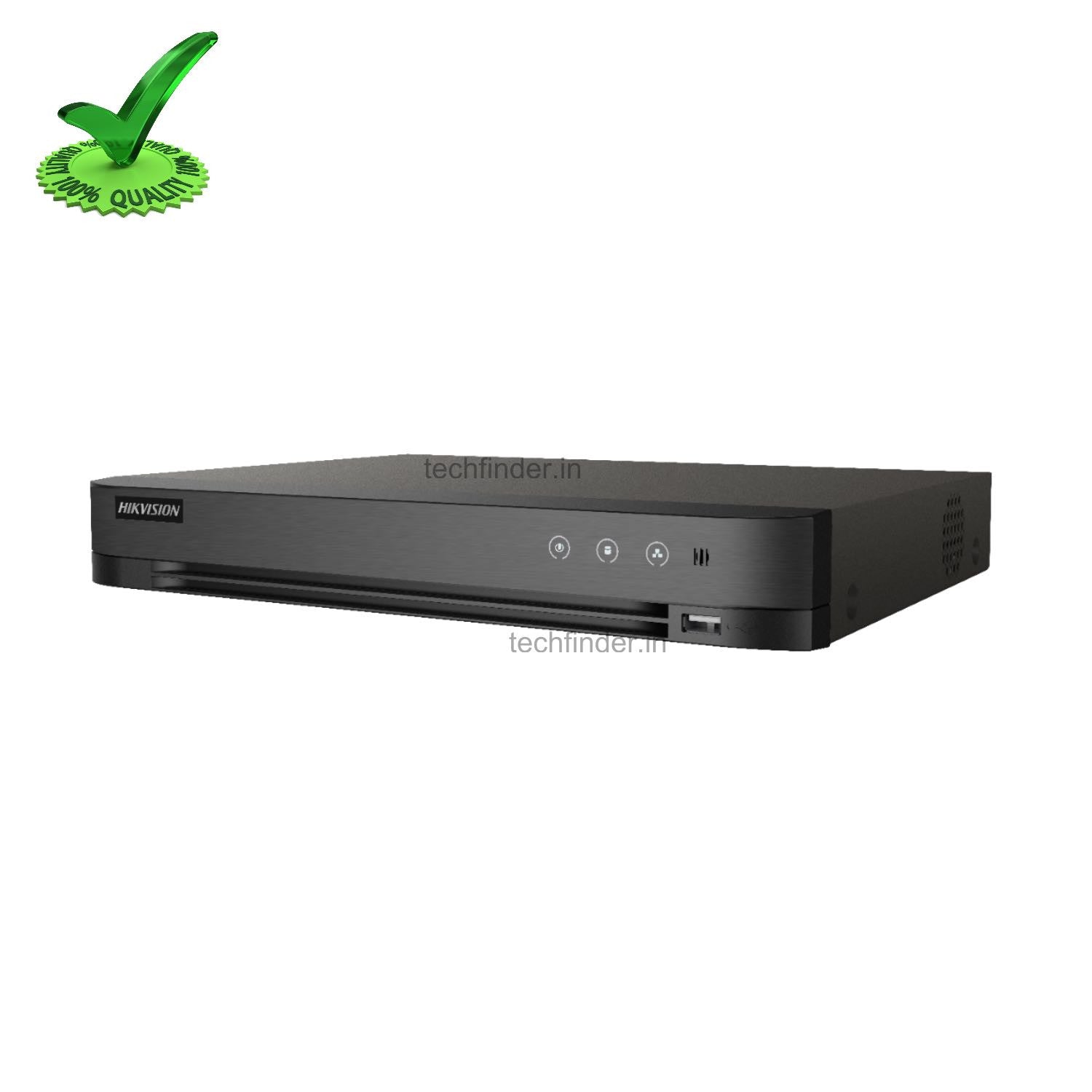

Hikvision iDS-7204HQHI-M1/FA 4Ch Face Recognisation DVR

Compression and Recording

• H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
• Full channel recording at up to 1080p resolution

Storage and Playback

• Smart search for efficient playback
• Support the third party cloud storage

Smart Function

• Deep learning-based motion detection, perimeter protection (line crossing and intrusion detection), or facial recognition
• Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras

Network & Ethernet Access

• Compatible with major Wi-Fi dongle products in the market
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Output bandwidth limit configurable

Specification

• Face Picture Comparison and Search
• Face picture comparison : Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
• Face picture library : Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)

Motion Detection 2.0

• Human/Vehicle Analysis : Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects, like leaves and lights;Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle Analysis : Up to 2-ch

Recording

• Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding resolution : Main stream:When 1080p lite mode not enabled:For 4 MP stream access:4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N), For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps, For 1080p stream access:1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N), For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N), When 1080p Lite mode enabled:4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N), Sub-stream:WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)



• Video bitrate : 32 Kbps to 6 Mbps
• Dual stream : Support
• Stream type : Video, Video & Audio
• Audio compression : G.711u
• Audio bitrate : 64Kbps

Video and Audio

• IP video input2 : 1-ch (up to 5-ch), Enhanced IP mode on:2-ch (up to 6-ch), each, up to 4 Mbps, Up to 6 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog video input : 4-ch
• BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input : 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60, fps, 720p@50 fps, 720p@30 fps, 720p@25 fps, *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/FA, for channel 1/2 of iDS-7208HQHI-M1/FA, and for channel 1/2/3/4 of iDS-7216HQHIM1/FA.
• AHD input : 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI input : 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS input : PAL/NTSC
• CVBS output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI/VGA output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output
• Audio input3 : 1-ch (up to 4-ch is optional), RCA (2.0 Vp-p,
• 1 KΩ), 4-ch via coaxial cable
• Audio output : 1-ch, RCA (Linear, 1 KΩ)
• Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous playback : 4-ch

Network

• Remote connection : 32
• Network protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface1
• Wi-Fi : Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary interface

• SATA : 1 SATA interface, up to 10 TB capacity for each disk
• Serial interface : RS-485 (half-duplex)
• USB interface : Front panel: 1 × USB 2.0;Rear panel: 1 × USB 2.0
• Alarm in/out3 : N/A (optional to support)

General

• Power supply : 12VDC, 1.5A
• Consumption(without HDD) : ≤ 18W
• Working temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity : 10% to 90%
• Dimension (W × D × H) : 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weight (without HDD) : ≤ 1.16kg(2.6 lb)
