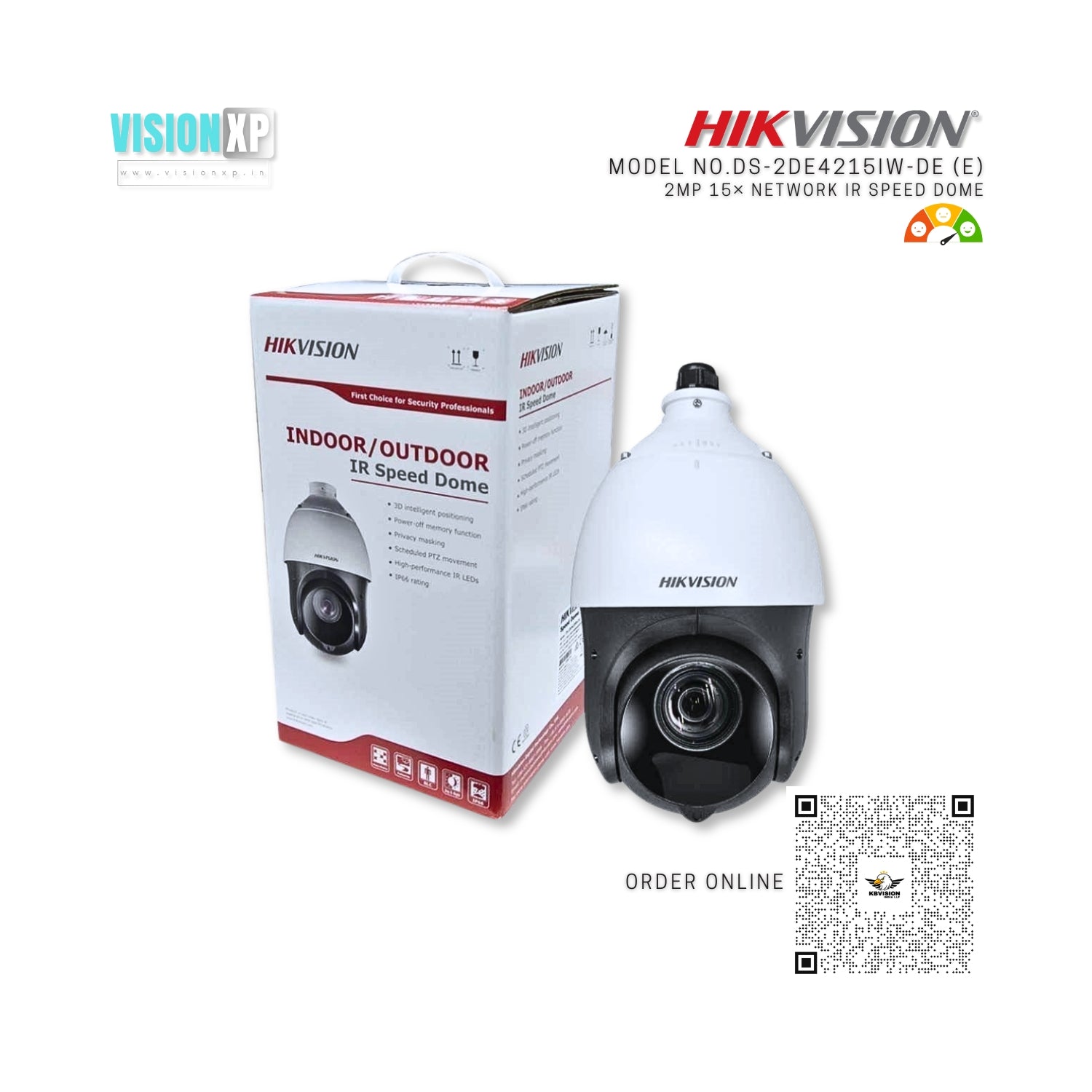

Hikvision DS-2DE4215IW-DE (E) 2MP 15× Network PTZ IR Speed Dome

Camera Module

Image Sensor

1/2.8" progressive scan CMOS

Min. Illumination

Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON)

0 Lux with IR

White Balance

Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

Gain

Auto/Manual

Shutter Time

50Hz: 1/1 s to 1/30,000 s

60Hz: 1/1 s to 1/30,000 s

Day & Night

IR Cut Filter

Digital Zoom

16×

Privacy Mask

24 programmable privacy masks, mask color configurable

Focus Mode

Auto/Semi-automatic/Manual

WDR

120 dB WDR

Lens

Focal Length

5 mm to 75 mm, 15× optical zoom

Zoom Speed

Approx. 2.3 s (optical lens, wide-tele)

Field of View

Horizontal field of view: 53.8° to 4° (Wide-Tele) Vertical field of view: 31.9° to 2.3° (Wide-Tele) Diagonal field of view: 60.4° to 4.6° (Wide-Tele)

Working Distance

10 mm to 1500 mm (wide-tele)

Aperture Range

F1.6 to F2.8

IR

IR Distance

100 m

Smart IR

Yes

PTZ

Movement Range (Pan)

360° endless

Pan Speed

Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s

Movement Range (Tilt)

From -15° to 90° (auto-flip)

Tilt Speed

Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s

Proportional Zoom

Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

3D Positioning

Yes

PTZ Position Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Compression Standard

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Third Stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Yes

H.265 Type

Baseline Profile/Main Profile/High Profile

H.265+

Yes

Video Bitrate

32 Kbps to 16384 Kbps

SVC

Yes

Smart Features

Basic Event

Motion Detection, Video Tampering Detection, Exception

Smart Event

Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection

Smart Record

ANR (Automatic Network Replenishment), Dual-VCA

ROI

Main stream, sub-stream, and third stream respectively support four fixed areas.


Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

50fps (1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

60fps (1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Image Enhancement

HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus

Network

Network Storage

Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API

ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Security Measures

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser

IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+

Interface

Network Interface

1 RJ45 10 M/100 M Ethernet, PoE (802.3 at, class4)

General

Language (Web Browser Access )

32 languages.

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,

Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power

12 VDC, 2.0A, PoE (802.3at), 42.5 to 57 VDC, 0.6A, Class4

Max.18 W, including Max.7W for IR

Working Temperature

-30°C to 65°C (-22°F to 149°F)

Working Humidity

≤ 90%

Protection Level

IP66 Standard, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Material

ADC 12, PC, PC+10% GF

Dimensions

Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")

Weight

Approx. 2 kg (4.41 lb)

DORI

Detect

Observe

Recognize

Identify

Definition

25 px/m

63 px/m

125 px/m

250 px/m

Distance (Tele)

960.0 m (3149.6 ft)

381.0 m (1249.8 ft)

192.0 m (629.9 ft)

96.0 m (315.0 ft)
