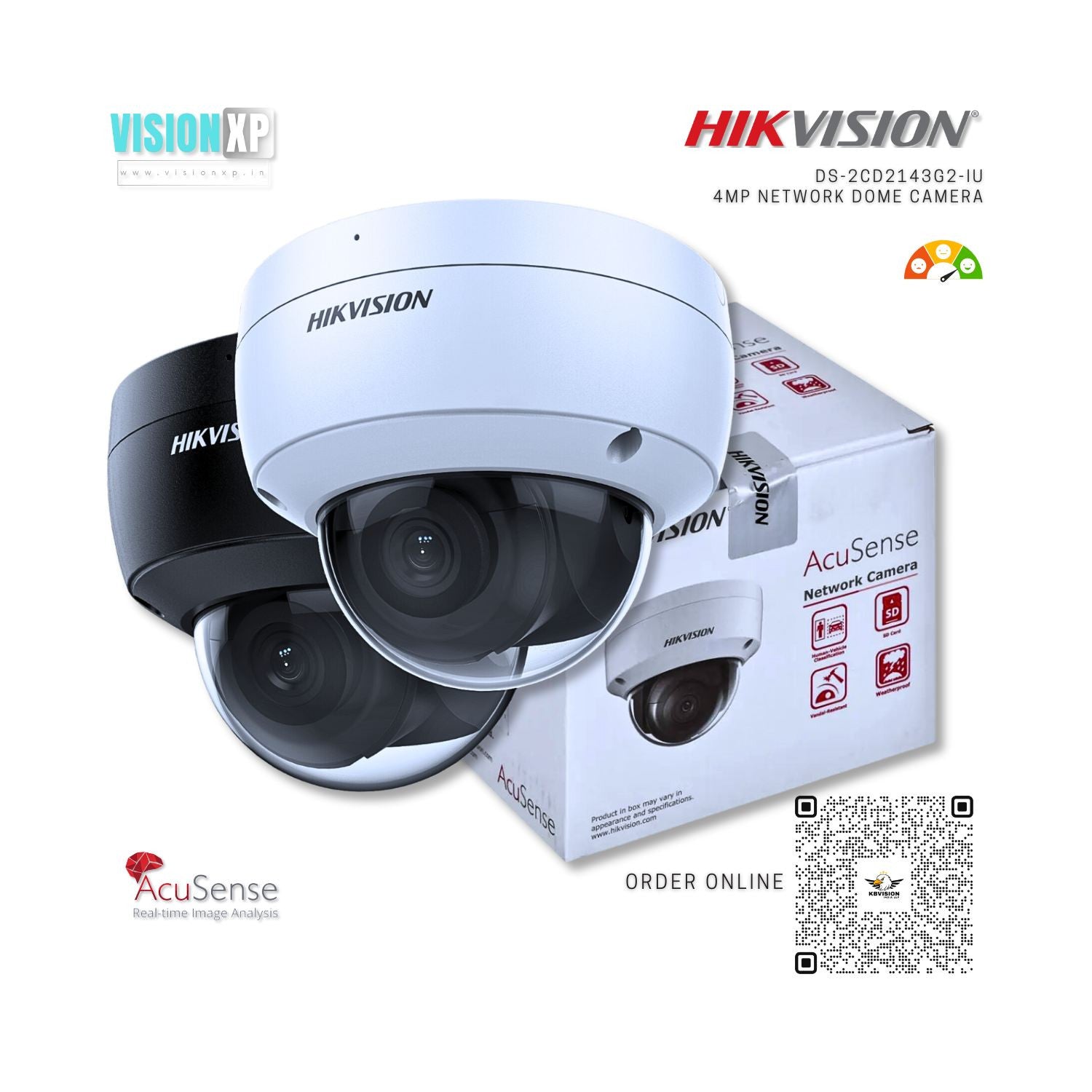

Hikvision DS-2CD2143G2-IU 4 MP AcuSense Fixed Dome Network Camera Lowest Price Buy Online Store

Specification

Camera

• Image Sensor : 1/3" Progressive Scan CMOS
• Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
• Shutter Speed : 1/3 s to 1/100,000 s
• Slow Shutter : Yes
• P/N : P/N
• Wide Dynamic Range : 120 dB
• Day & Night : ICR Cut
• Angle Adjustment : Pan: 0°to 355°, tilt: 0°to 75°, rotate: 0°to 355°

Lens

• Lens Type & FOV : 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
• Aperture : F1.6
• Lens Mount : M12

DORI

• DORI : 2.8mm:D:67m,O:26m,R:13m,I:6m 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m

Illuminator

• IR Range : Up to 30 m
• Wavelength : 850 nm

Video

• Max. Resolution : 2688 × 1520
• Main Stream : 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub Stream : 50Hz:25fps(1280×720,640×480,640×360) 60Hz:30fps(1280×720,640×480,640×360)
• Third Stream : 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression : Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• H.264+ : Main Stream supports
• H.265+ : Main Stream supports
• Bit Rate Control : CBR/VBR
• Scalable Video Coding (SVC) : Yes
• Region of Interest (ROI) : 1 fixed region for main stream and sub-stream

Audio

• Environment Noise Filtering : Yes
• Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC- LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)

Network

• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
• User/Host : Up to 32 users. 3 user levels: administrator, operator and user
• Security : Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client : iVMS-4200, Hik-Connect, Hik-Central
• Web Browser : Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


• Day/Night Switch : Day, Night, Auto, Schedule
• Image Enhancement : BLC, HLC, 3D DNR
• Image Parameters Switch : Yes
• Image Settings : Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Built-in Microphone : Yes
• On-board Storage : Built-in microSD, up to 512 GB
• Hardware Reset : Yes
• Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Basic Event : Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Face Detection : Yes

Deep Learning Function

• Perimeter Protection : Line crossing detection, intrusion detection Supports human and vehicle targets classification

General

• Linkage Method : Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
• Web Client Language : 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function : Anti-flicker, heartbeat, password reset via e-mail, pixel counter
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3
• Power Consumption and Current : 12VDC,0.4A,max.5W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
• Power Interface : Ø 5.5 mm coaxial power plug
• Material : Aluminum alloy body Bubble: plastic
• Camera Dimension : Ø121.4 × 92.2 mm (Ø4.8′′ × 3.7′′)
• Package Dimension : 150 × 150 × 141 mm (5.9′′ × 5.9′′ × 5.6′′)
• Camera Weight : Approx. 570 g (1.3 lb.)
• With Package Weight. : Approx. 806 g (1.8 lb.)

Approval

• EMC : FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety : UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950- 1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment : CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection : IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)

Available Model

• DS-2CD2143G2-IU (2.8/4 mm)

Typical Application

• Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level / Description

• Top-level protection : Hikvision products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and more.
• Moderate protection : Hikvision products at this level are equipped for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain.
• No specific protection : Hikvision products at this level are equipped for use in areas where no specific anti-corrosion protection is needed.

Extra Information

• SKU: DS2CD2143G2IU
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 4
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
