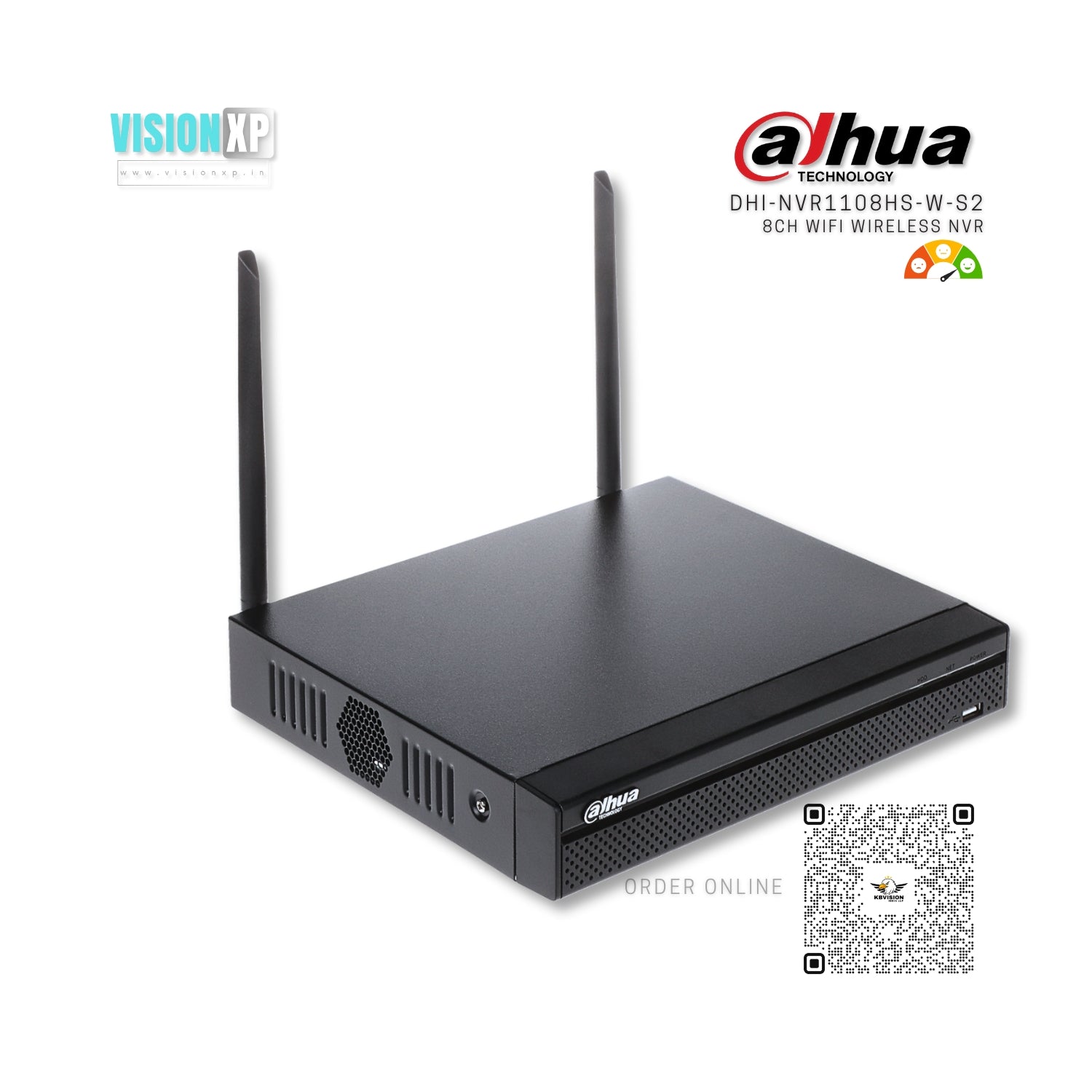

Dahua DHI-NVR1108HS-W-S2 8 Channel WiFi Network Video Recorder NVR

Name: Dahua DHI-NVR1108HS-W-S2 8 Channel WiFi Network Video Recorder NVR
Brand: Dahua
SKU: DHINVR1108HSWS2
Price: 21900.0 INR
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: DHINVR1108HSWS2

Available:

Only 17 items in stock

17 items in stock

In stock

Pre-order

Out of stock

Notes : ASK BEFORE ORDER

Dahua DHI-NVR1108HS-W-S2

8 Channel Compact 1U 1HDD Network Video Recorder

Key Features

New 4.0 user interface.
One-click wireless pairing to IPCs.
Automatic pairing to IPC in 120 s after boot-up under undisturbed conditions.
Automatic cascading of IPCs for long-distance surveillance.
4–ch@1080P (25FPS), self-adaptive decoding capability.
Supports mainstream cameras of ONVIF protocol.
Smart H.265/Smart H.264
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P.
Remote configuration and management of IPCs, such as setting
parameters, acquiring information and upgrading IPCs of the same
model in batches.
DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext
TransferProtocol), NTP (Network Time Protocol) and DDNS (Dynamic
DomainName System).

Rs. 21,900.00

~~Rs. 25,999.00~~

Quantity

Want it delivered by

Data Sheet

Video

PDF

view pdf

Return & Refund Shipping Info

Description
Reviews

Series Overview

With its embedded Wi-Fi module, Dahua's Lite Series Wireless Recorder supports the AP function, and automatically detects and connects with Dahua wireless cameras. It has two antennas that together produce strong wireless signals, and has IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi which allows it to cover a wider area. This NVR also supports the access of IP cameras, making installation more convenient.Without the limitation of network cables, the wireless recorder combined with the Dahua wireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries.

Functions

New User Interface

Highly user friendly, the new web interface and GUI have a minimalist flat design, that makes navigating the system much easier. The functional modules have also been arranged to be clearer and easier to understand.

Automatic Wireless Pairing

In just 120 seconds, the wireless NVR automatically pairs with the wireless IPC after the system starts up, allowing you to work faster and more efficiently.

Wireless Cascading

The wireless NVR automatically cascades IPCs for long-distance surveillance.

System

Main Processor

Industrial-grade embedded processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Audio and Video

Access Channel

8 channels

Network Bandwidth

Wired mode: 40 Mbps incoming, 40 Mbps recording and 20 Mbps outgoing
Wireless mode: 16 Mbps incoming, 16 Mbps recording

Resolution

6 MP; 5 MP; 4 MP; 3 MP; 2 MP; 720p; D1

Decoding Capability

1-channel 6 MP@25 fps; 1-channel 5 MP@25 fps; 2-channel 4 MP@25 fps; 2-channel 3 MP@25 fps; 4-channel 1080p@25 fps

Video Output

1 × VGA, 1 × HDMI (simultaneous)

Multi-screen Display

1, 4, 8, 9 views

Third-party Camera Access

Onvif

Compression Standard

Video Compression

Smart H.265; H.265; Smart H.264; H.264; MJPEG

Audio Compression

PCM; G711A; G711U; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server; P2P

Mobile Phone Access

Android; iOS

Interoperability

ONVIF (profile T/S/G); CGI; SDK

Browser

Chrome; IE 9 or later; Firefox

Wi-Fi

Wi-Fi Standard

802.11b/g/n

Frequency Range

2400–2483.5 MHz

Transmitter Power (EIRP)

CE EIRP:

≤20dBm@2400-2483.5MHz

FCC output power:

≤30dBm@2400-2483.5MHz

Recording Playback

Multi-channel Playback

Up to 8 channels

Record Mode

Manual record; alarm record; motion detection record; schedule record

Storage Method

Local HDD and network

Backup Method

USB device

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (motion detection)

Alarm

General Alarm

Motion detection; privacy masking; video loss; PIR alarm

Anomaly Alarm

Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception

Alarm Linkage

Recording; snapshot; buzzer; log; preset; tour

Port

Audio Input

Audio Output

HDD Interface

1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature

USB

1 front USB 2.0 port, 1 rear USB 2.0 port

HDMI

VGA

Network Port

1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

General

Power Supply

12 VDC, 1.5 A

Power Consumption

Total output of NVR is ≤ 10 W (without HDD)

Net Weight

0.824 kg (1.82 lb)

Gross Weight

1.56 kg (3.44 lb)

Product Dimensions

260.3 mm × 247.3 mm × 44.7 mm (10.25" × 9.74" × 1.76") (W × L × H)

Packaging Dimensions

372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13") (W × L × H)

Operating Temperature

–10 °C to + 45 °C (+ 14 °F to +113 °F)

Operating Humidity

10%–93% (RH)

Installation

Rack or desktop

Certifications

CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE-RED: EN301489-1; EN 301489-17; EN300328; EN300328; EN62311; FCC ID: 47 CFR PART 15 SUBPART C
