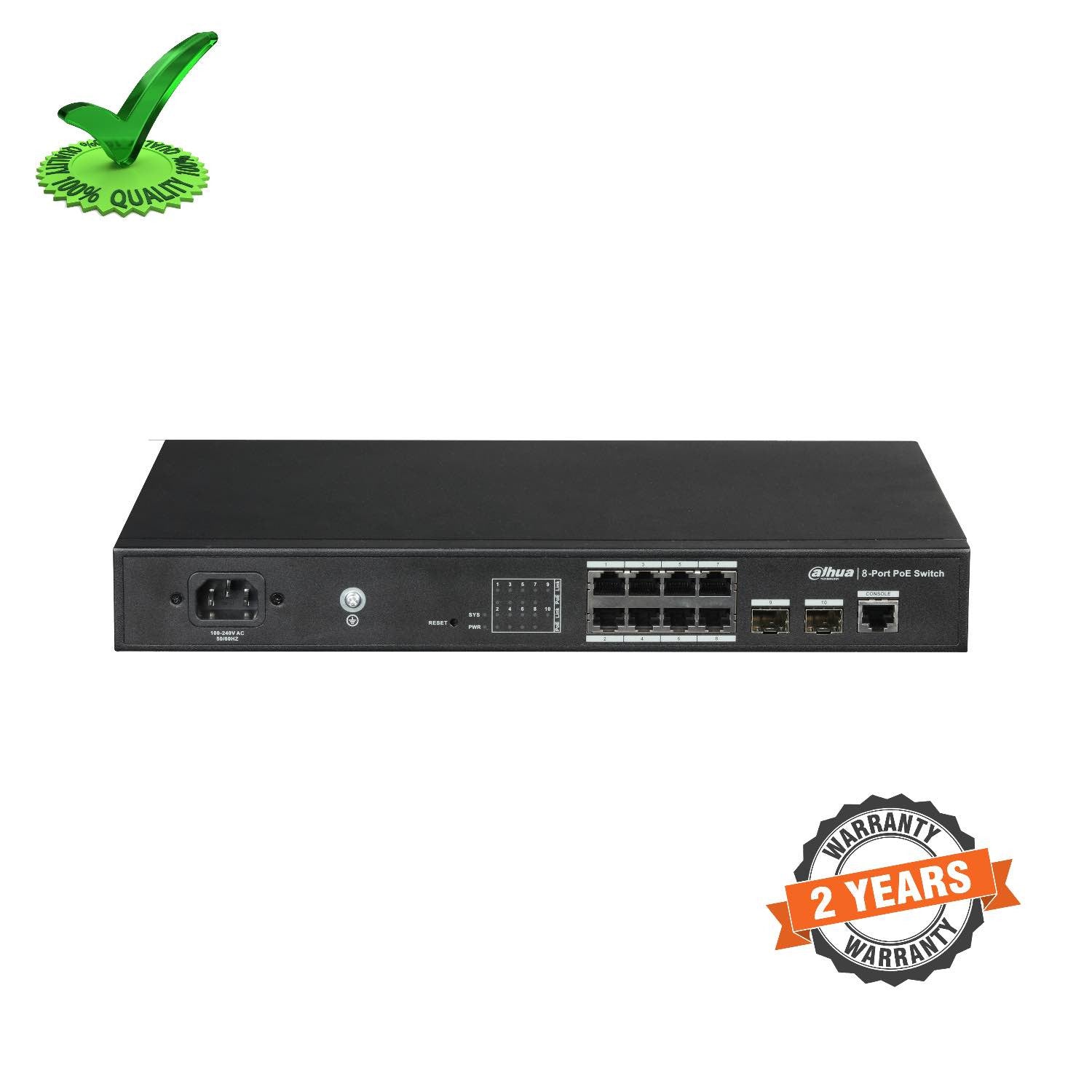

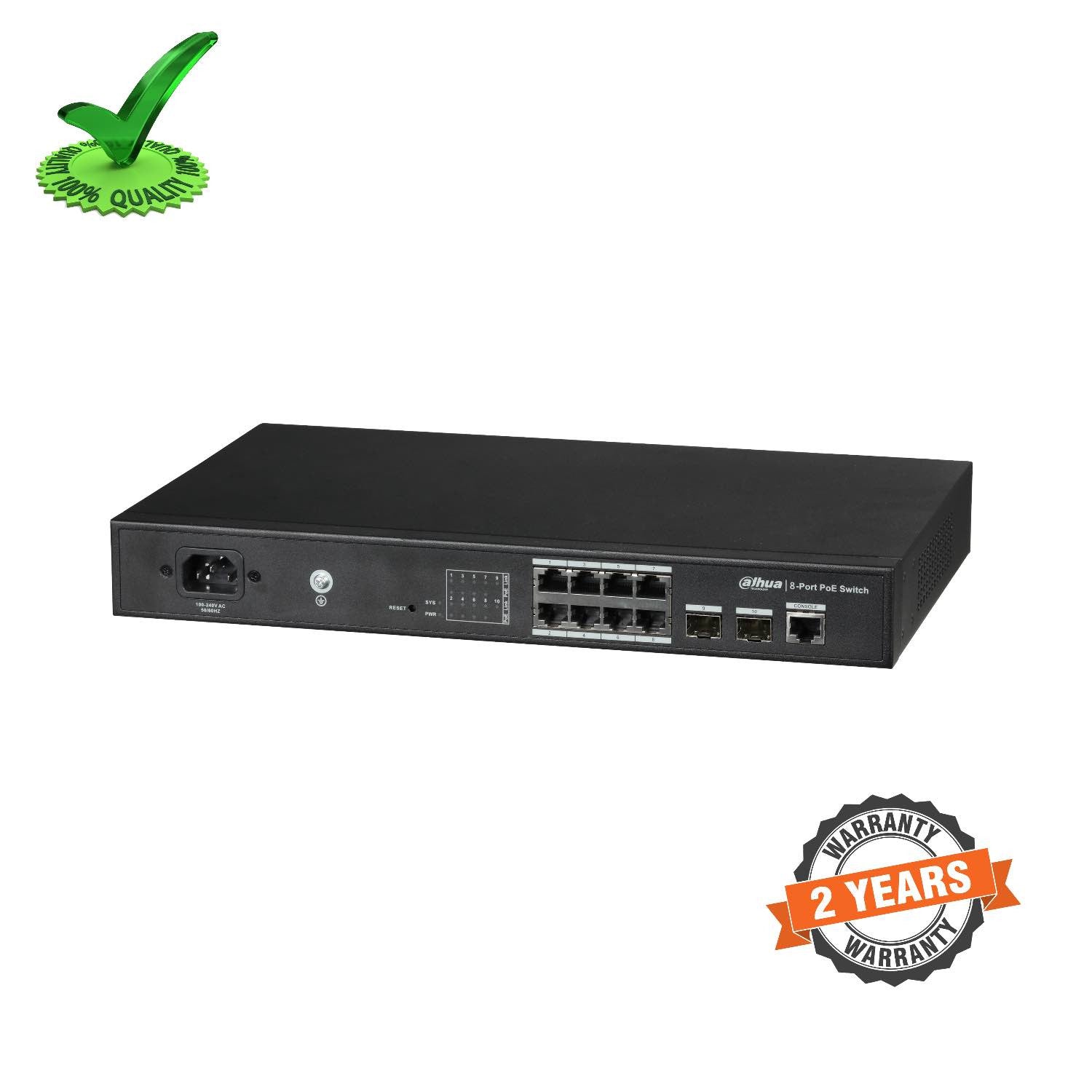

Dahua DH-PFS4210-8GT-150 8-Port PoE Gigabit Managed Switch

Dahua DH-PFS4210-8GT-150 8-Port PoE Gigabit Managed Switch

Technical Specification

Model DH-PFS4210-8GT-150

• Ethernet Port 8*10/100/1000 Base-T (PoE power supply), 2*100/1000 Base-X
• RS232 : Serial Console 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
• PoE Power Consumption : Each power ≤30W, Total≤150W
• PoE Protocol : IEEE802.3af, IEEE802.3at
• Switching Capacity : 20Gbps
• Packet Forwarding Rate : 14.88Mpps
• Packet Buffer Memory : 4Mb
• Application Humidity : 5%~95%
• Power : AC100-240V, 50/60Hz
• Lightning Protection : Common Mode 2KV, Differential Mode 1KV
• Working Temperature : 0°C~45°C
• Dimension(W×D×H) : 340mm x200mm x44mm

Accessories

Model

• PFT3950 : 1.25G 850nm,500m,LC, Multi-mode
• PFT3960 : 1.25G 1310/1550nm,20km,LC, Single-mode
• PFT3970 : 1.25G 1550/1310nm,20km,LC, Single-mode

Service Characteristics

• System : Username / password: admin/admin, IP Address :192.168.1.110/24
• PoE Budget : Total≤150W
• MAC Table : 8K
• NTP : Support
• DHCP : Support DHCP client/server, Support DHCP snooping
• VLAN : 802.1Q Standard VLAN
• Port Aggregation : Manual aggregation/LACP
• Mirroring : Many-to-one port mirroring
• Flow Control : Half-duplex based on back pressure type control;Full duplex based on PAUSE frame
• Multicast : IGMP Snooping v1/v2/v3
• Security Features : Users management, SSH, HTTPS, SNMP v1/v2/, v3, ROMN, ACL, IP source guard, ARP inspection,, 802.1x, loop protection, Spanning tree Support STP/RSTP/MSTP
• LLDP : Support
• MAC Table : Support MAC address table configuration
• QoS : Support QoS base on CoS/DPL/PCP/DEI, Each port support 8 output queue, Support port shaping, Support port tag remarking, Support QoS base on DSCP
• System Maintenance : Support the configuration file upload/download, Support the updated packet upload, System log
• Network Management : WEB(http protocol), serial, SNMP


Extra Information

• SKU: DHPFS42108GT150
• Warranty: 2 Years
• Brand: Dahua
• Technology: IP
• Product Type: POE
• PDF: View PDF
