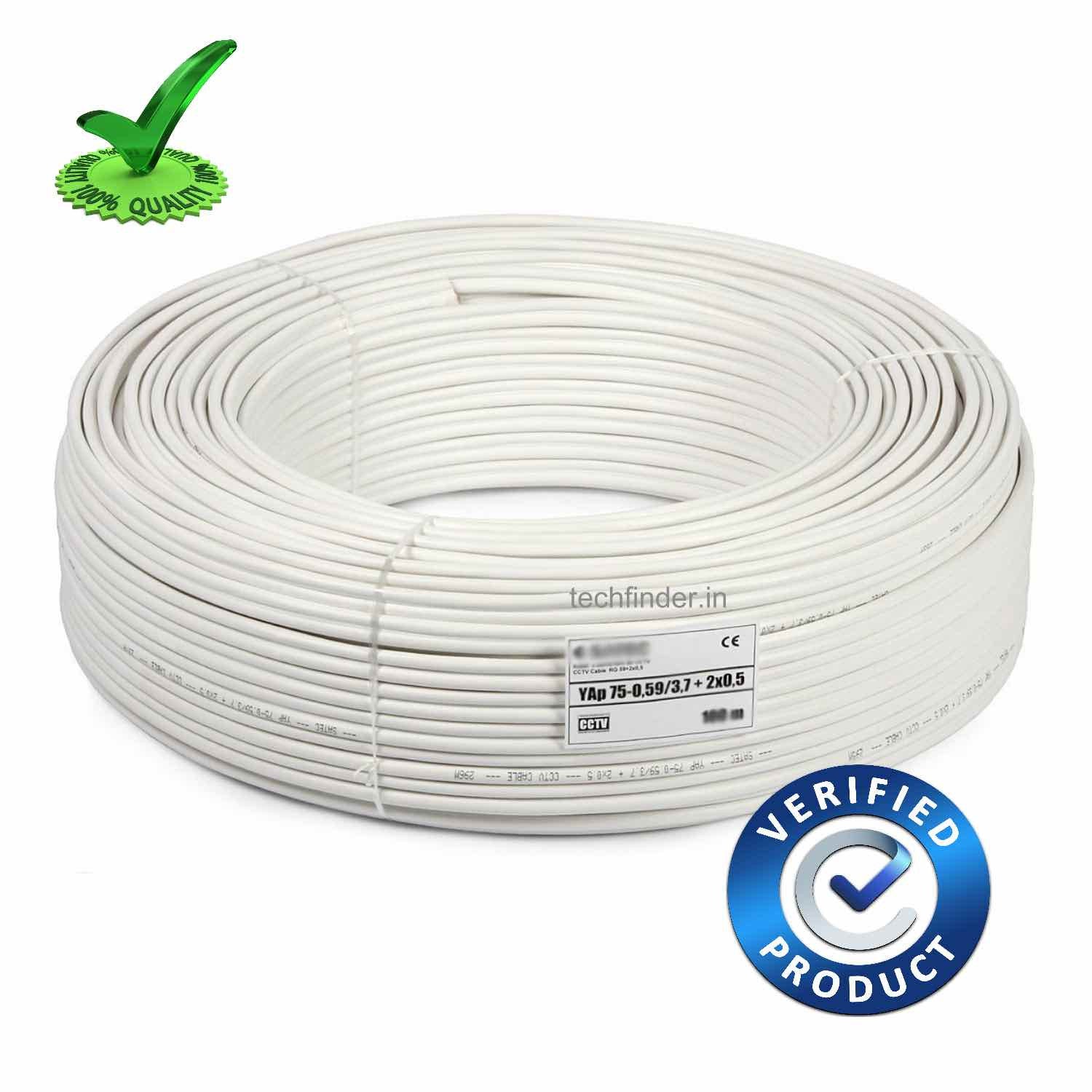

2+1 Co-Oxial Economy CCTV Cable 100mtr Coil

Properties

CCTV cables are designed to optimize the quality of video signals. The dense tin coated copper screen ensures complete elimination of
EMI/RFI from video signals and also provides reduced DC resistance ground path. The multi stranded construction offers better flexibility
and reduced bending radius.

Cable Construction

Screened Core for Video signal
Conductor : The central conductor is made of fine wires tin coated electrolytic grade copper
Insulation : The insulation provided over the conductor is with high dielectric strength and low capacitance
Screen : Annealed tin coated copper 85% coverage approx
Sheath : Black colored PVC

Power Cores

Conductor : The central conductor is made of fine wires tin coated electrolytic grade copper
Insulation : The insulation provided over the conductor is of PVC with high dielectric strength

Seperator : PETP tape
Sheath : PVC
Cable Colour : White. Black with UV resistance to ASTM G 154

Extra Information

• SKU: chinacopper
• Warranty: 1 Year
• Brand: VisionXP
• Technology: Analogue
• Product Type: Co-Oxial Cable
• Cable Type: 2+1 Economy Cable
• PDF: View PDF
