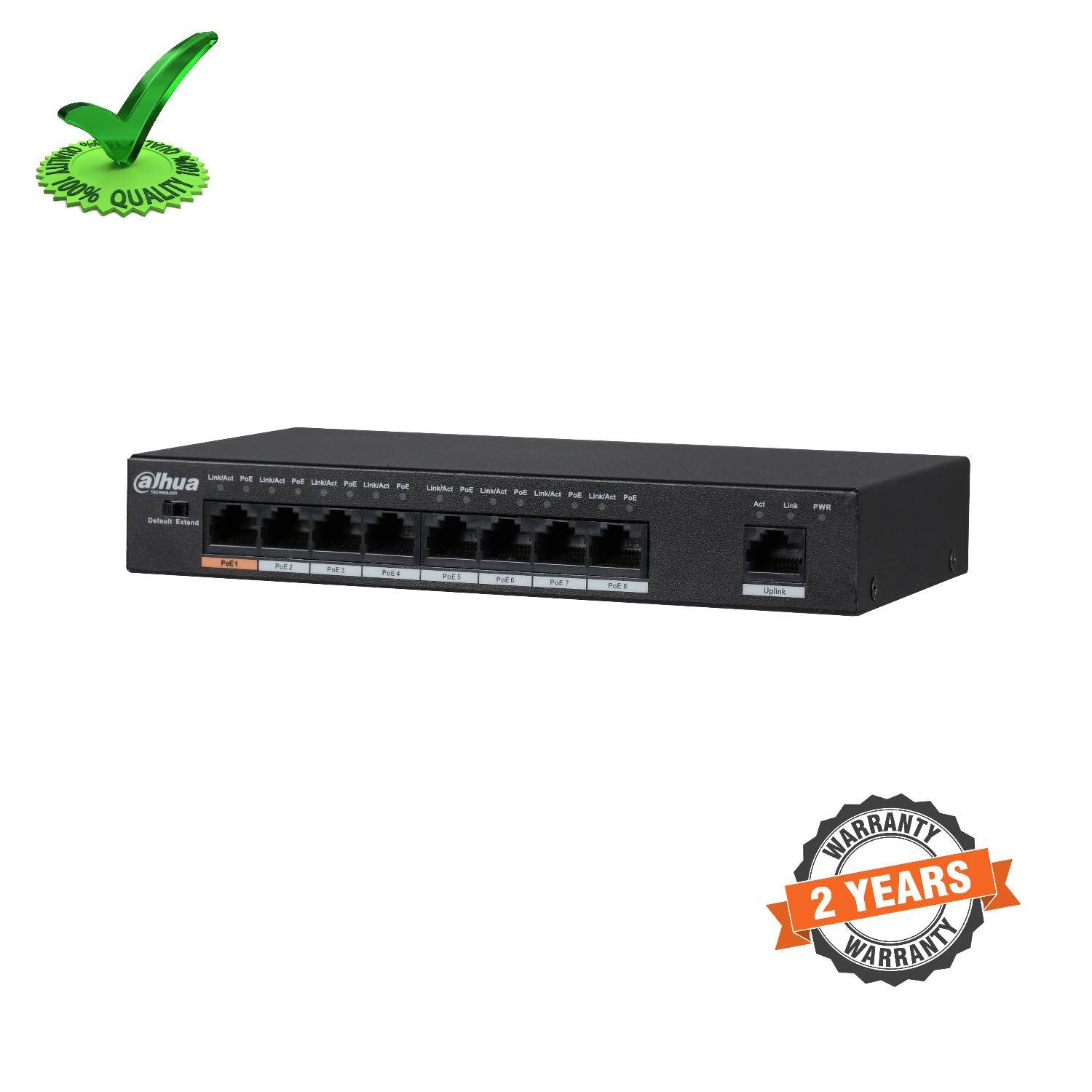

Dahua DH-PFS3009-8ET-96 8-Port PoE Switch

Dahua DH-PFS3009-8ET-96 8-Port PoE Switch

Product Overview

• DH-PFS3009-8ET-96 is an 8-port fast ethernet switch, which supports 250 meters long distance PoE transmission. It provides 8*10/100Mbps PoE ports and 1*100 Mbps uplink port. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.

Technical Specification

Model DH-PFS3009-8ET-96

• Ethernet Port : 1*10/100 Base-T, 8*10/100 Base-T (PoE power supply)
• PoE Power Consumption : Port1≤60W, Port2-8≤30W, Total≤96W
• PoE PIN Assignment : 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• PoE Power Management : Support
• PoE Protocol : IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
• Switching Capacity : 1.8Gbps
• Packet Forwarding Rate : 1.34Mpps
• Packet Buffer Memory : 768Kb
• MAC Table Size : 2K
• Flow Control : Enable by default
• Application Humidity : 5%~95%
• Power : DC48~57V power adapter
• Lightning Protection : Common Mode 4KV
• Differential Mode : 2KV
• ESD Protection : Air Discharge 8KV
• Contact Discharge : 6KV
• Working Temperature : -10°C~55°C
• Weight : 490g
• Dimension(W×D×H) : 190mm×100mm×30mm

Extra Information

• SKU: DHPFS30098ET96
• Warranty: 2 Years
• Brand: Dahua
• Technology: IP
• Product Type: POE
• PDF: View PDF
