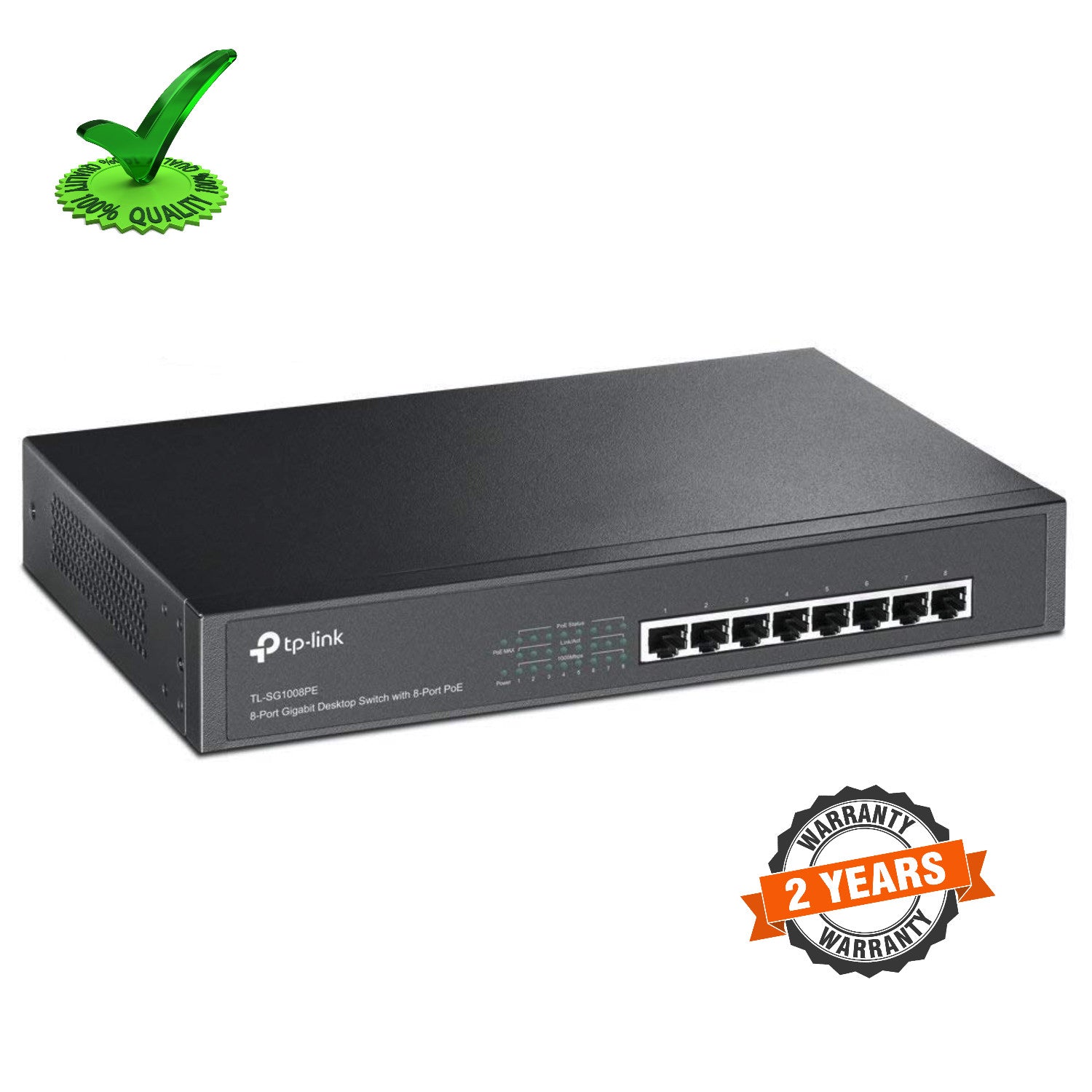

Tp-Link TL-SG1008PE 8 Port Gigabit POE Switch for Ip Camera

Tp-Link TL-SG1008PE 8 Port POE Gigabit Switch for Network Camera

Product Specification :

• Power Over Ethernet : All 8 Auto-Negotiation RJ45 ports of the switch support Power over Ethernet Plus(PoE+) function. These PoE+ ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
• Overload Arrangement : TL-SG1008PE has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 126W, a priority will be arranged among the PoE+ ports, then the system will cut off the power of the lowest-priority port.
• Port Priority Function : Priority (port 1>port 2>port 3>port 4>port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W), the system power is 120W in total (PoE+ max LED is red ). If there is an additionalPD inserted to Port 3 with 25W then the system will cut off Port 7 to protect the system, this means Port 1, 2 and 4 will use 30W, and Port3 will use 25W, and no power will be supplied to Port 7.
• Easy to Use : TL-SG1008PE is easy to install and use. It requires no configuration and installation. With Desktop/Rackmount design, outstanding performance and quality, the TP-LINK TL-SG1008PE 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE is a great selection for expanding your home or office network.

Hardware Features & Performance

• Model No. : TL-SG1008PE
• Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p
• Network Ports : 8*10/100/1000Mbps RJ45 ports with 8 PoE ports
• Network Media (Cable) : 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100_ STP (maximum 100m), 100Base-TX: UTP category 5, 5e or above cable (maximum 100m) EIA/TIA-568 100_ STP (maximum 100m), 1000Base-T: UTP category 5, 5e cable or above cable(maximum 100m) EIA/TIA-568 100_ STP (maximum 100m)
• Auto Negotiation : YES
• Auto MDI/MDIX : YES
• Forwarding Mode : Store and Forward
• Switch Cpacity : 16Gbps
• MAC Address Table : 4K, Auto-Learning, Auto-aging
• Flow Control : YES
• Backpressure : YES
• Fan Quantity : 1
• LED : Power, 1000Mbps, Link/Act, PoE Status, PoE MAX
• Dimensions : 11.6*7.1*1.7 in. (294*180*44 mm)
• Certifications : CE,FCC
• Operating Temperature : 0°C ~40 °C (32 °F ~104°F )
• Storage Temperature : -40 °C ~70 °C (-40 °F ~158°F )
• Operating Humidity : 10%~90% non-condensing
• Storage Humidity : 5%~90% non-condensing
• Jumbo Frame : 16KB

Extra Information

• SKU: TLSG1008PE
• Warranty: 2 Years
• Brand: TP-Link
• Technology: IP
• Product Type: POE
• PDF: View PDF
