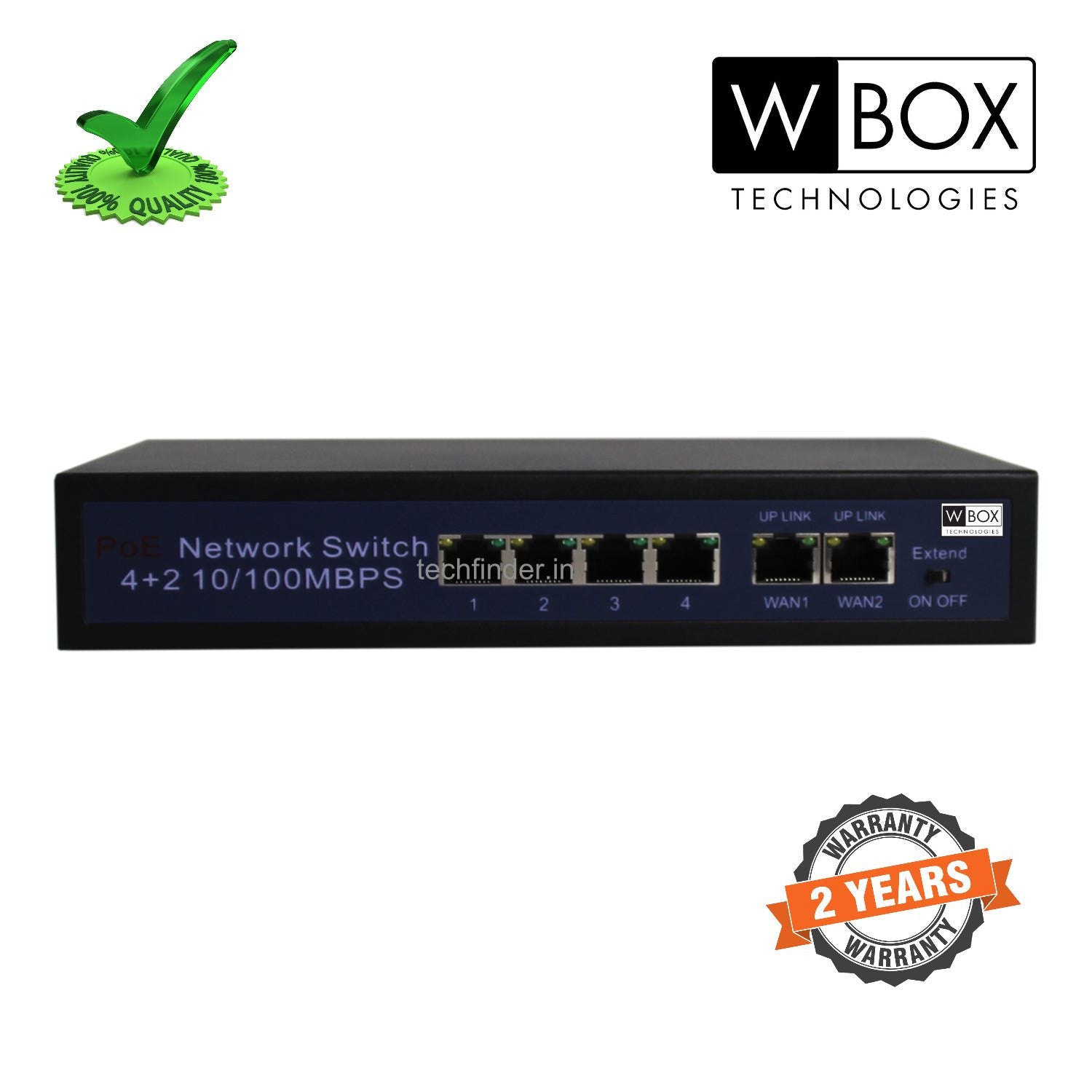

W Box WBC0E0604POE 4Port 60w 2 Up Link 200mtr extension POE Switch

W Box WBC0E0604POE 4port 60w 2uplink 200mtr extension 100mbps POE switch

W Box ethernet unmanaged POE switches provide quick, easy and reliable network connectivity for residential, commercial, education, health and public safety sector. These POE switches enable transmission of data and power over a single ethernet cable to IP cameras, IP telephones, access points, video door phones and other networking devices. The plug and play installation make it quick and hassle free in affordable budget.

The rugged and compact built of the switches provides flexibility to install the switches in surveillance rack, network rack, wall mount and on the desk.

Specifications

• Model : WBC0E0604POE
• Power Budget : 60W

Protection level

• Mould : +-4KV

Network Connector

• Network Port : 1~4 port :10/100Mbps PoE Ethernet LAN port Up Link1/Up Link2 port:10/100Mbps Ethernet Up Link port
• Transmission Distance : Extend switch is ON, state:(1~4 port:): up to 200m
• Transmission Medium : Cat5/5e/6 standard network cable

Network Switch

• Network Standard : IEEE802.3/10BASE-T Ethernet, IEEE802.3u/100BASE-TX Ethernet, IEEE802.3x Flow Control, IEEE802.3az
• Maximum Frame Size : 1536 Bytes
• Backplane bandwidth : 10/100mbps
• PoE Standard : IEEE802.3af/at
• PoE Power Consumpon : af,at Adapve (every port)

LED Status Indicator

• PoE Ethernet : When the PoE power supply is used, 1-4 LEDs are green, When accessing Ethernet, ports 1-4 are yellow

Environmental

• Working temperature : 0°C~55°C
• Storage temperature : -40°C~70°C
• Working humidity : 10%-90% non-condensing
• Storage humidity : 5%-95% non-condensing

Mechanical

• Dimension (L x W x H) mm :220*140*40
• Material : SECC
• Color : Dark grey

Stability

• MTBF : >30000h

Extra Information

• SKU: WBC0E0604POE
• Warranty: 2 Years
• Brand: W Box
• Technology: IP
• Product Type: POE
