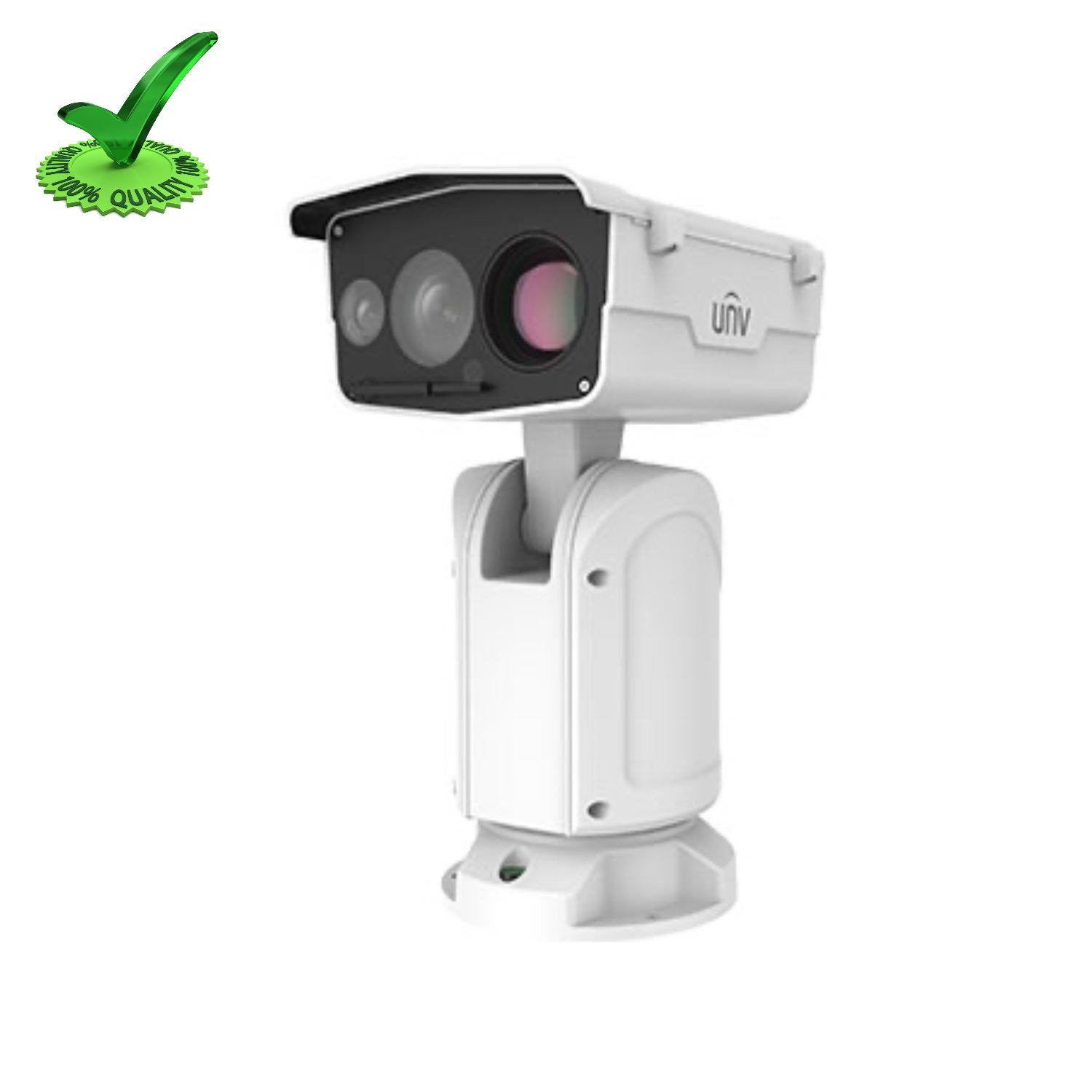

Uniview TIC7632EL-F75-2X55G 2MP IP Network Bullet Camera

Specifications

Optical Module

• Image sensor : 1/1.8", progressive scan, 2.0 megapixel, CMOS
• Lens : 6~ 330mm, AF automatic focusing and motorized zoom lens
• Digital Zoom : 16
• Optical Zoom : 55x
• Angle of View (H) : 58.5°~ 1.7°
• Angle of View (V) : 35.0°~ 1.0°
• Angle of View (O) : 72.0°~ 2.0°
• Shutter : Auto/Manual, shutter time: 1~1/100000 s
• Minimum Illumination : Colour: 0.0005 Lux (F1.3, AGC ON) 0 Lux with IR
• Iris : Auto/Manual; F1.3 ~ F4.6
• Day/Night : IR-cut filter with auto switch (ICR)
• Digital noise reduction : 2D/3D DNR
• S/N : >55dB
• VF laser : Up to 800m(2624.7ft)
• Defog : Optical Defog & Digital Defog
• WDR : 120dB

Thermal Module

• Sensor type : Vanadium Oxide Uncooled Focal Plane Arrays
• Max. Resolution : 384*288
• Video format : 720P(1280*720), Max 25fps
• Pixel size : 17μm
• Response waveband : 8~14μm
• NETD : ≤50mk
• Lens(focal length) : 75mm
• Angle of View (H) : 5.0°
• Angle of View (V) : 4.0°
• Angle of View (O) : 6.1°
• Focus : Auto/Semiautomatic/Manual
• Palette : Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce
• Detection Distance : Vehicle: 5220m (target size 4mx1.4m); human: 2093m (target size 1.8mx0.5m);
• Recognition Distance : Vehicle: 1305m (target size: 4mx1.4m); human: 523m (target size: 1.8mx0.5m);
• Identification Distance : Vehicle: 746m (target size: 4mx1.4m); human: 299m (target size: 1.8mx0.5m);

Video

• Compression : Ultra265, H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main Profile, High Profile
• Frame Rate : Main Stream: 2MP (1920×1080): Max.60fps; Sub Stream: 2MP (1920×1080): Max.60fps; Third Stream: D1(720 x 576): Max.60fps; Fourth Stream: D1(720 x 576): Max.60fps; Fifth Stream: D1(720 x 576): Max.60fps;
• HLC : Supported
• BLC : Supported
• OSD : Up to 8 OSDs
• ROI : Up to 8 areas
• Privacy Mask : Up to 24 areas
• Motion Detection : Up to 4 areas

Events

• General Function : Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User  Authentication

Audio

• Audio Compression : G.711U, G.711A
• Two-way audio : Supported
• Suppression : Supported
• Sampling Rate : 8 KHZ

Storage

• Edge Storage : Micro SD, up to 256GB
• Network Storage : ANR,NAS(NFS)

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,  SNMP, QoS, RTMP
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API
• Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

• Pan Range : 360° (endless)
• Pan Speed : 0.1°/s ~ 140°/s
• Preset speed : 140°/s
• Tilt Range : -90° ~ 45°
• Tilt Speed : 0.1° ~ 40°/s
• Preset speed : 40°/s
• Number of Presets : 1024
• Patrol : Preset patrol, route patrol, recorded patrol
• Home Position : Supported

Interface

• Audio I/O : Audio cable1 Input: impedance 35kΩ; amplitude 2V [p-p] 1 Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O : 7/2
• Serial Port : 1 RS485
• Video Output : Supported(Thermal module)
• Network : 1 RJ45 10M/100M/1000M Base-TX Ethernet+1 100M/1000M SFP

General

• Power : DC 48V±25%、DC 24V±15%、AC 24V±25%
• Power consumption : Max 119W
• Dimensions (Φ × H) : 505.2mm × 280.1mm × 364.9mm (19.9" × 11.0" × 14.4")
• Weight : 15.09kg(33.27lb)
• Working Environment : -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment : -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
• Surge protection : 6KV
• Vandal Resistant : N/A
• Ingress Protection : IP66

Extra Information

• SKU: TIC7632ELF752X55G
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
