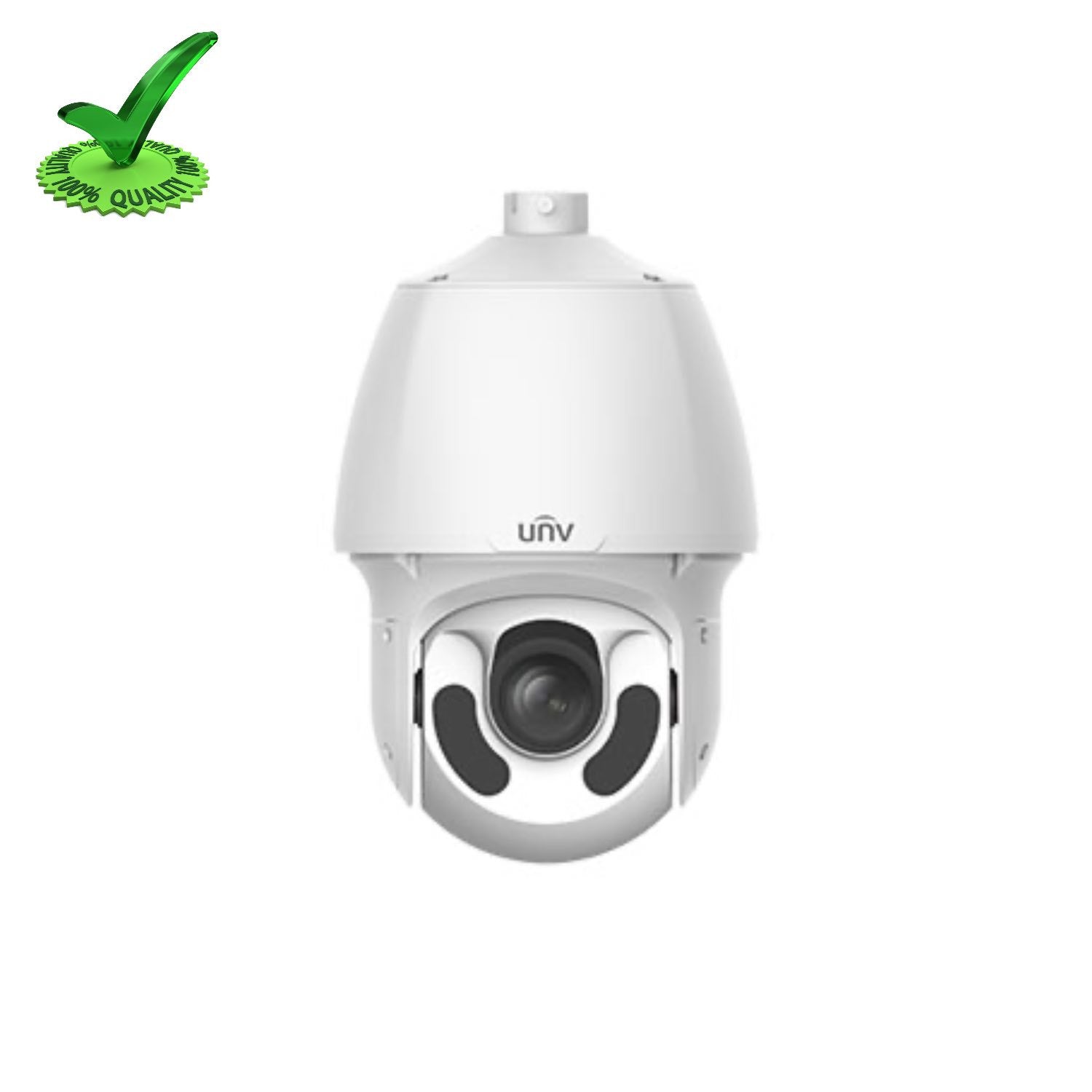

Uniview IPC6622SR-X33-VF 2MP IP Network Speed Dome Camera

Specifications

Camera

• Sensor : 1/2.8", 2.0 megapixel, progressive scan, CMOS
• Min. Illumination : Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR
• Day/Night : IR-cut filter with auto switch (ICR)
• Shutter : Auto/Manual, 1 ~ 1/100000s
• WDR : 120dB
• S/N : >52dB

Lens

• Lens : 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
• Digital Zoom : 16
• Optical Zoom : 33
• Iris : Auto; F1.5 ~ F4.0
• Angle of View (H) : 56.2° ~ 2.6°
• Angle of View (V) : 33.5° ~ 1.4°
• Angle of View (O) : 65.4° ~ 3.0°

Illuminator

• IR Range : Up to 150m (492 ft) IR range
• Wavelength : 850nm
• IR On/Off Control : Auto/Manual

Video

• Video Compression : Ultra 265, H.265, H.264, MJPEG
• Frame Rate : Main Stream: 2MP(1920*1080),Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps;  Third Stream: D1 (720*576), Max 60fps; Fourth Stream: D1 (720*576), Max 60fps; Fifth Stream: D1 (720*576), Max 60fps;
• Video Bit Rate : 128 Kbps~16 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• U-code : Support
• ROI : Support
• Video stream : Five streams
• OSD : Up to 8 OSDs
• Privacy Mask : Up to 24 blacks (Up to 4 blacks in the same picture)


• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction : 2D/3D DNR
• Flip : Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
• HLC : Support
• BLC : Support
• Defog : Digital Defog

Events

• Basic Detection : Motion detection, Audio detection, Tampering Alarm;
• General Function : Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User  Authentication

Audio

• Audio Compression : G.711U,G.711A
• Audio Bitrate : 64 Kbps
• Two-way Audio : Support
• Suppression : Support
• Sampling Rate : 8KHZ

Storage

• Edge Storage : Micro SD, up to 256 GB
• Network Storage : ANR,NAS(NFS)

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,  SNMP, QoS, RTMP, SSL/TLS
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host : Up to 32 users. 2 user levels: administrator and common user
• Security : Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP,  digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client : EZStation  EZLive Ezview
• Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Pan & Tilt

• Pan Range : 360° (endless)
• Pan Speed : 0.1°/s ~ 200°/s
• Preset speed : 300°/s
• Tilt Range : –15° ~ 90° (auto reverse)
• Tilt Speed : 0.1° ~ 200°/s
• Preset speed : 240°/s
• Number of Presets : 1024
• Patrol : Preset patrol, route patrol, recorded patrol
• Patrol Stay Time : 15s~1800s
• Preset Image Freeze : Support
• Home Position : Support

Interface

• Audio I/O : 1/1
• Alarm I/O : 2/1
• Serial Port : 1 RS485
• Built-in Mic : N/A
• Built-in Speaker : N/A
• WIFI : N/A
• Network : 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output : 1 BNC

Certification

• EMC : FCC Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013
• Safety : IEC 62368-1 EN 62368-1 UL 60950-1
• Environment : CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• Protection : Ingression protection: IP66 (IEC 60529-2013)

General

• Power : AC 24V±25%, DC 24V±25%, PoE (PSE Required)
• Power consumption : Max 48W
• Power Interface : Wires with cold-pressed terminal
• Dimensions (Ø x H) : Ø227 x 384.8mm (Ø8.9” x 15.1”)
• Weight : 5.3kg(11.68lb)
• Working Environment : -40°C ~65°C (-40°F ~ 149°F)，≤95%RH
• Storage Environment : -40°C ~70°C (-40°F ~ 158°F)，≤95%RH
• Surge protection : 6KV
• Vandal Resistant : N/A
• Ingress Protection : IP66
• Reset Button : Support

Extra Information

• SKU: IPC6622SRX33VF
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
