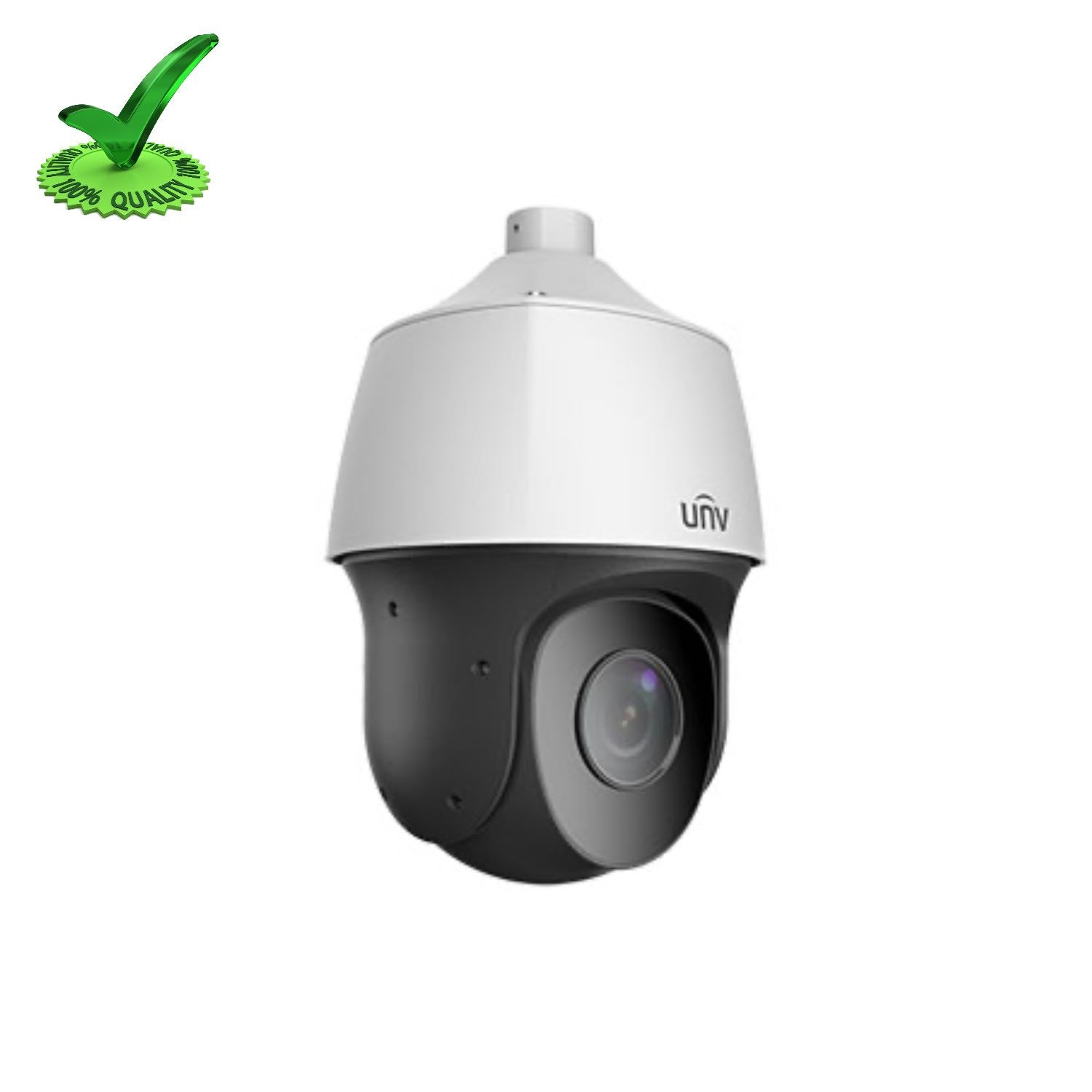

Uniview IPC6612SR-X25-VG 2MP IP PTZ Network Dome Camera

Uniview IPC6612SR-X25-VG 2MP IP PTZ Network Dome Camera Best Price

Specification

Camera

• Sensor : 1/2.8", 2.0 megapixel, progressive scan, CMOS
• Min. Illumination : Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR
• Day/Night : IR-cut filter with auto switch (ICR)
• Shutter : Auto, 1 ~ 1/100000s
• WDR : 120dB
• S/N : >52dB

Lens

• Lens type : 5~ 125mm, AF automatic focusing and motorized zoom lens
• Optical Zoom : 25
• Iris : Autol; F1.5 ~ F3.0
• Angle of View (H) : 53.7° ~ 2.8°
• Angle of View (V) : 31.8° ~ 1.6°
• Angle of View (O) : 66.1° ~ 3.3°

Illuminator

• IR Range : Up to 150m (492 ft) IR range
• Wavelength : 850nm
• IR On/Off Control : Auto/Manual

Video

• Video Compression : Ultra 265, H.265, H.264, MJPEG
• Frame Rate : Main Stream: 2MP(1920*1080),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps;
• Video Bit Rate : 128 Kbps~16 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• U-code : Support
• ROI : Up to 8 areas
• Video stream : Triple streams
• OSD : Up to 8 OSDs
• Privacy Mask : 24 areas, up to 4 blacks in the same picture


• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction : 2D/3D DNR
• Smart IR : Support
• Flip : Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
• HLC : Support
• BLC : Support
• Defog : Digital Defog

Events

• Basic Detection : Motion detection, Audio detection, Tampering Alarm;
• Auto-tracking : Support later
• General Function : Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User  Authentication

Audio

• Audio Compression : G.711U,G.711A
• Audio Bitrate : 64 Kbps
• Two-way Audio : Support
• Suppression : Support
• Sampling Rate : 8KHZ

Storage

• Edge Storage : Micro SD, up to 256 GB
• Network Storage : ANR,NAS(NFS)

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,  SNMP, QoS, RTMP,SSL/TLS
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API,SDK
• User/Host : Up to 32 users. 2 user levels: administrator and common user
• Security : Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP,  digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client : EZStation  EZLive Ezview
• Web Browser : Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

• Pan Range : 360° (endless)
• Pan Speed : 2°/s ~ 75°/s
• Preset speed: 180°/s
• Tilt Range : –15° ~ 90° (auto reverse)
• Tilt Speed : 2° ~ 75°/s
• Preset speed: 80°/s
• Number of Presets : 1024
• Patrol : Preset patrol, route patrol, recorded patrol
• Patrol Stay Time : 15s~1800s
• Preset Image Freeze : Support
• Home Position : Support

Interface

• Audio I/O : 1/1
• Alarm I/O : 2/1
• Serial Port : 1 RS485
• Built-in Mic : N/A
• Built-in Speaker : N/A
• WIFI : N/A
• Network : 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output : N/A

Certification

• EMC : FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013
• Safety : IEC 62368-1 EN 62368-1 UL 60950-1
• Environment : CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• Protection : Ingression protection: IP66 (IEC 60529-2013)

General

• Power : DC12V±10% , PoE+ (IEEE802.3 at)
• Power consumption: Max 25W
• Power Interface : Ø 5.5mm coaxial power plug
• Dimensions (Ø x H) : Ø220 x 369mm (Ø8.7” x 14.5”)
• Weight : 3.3kg(7.26lb)
• Working Environment : -40℃~65℃(-40°F ~ 149°F)，≤95%RH
• Storage Environment : -40℃~70℃(-40°F ~ 158°F)，≤95%RH
• Surge protection : 6KV
• Vandal Resistant : N/A
• Ingress Protection : IP66
• Reset button : Support

Extra Information

• SKU: IPC6612SRX25VG
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
