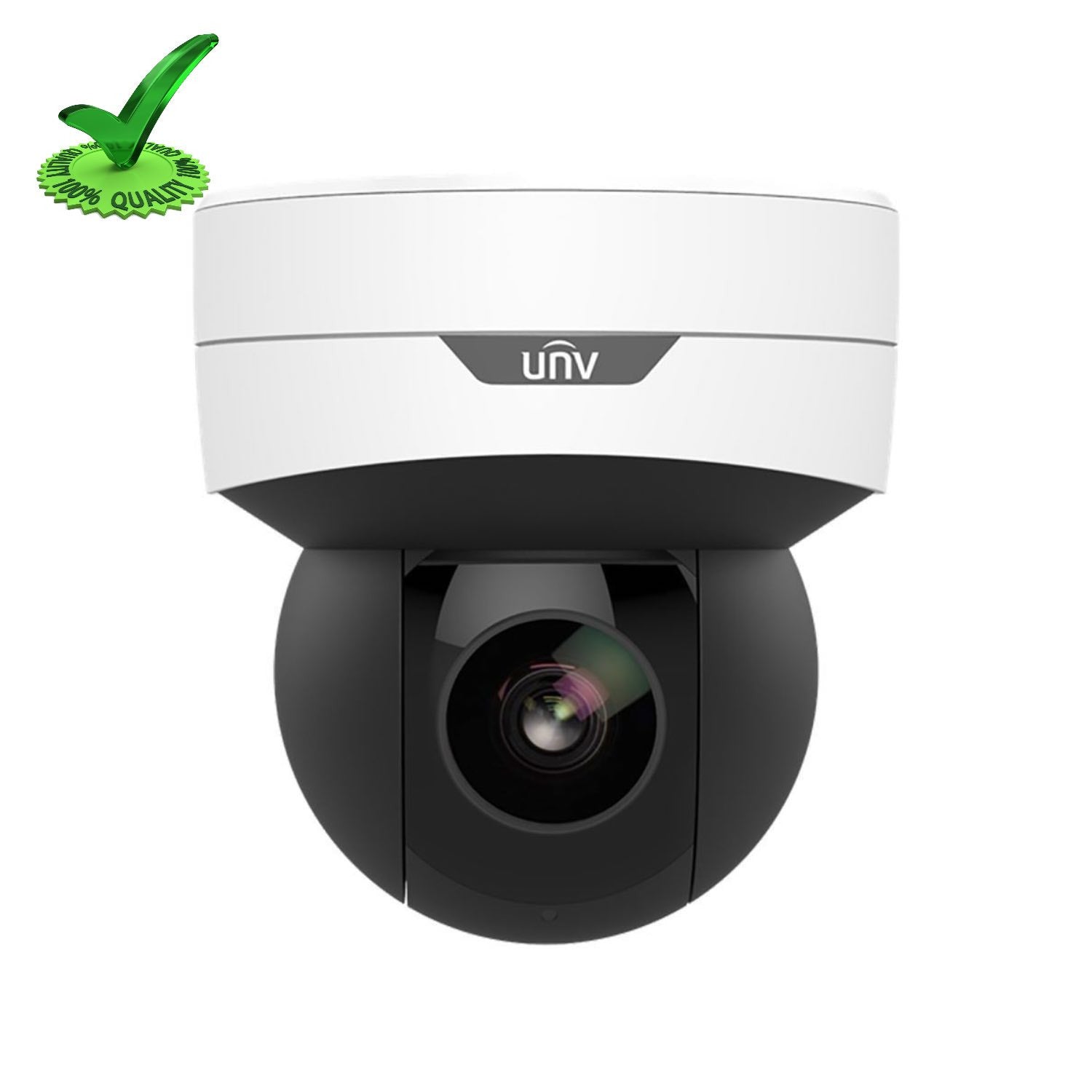

Uniview IPC6415SR-X5UPW 5MP IP network IR Dome Camera

Specification

Camera

• Sensor : 1/2.7" progressive scan, 5.0 megapixel, CMOS
• Lens : 2.7~13.5mm，AF automatic focusing and motorized zoom lens
• Angle of View (H) : 27.9°~98.3°
• Angle of View (V) : 20.6°~70.3°
• Angle of View (O) : 30.0°~136.9°
• Shutter : Auto/Manual, shutter time: 1 s ~ 1/100000 s
• Minimum Illumination : Colour: 0.002 lux (F1.2,AGC ON) 0 lux with IR
• Iris : F1.2
• Day/Night : IR-cut filter with auto switch (ICR)
• Digital noise reduction : 2D/3D DNR
• S/N : >55 dB
• IR Range : UP to 30m (98ft)
• WDR : 120dB

Video

• Video Compression : Ultra 265,H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main Profile, High Profile
• Frame Rate : Main Stream:5M (2592*1944):Max. 30 fps;  Sub Stream: 720P (1280×720):Max. 30 fps;  Third Stream: D1 (720×576): Max. 30 fps
• BLC : Supported
• OSD : Up to 8 OSDs
• Privacy Mask : Up to 24 areas
• ROI : Up to 8 areas
• Motion Detection : Up to 4 areas


Smart

• General Function : Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP  Authentication, User Authentication

Audio

• Audio Compression : G.711
• Suppression : Supported
• Sampling Rate : 8 KHZ

Storage

• Edge Storage : Micro SD, up to 256 GB
• Network Storage : ANR

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x ,  SNMP, SSL
• Compatible Integration : ONVIF(Profile S, Profile G), API

Pan & Tilt

• Pan Range : 350°
• Pan Speed : 0.1°/s ~ 60°/s
• Preset speed: 60°/s
• Tilt Range : 0° ~ 90°
• Tilt Speed : 0.1° ~ 50°/s
• Preset speed: 50°/s
• Number of Presets  : 1024
• Home Position : Supported

Interface

• Alarm I/O : 1/1
• Serial Port : 1 RS485
• Network : 1 RJ45 10M/100M Base-TX Ethernet
• Built-in Mic : Supported
• Built-in Speaker : Supported
• WIFI : Supported

General

• Power : DC 12V±25%, PoE (IEEE802.3 at)
• Power consumption: Max 16W
• Dimensions (Ø x H) : Φ129mm×143mm(Φ5.07” x5.63”)
• Weight : 0.75kg(1.65lb)
• Working Environment : –10°C ~ +50°C (14°F ~ 122°F), Humidity:≤95% RH(non-condensing)
• Reset Button : Supported

Extra Information

• SKU: IPC6415SRX5UPW
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 5 Megapixel
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
